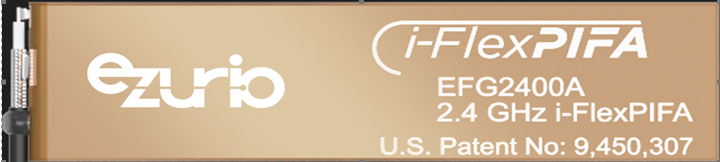

i-FlexPIFAEFG2400A3S-10MH4LEFG2400A3S-10MHF1

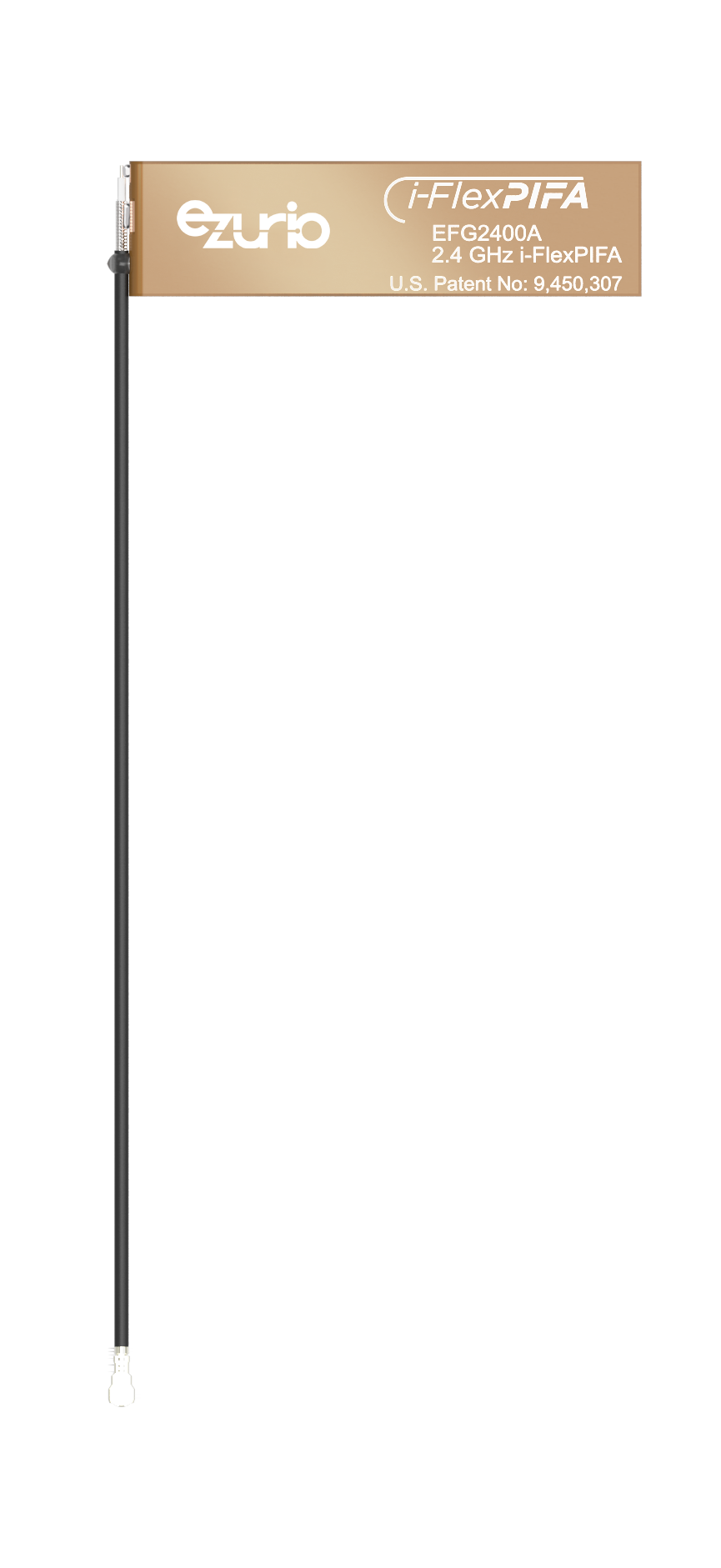

Features and Benefits

A black screen with a black background Description automatically generated
  • Quick and easy installation
  • Adhesive holds to surface during humidity exposure and hot/cold cycles
  • RoHS-compliant
  • Radiation direction maximized on adhesive side for outward-facing orientation
  • Patent Number: 9450307
  • Can be installed in the following ways:
  • On different non-conductive surfaces and thicknesses
  • On flat or curved surfaces
  • MIMO array element
  • On the front or top face of an enclosure interior (alternative placement to FlexPIFA)

Packaging Details

Option 1:

  • Pallet base dimensions: 120 cm x 80 cm x 14 cm
  • Full loaded dimensions: 120 cm x 80 cm x 164 cm
  • 20 master cartons (4 x 5 layout), 60 kg total
  • 32000 antennas per pallet

Option 2:

  • Pallet base dimensions: 120 cm x 80 cm x 14 cm
  • Full loaded dimensions: 120 cm x 80 cm x 133 cm
  • 16 master cartons (4 x 4 layout), 50.4 kg total
  • 25600 antennas per pallet
SPECIFICATIONS
Frequency (MHz)2400 - 2480
Peak Gain (dBi)+3.1
Average Efficiency (dB)> -2.1
VSWR (MHz)< 2.5:1
Impedance (Ω)50
PolarizationLinear
MECHANICAL SPECIFICATIONS
Antenna TypeInverted Ground Flexible Planar Inverted F Antenna (i-FlexPIFA)
Dimensions – mm (inches)40.9 x 11.0 x 2.9 (1.61 x 0.43 x 0.114)
Weight – g (oz.)1.13 (0.040)
ColorClear yellow
Adhesive3M 100MP
Connector Mating Height (max) – mmMHF1 (U.FL)2.5
MHF4L1.4
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature – °C (°F)-40 to +85°C (-40 to +185°F)
Material Substance ComplianceRoHS

Configuration

PART NUMBERCABLE LENGTHCONNECTOR
EFG2400A3S-10MHF1100 mmMHF1
EFG2400A3S-10MH4L100 mmMHF4L

Note: Specifications are based on the 100mm cable length, standard antenna version with MHF1 / U.FL connector.  Varying the cable length or type or connector will cause variations in these antenna specifications.

Mechanical Drawing

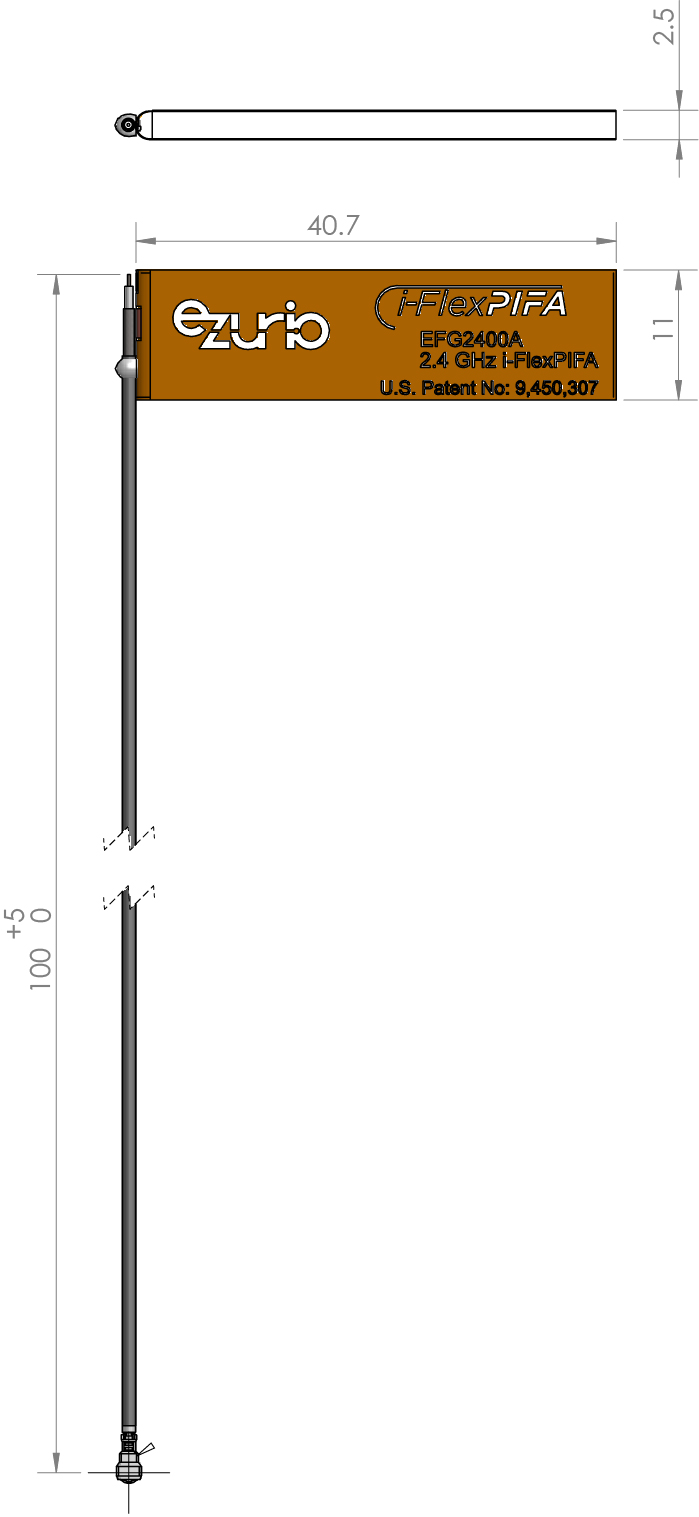

Physical Dimensions (in mm) of the EFG2400A with a 100mm Long Cable

Flat Surface Antenna Measurements

Flat surface measurements were performed with the antenna centered on a 1.5 mm-thick plate of polycarbonate.

VSWR

A graph of a graph Description automatically generated

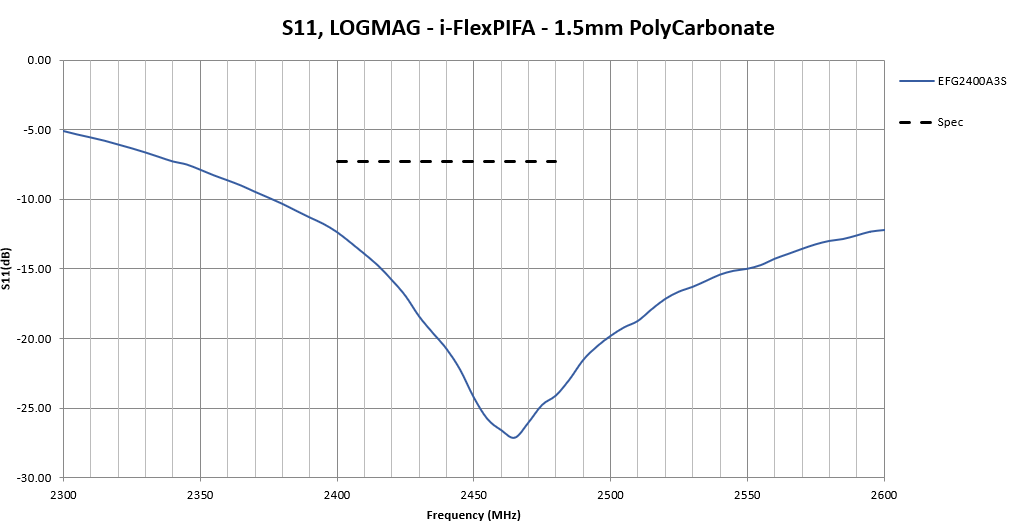

Return Loss

A graph with a line Description automatically generated

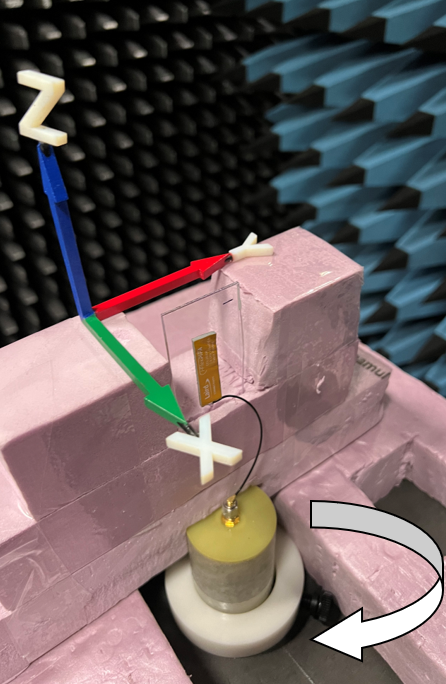

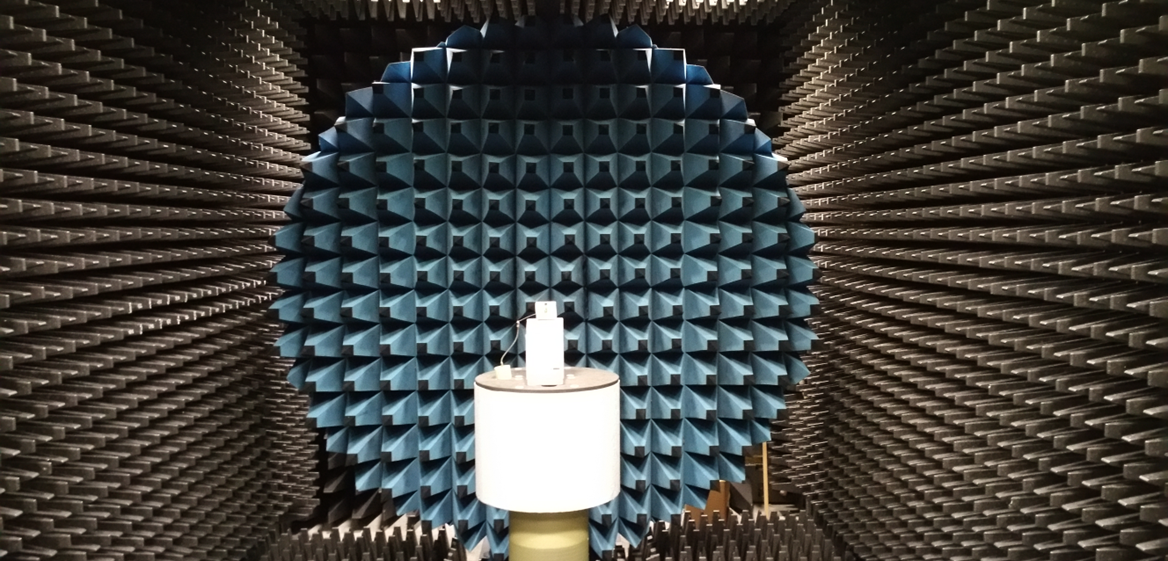

Antenna Chamber Test Setup

Antenna measurements such as VSWR and S11 were measured with an Agilent E5071C vector network analyzer. Radiation patterns were measured with a Rohde & Schwarz ZNB8-4PORT vector network analyzer in a Howland Company 3100 chamber equivalent. Phase center is nine inches above the Phi positioner.


Antenna Radiation Performance

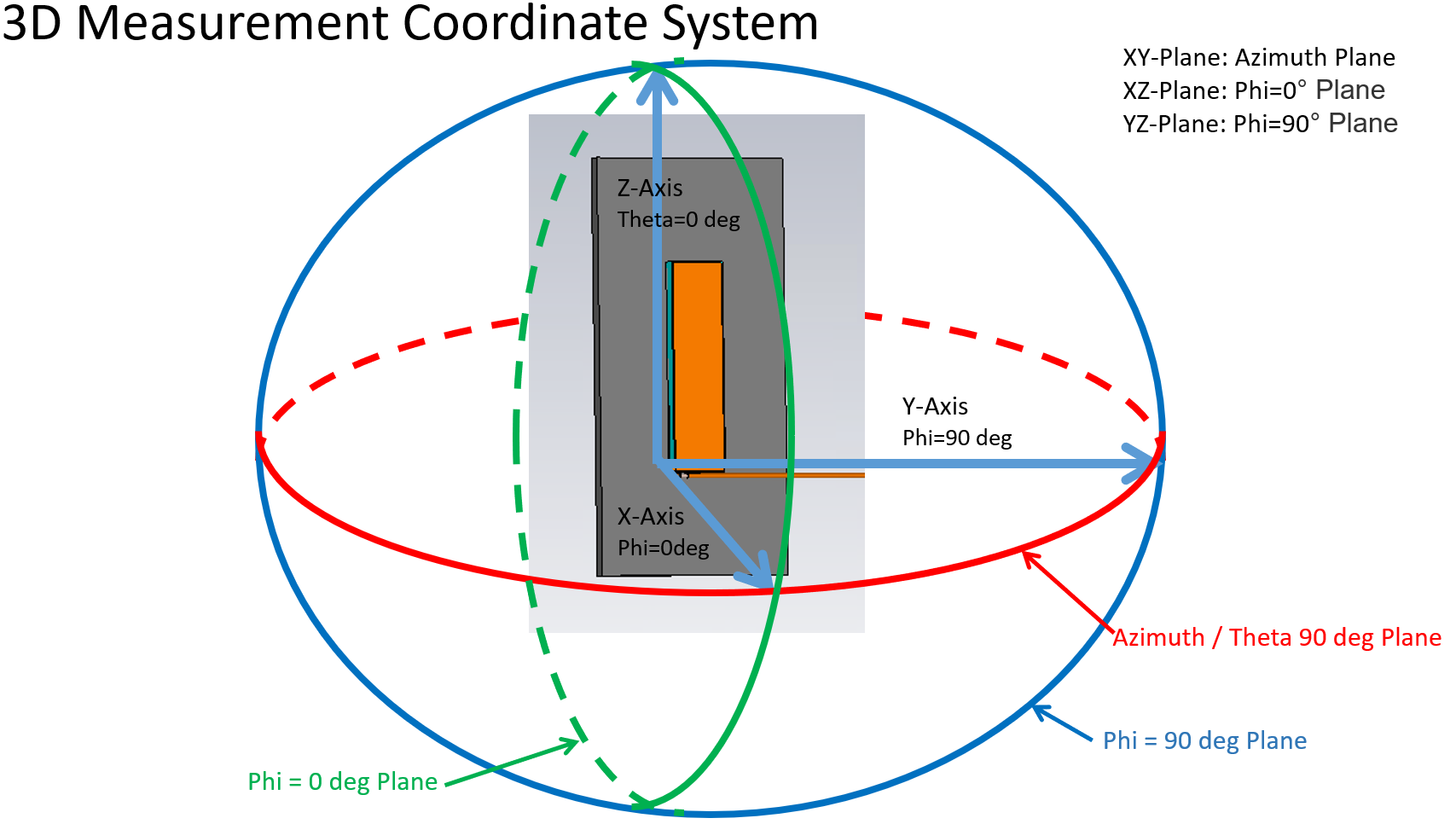

FlexPIFA centered on a 1.5 mm-thick plate of polycarbonate

image-20251218-185538.pngA picture containing text, diagram, screenshot, design Description automatically generated

Radiation Patterns – 2D Plots

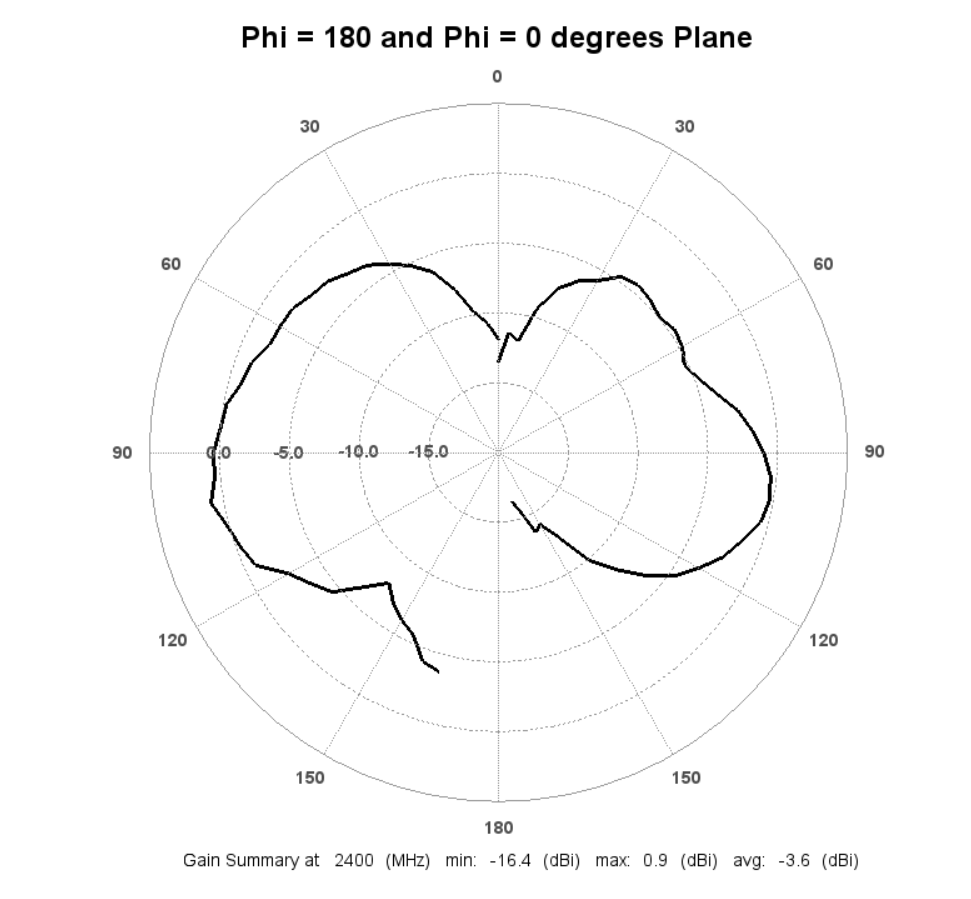

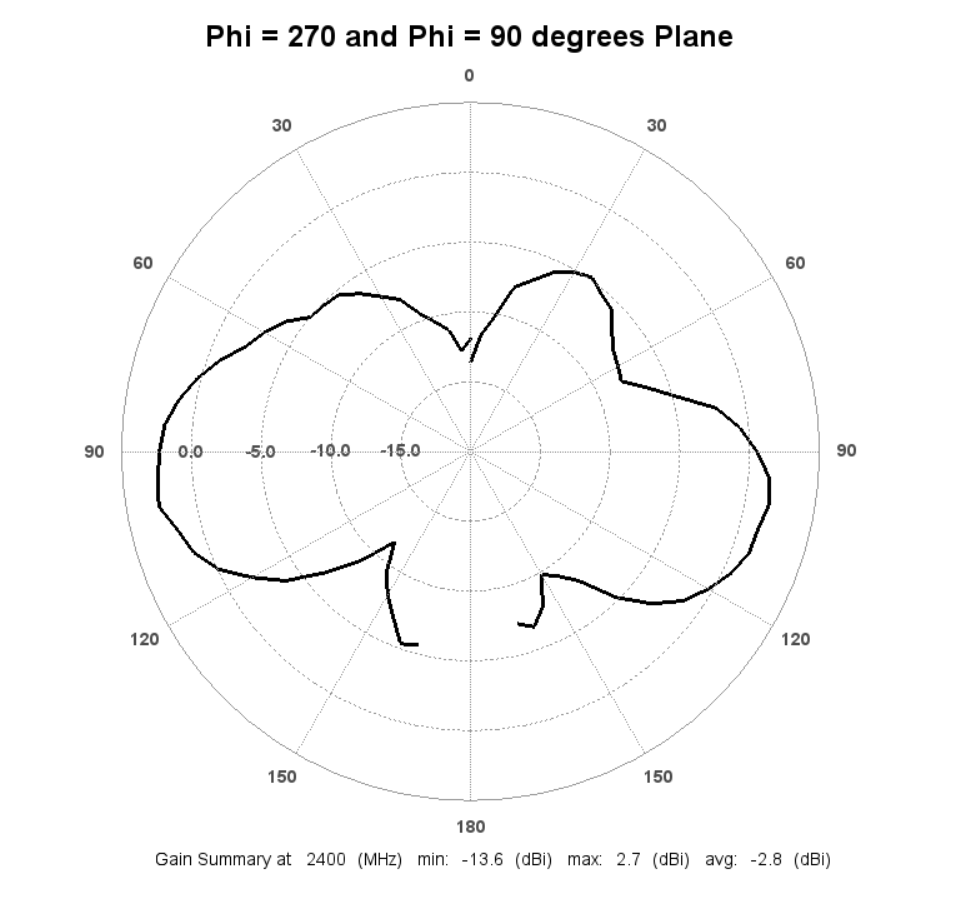

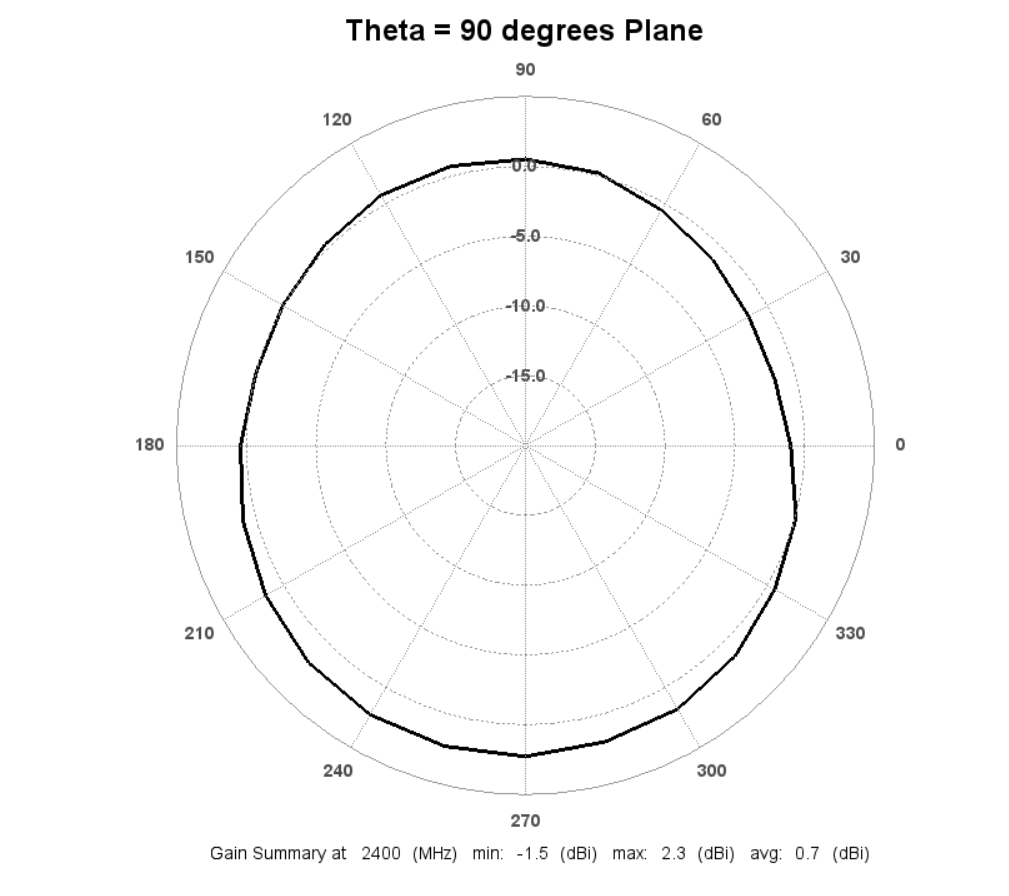

2D Plots at 2400 MHz

A picture containing diagram, circle, text, line Description automatically generatedA picture containing diagram, sketch, circle, text Description automatically generatedA picture containing diagram, sketch, drawing Description automatically generated

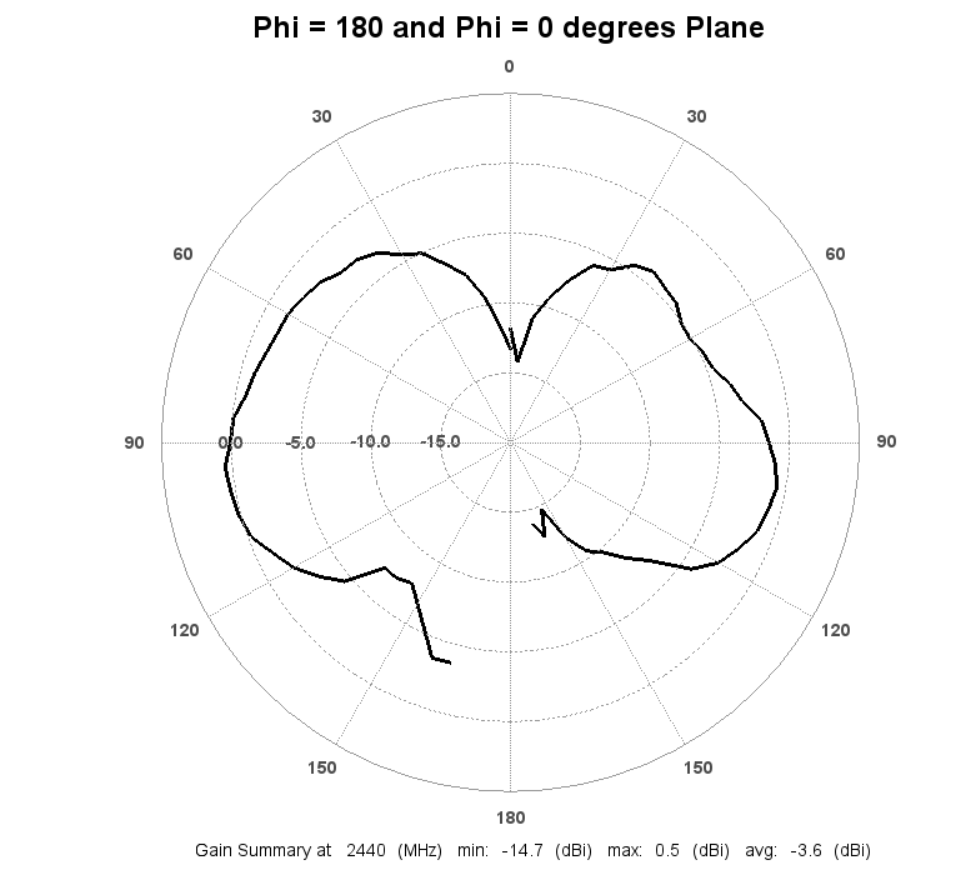

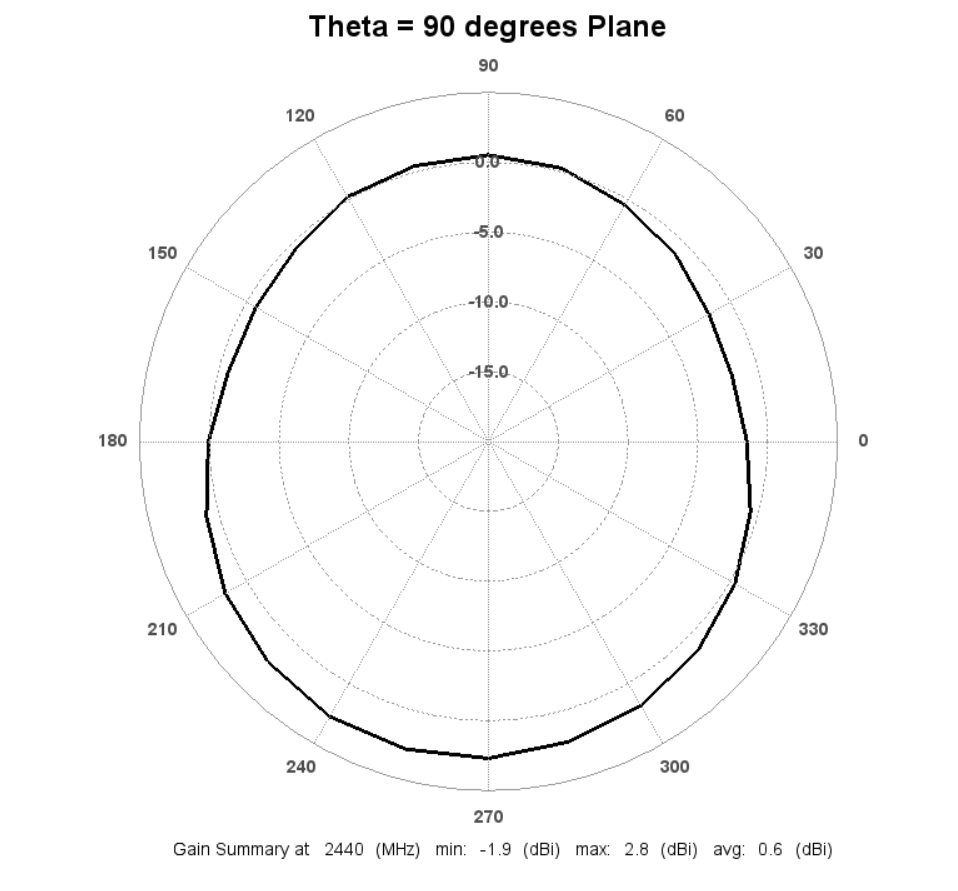

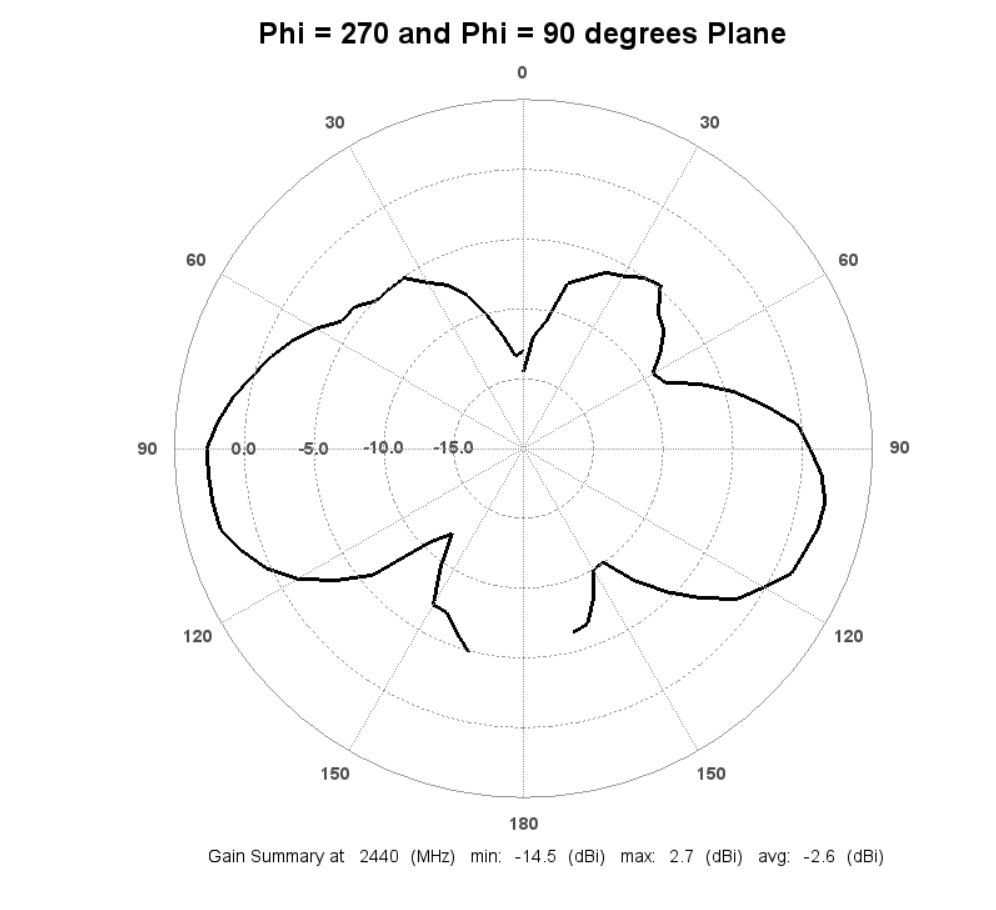

2D Plots at 2440 MHz

A picture containing circle, diagram, text, line Description automatically generatedA picture containing diagram, sketch, drawing, circle Description automatically generatedA picture containing diagram, sketch, drawing, text Description automatically generated

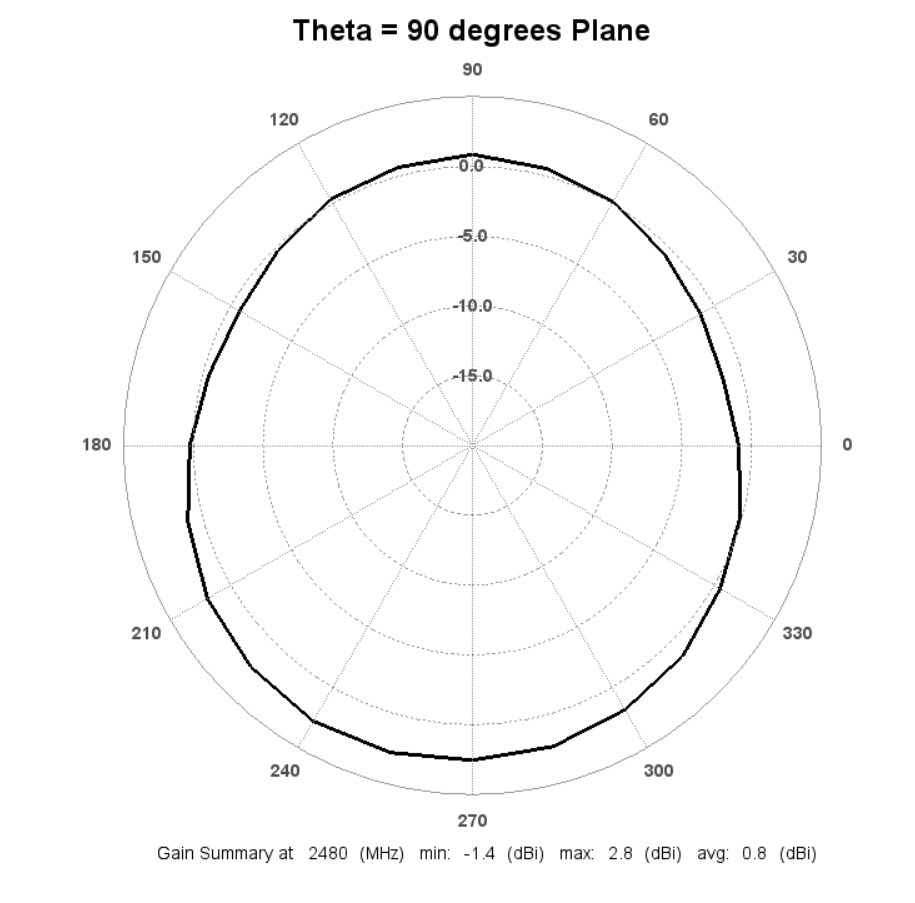

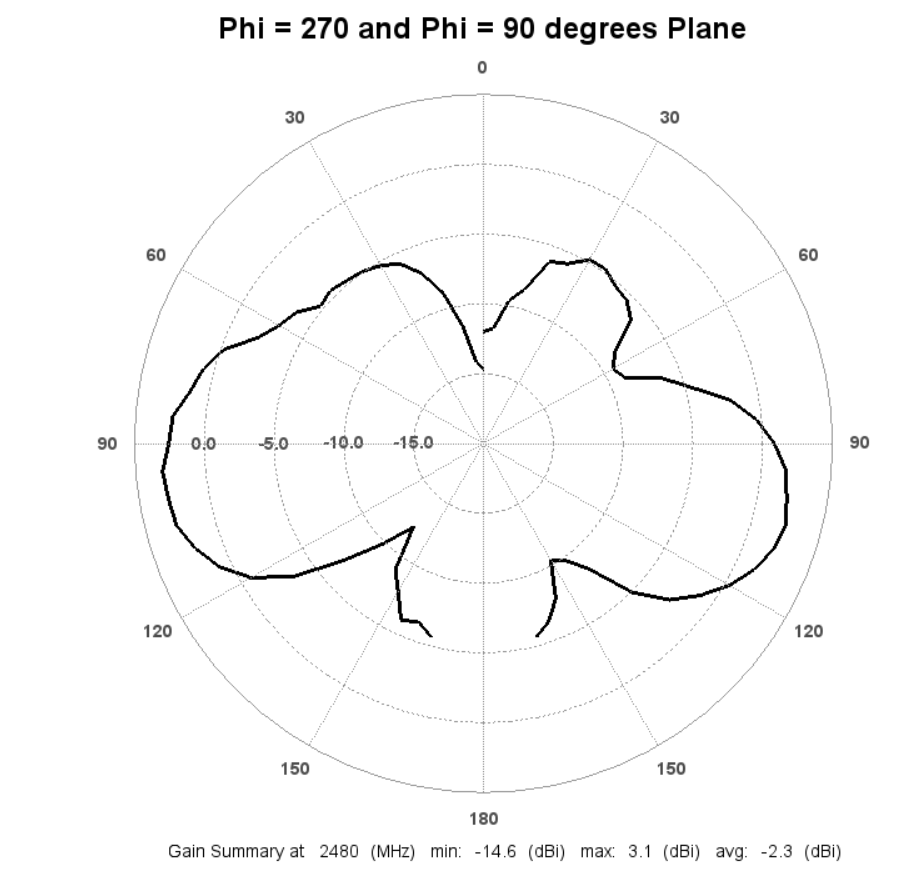

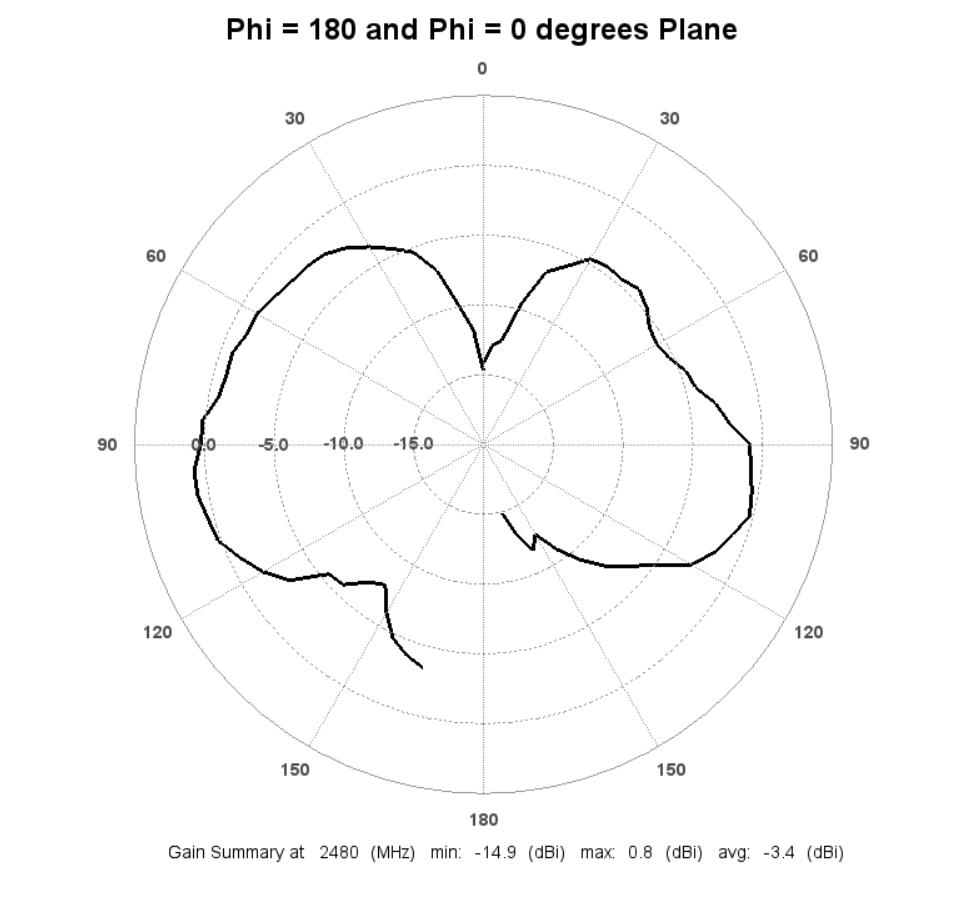

2D Plots at 2480 MHz

A picture containing diagram, circle, text, line Description automatically generatedA picture containing diagram, sketch, drawing, circle Description automatically generatedA picture containing diagram, sketch, drawing, pattern Description automatically generated

Radiation Patterns – 3D Plots

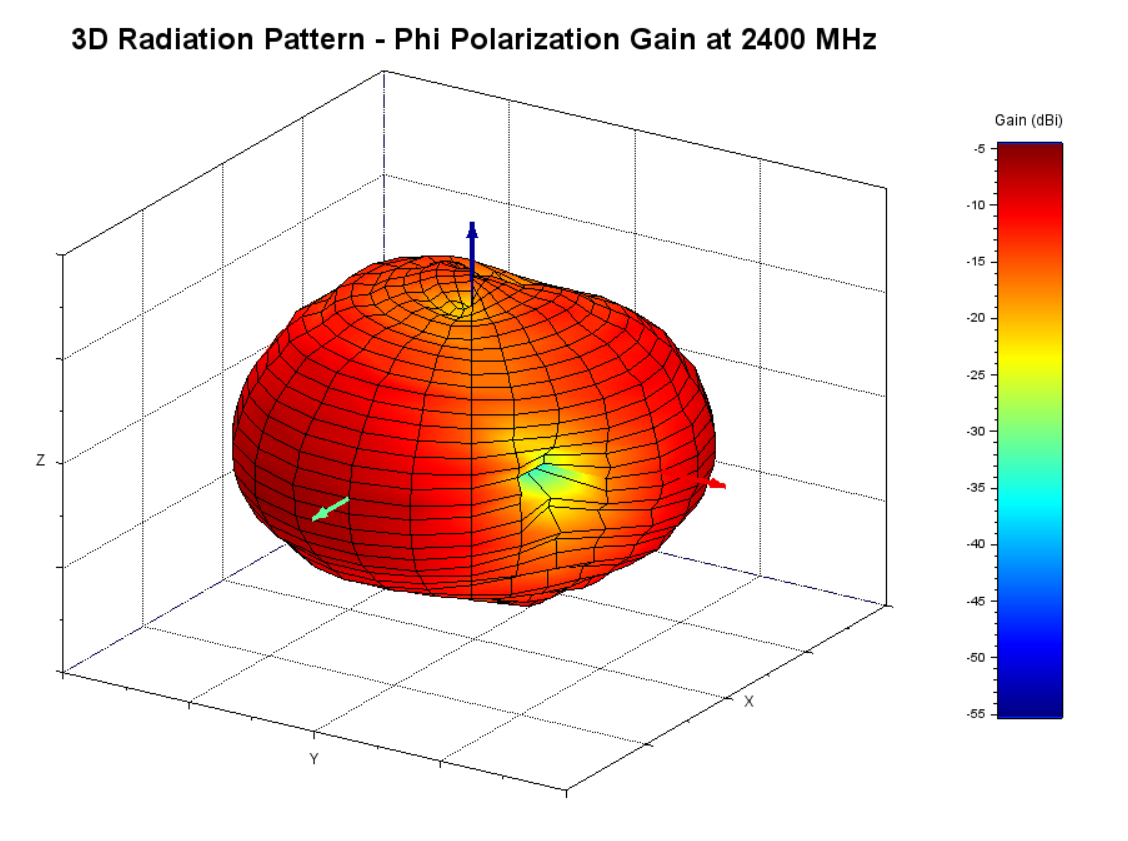

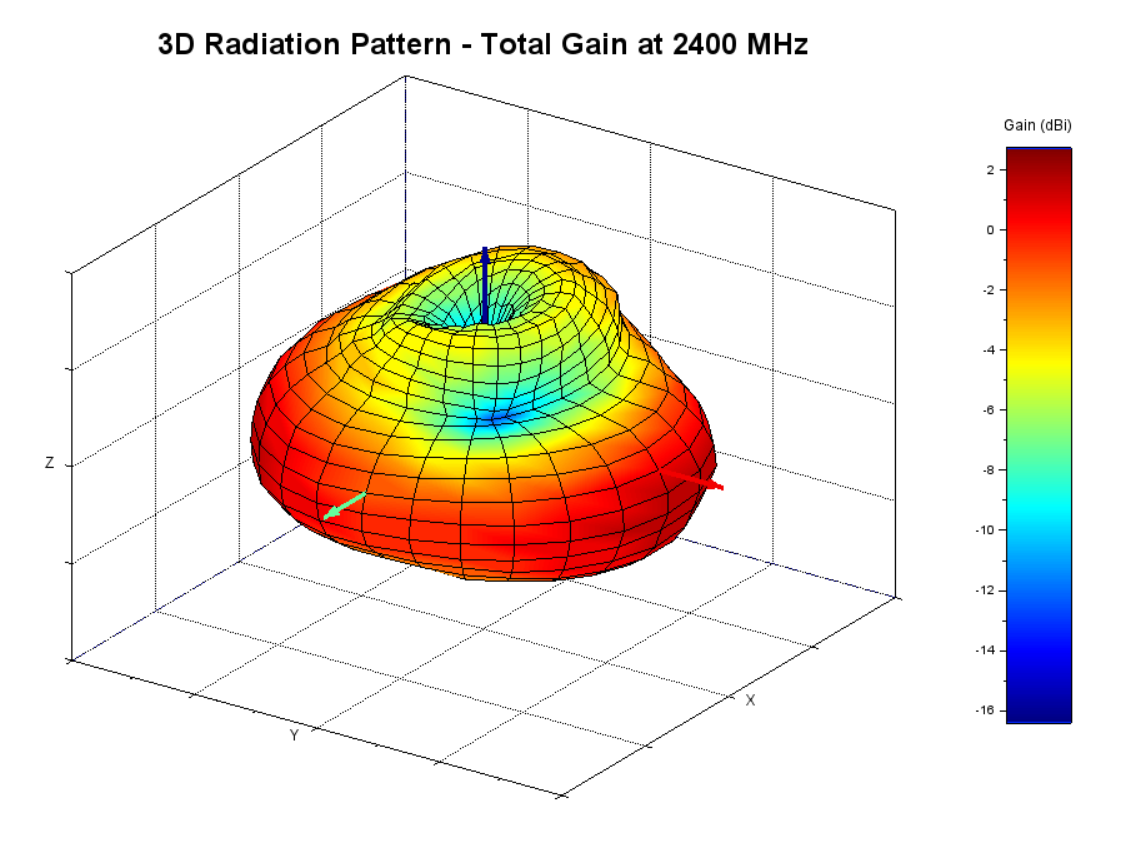

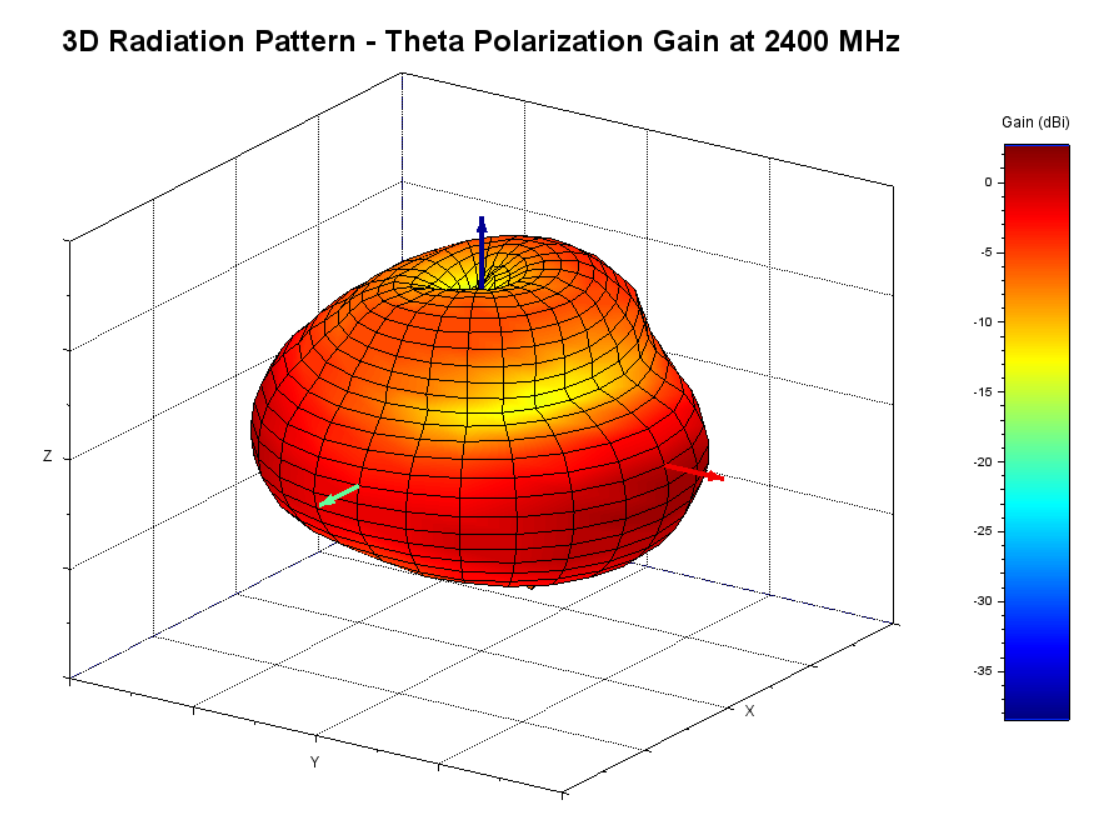

3D Plots at 2400 MHz

A picture containing fruit, diagram, screenshot, colorfulness Description automatically generatedA picture containing diagram, colorfulness, design, art Description automatically generatedA picture containing diagram, drawing, colorfulness, child art Description automatically generated
Phi polarization, Theta polarization and, and total gain plots – 2400 MHz

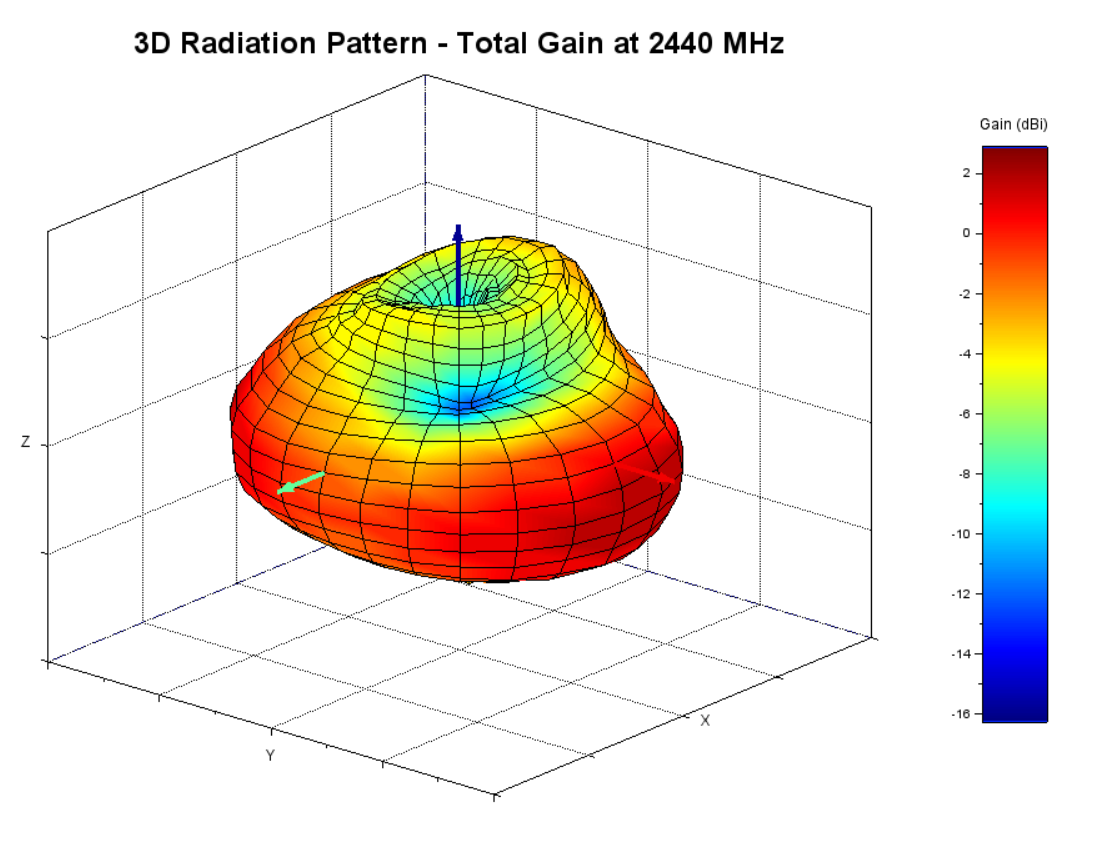

3D Plots at 2440 MHz

A picture containing diagram, text, design, art Description automatically generatedA picture containing fruit, diagram, orange, design Description automatically generatedA picture containing diagram, colorfulness, drawing, design Description automatically generated
Phi polarization, Theta polarization and, and total gain plots – 2440 MHz

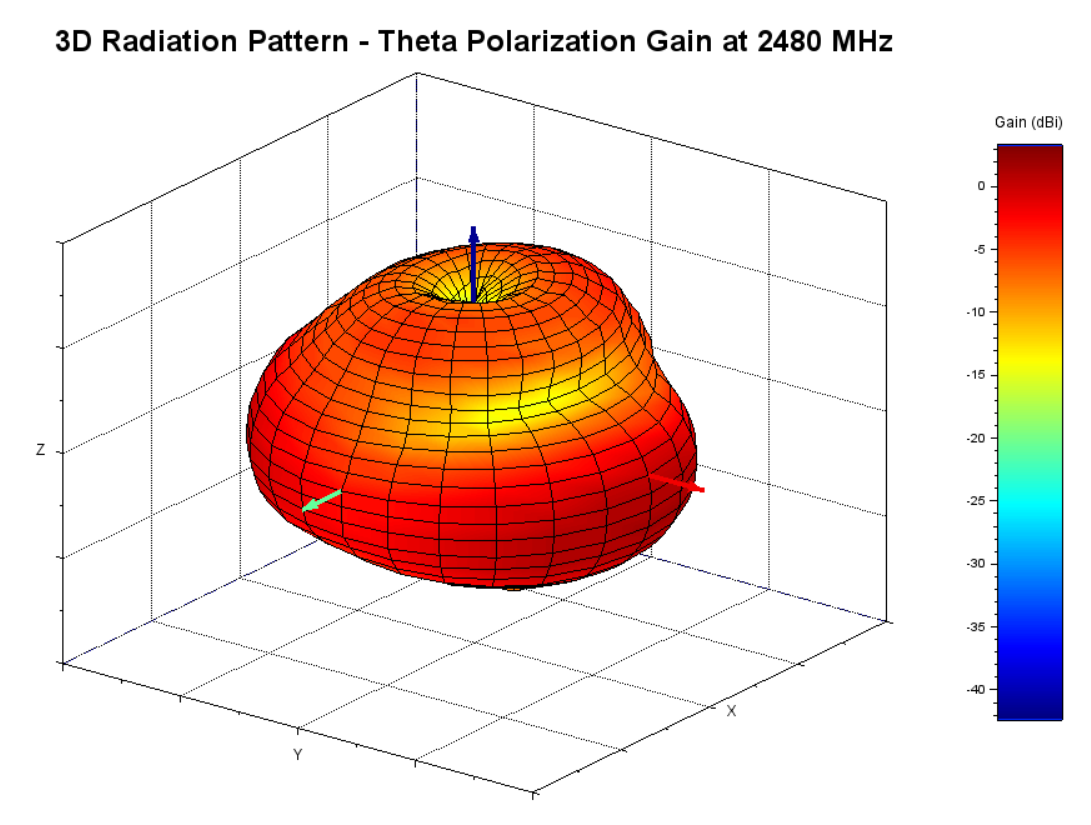

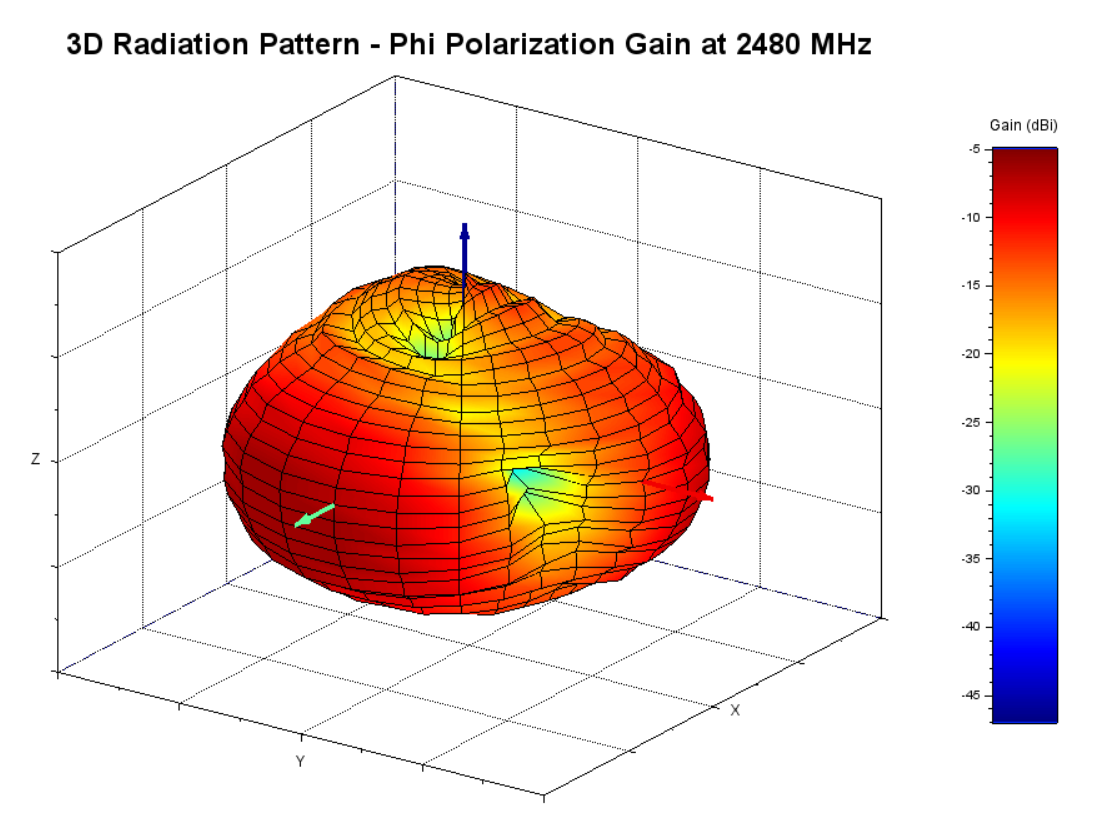

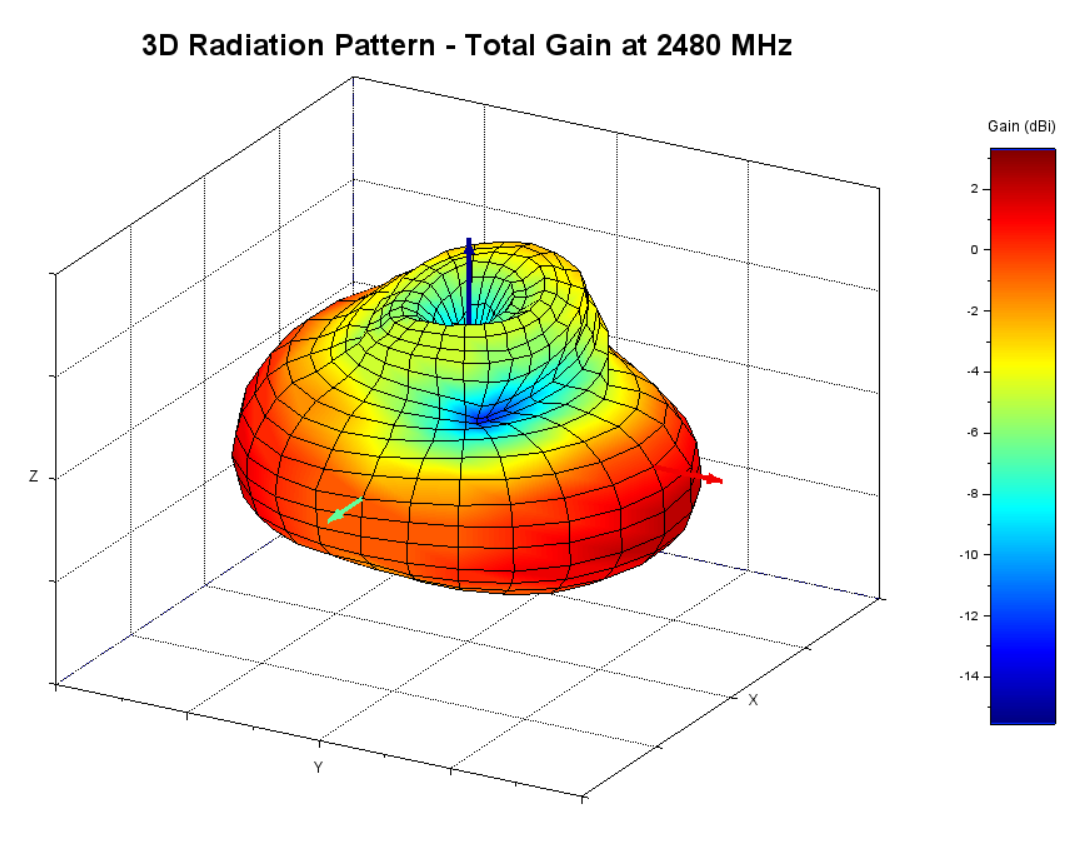

3D Plots at 2480 MHz

A picture containing fruit, diagram, design, art Description automatically generatedA picture containing diagram, colorfulness, design, art Description automatically generatedA picture containing drawing, diagram, art, design Description automatically generated
Phi polarization, Theta polarization and, and total gain plots – 2480 MHz

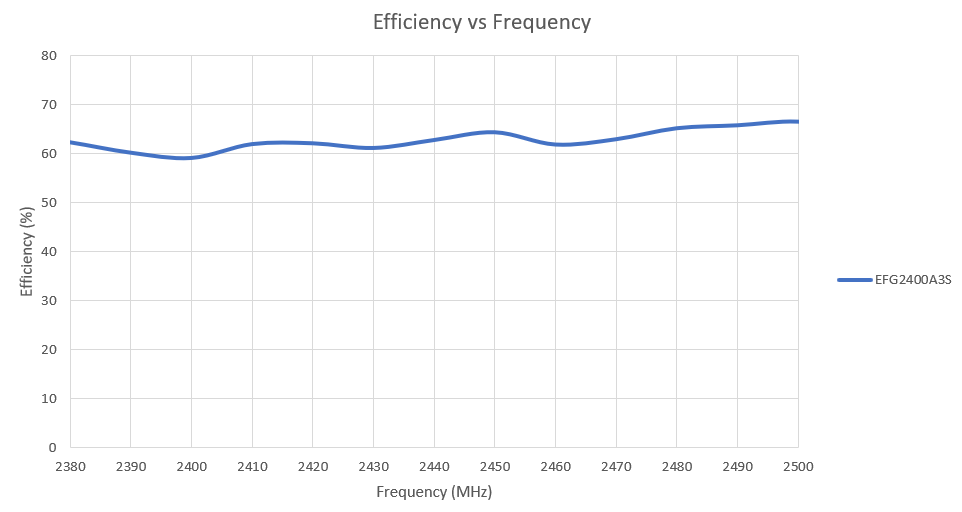

Efficiency

Chart, line chart Description automatically generated

Antenna Gain

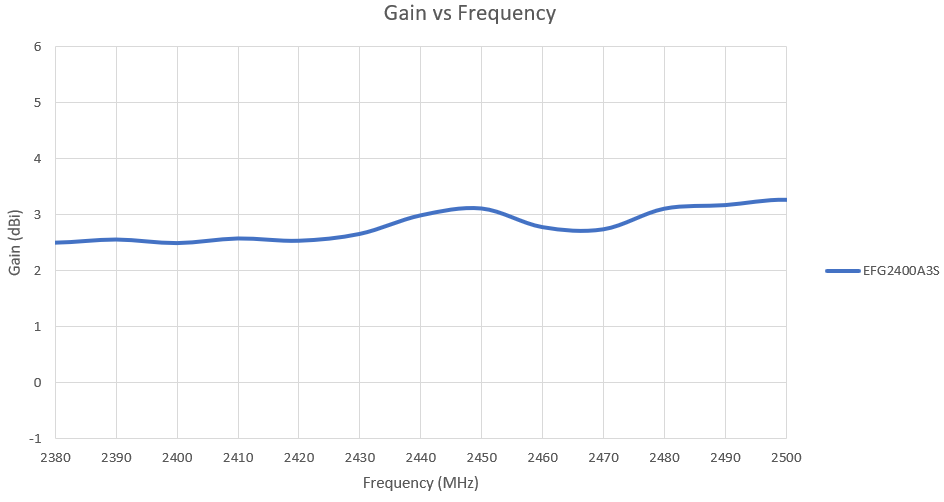

Total Gain vs. Frequency (as per IEEE definition)

Chart, line chart Description automatically generated

Peak Gain from Theta and Phi Polarization vs. Frequency

A graph of a graph and a graph of a graph Description automatically generated

Antenna Placement & Keep Out Region

Antenna Placement

The i-FlexPIFA is designed to be attached to dielectric surfaces encountered in plastic packaging of wireless communications devices. The nominal attachment surface used in its design and characterization is a 120 mm x 70 mm, 1.5-millimeter thick, Polycarbonate sheet.

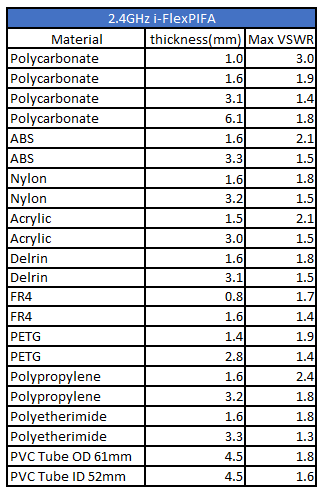

The VSWR of the i-FlexPIFA is shown below for the following materials and thicknesses outside of these specifications:

A table with text on it Description automatically generated

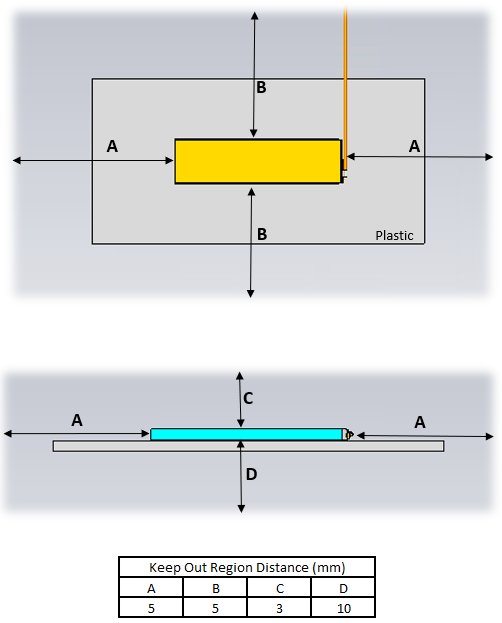

Antenna Conductive Material Keep Out Region

A picture containing diagram, screenshot, line, parallel Description automatically generated

Notes:

  • Antenna is designed to be mounted on polycarbonate with a nominal thickness of 2.25mm (1.mm - 3mm)
  • Diagram is not to scale

Product Revision History

Rev 2.0 - Initial Production Release

Legacy - Revision History

VersionDateNotesContributorsApprover
1.020 Dec 2022Initial ReleaseAdam Engelbrecht
2.031 Oct 2023Added Antenna Placement & Keep Out RegionAdam Engelbrecht
3.013 May 2024Ezurio rebrandingSue WhiteDave Drogowski
