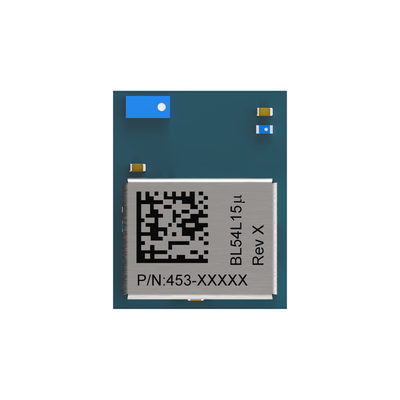

BL54L15μ Series - Bluetooth LE + 802.15.4 + NFC

Under Development: Preview

Overview

Experience a new pinnacle of performance, efficiency, and security with our new BL54L15µ series, built on Nordic Semiconductor's powerful nRF54 silicon. Elevating what you know and love from the nRF52 series, this next generation redefines Bluetooth LE and 802.15.4 solutions. Unleashing enhanced processing power, expanded memory, and innovative peripherals, the BL54L15µ is the ultimate choice for low power connectivity, in the smallest footprint (6.3 x 7.9 mm).

Powered by Nordic's nRF54L15 (WLCSP 300um) SoC, our ultra compact BL54L15µ modules deliver secure and robust Bluetooth LE and 802.15.4 with flexible programming via the Nordic SDK, Zephyr RTOS and Canvas Software Suite.

Featuring a 128MHz ARM Cortex M33 and 128MHz RISC-V coprocessor, supported by 1.5 MB non-volatile memory and 256 KB RAM, the BL54L15µ modules offer double the processing power (vs prior BL654 – nRF52840). The BL54L15µ series brings out all nRF54L15 hardware features and capabilities including up to +8 dBm transmit power, 1.7V – 3.6V supply considerations, and NFC A-Tag implementation.

It’s further enhanced with state-of-the-art security and is designed for PSA Certified level 3. It supports services such as Secure Boot, Secure Firmware Update, Secure Storage plus protection from physical attacks.


Contact Us for Early Samples!

This product is currently in development. For early access to engineering samples and evaluation kits, contact us below. Tell us about your application, and get in touch with our experts to jump start your Bluetooth development!


Contact Us


Specifications

Chipset
Nordic nRF54L15 SoC
Chipset (MCU)
1x ARM Cortex-M33 application processor @ 128 MHz
1x RISC-V co-processor @ 128 MHz VPR
Wireless Specification
Bluetooth LE 5.4
802.15.4
NFC
Memory
1.5MB non-volatile memory, 256 KB RAM
Operating Temp (Min) (°C)
-40
Operating Temp (Max) (°C)
+105
Dimension (Width - mm)
6.3
Dimension (Height - mm)
1.7
Dimension (Length - mm)
7.9
Antenna Options
Integrated PCB trace antenna OR onboard chip antenna
Compliance
FCC/ISED/EU/UKCA/RCM/MIC/KC. Bluetooth and 802.15.4 Certified. (Pending)
Logical Interfaces
UART, SPI, TWI, ADC, I2S, PWM, TIMER, QDEC. RTC, WDT, NFC A-Tag, TEMP, COMP, LPCOMP, UART
Programming Options
Canvas Software Suite
Nordic nRF Connect SDK
Zephyr RTOS
Receive Sensitivity
Up to -106 dBm
Transmit Power
Up to +8 dBm

Documentation

Name Part Type Last Updated
Product Brief - BL54L15µ - PRELIMINARY All Product Brief 06/19/2024
Datasheet - BL54L15μ - PRELIMINARY 02 OCT 2024 All Datasheet 10/02/2024

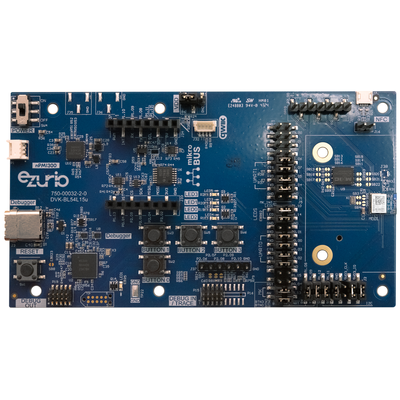

3D Model - BL54L15µ Module, Chip Antenna (453-00223) All Technical Drawings 10/02/2024

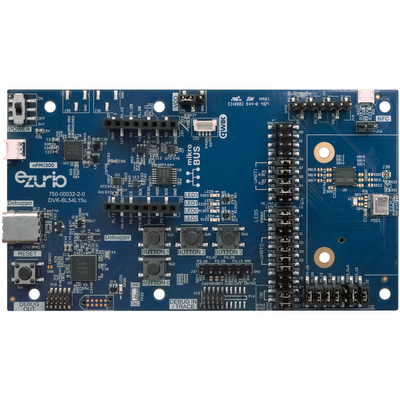

3D Model - BL54L15µ Module, RF Trace Pin (453-00224) All Technical Drawings 10/02/2024
PCB footprint - BL54L15µ (DXF and Altium format) All Technical Drawings 10/02/2024
SCH Symbol - BL54L15µ (Altium format) All Technical Drawings 10/02/2024

FAQ

Does Ezurio provide breakout boards for its Bluetooth modules?

Ezurio did provide breakout boards for our older BL600(EOL) modules but we do not produce breakout boards for any of our current range of Bluetooth modules as of 2024.

This includes all BL65x, BL53xx, BL54xxx, BTxxx, Vela and Lyra modules.

We do provide development kits for all of our module offerings. To learn more, visit any product page on ezurio.com.
