Overview

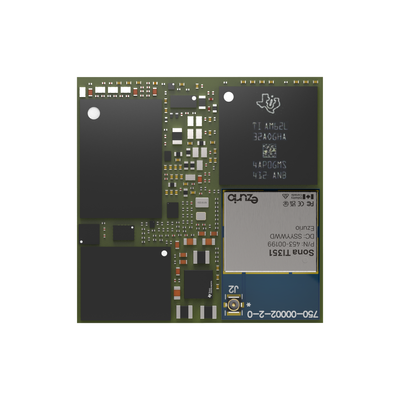

Our new Carbon AM62L OSM-SF family is powered by Texas Instrument’s AM62L processor family, TI’s TPS65214 PMIC, our Sona TI351 (TI CC3351) Wi-Fi 6 and BLE 5.4 wireless module, LPDDR4 RAM, and flash storage. The Carbon AM62L is designed to meet the processing and connectivity needs of commercial, industrial, and medical products. Our flexible production options allow you to choose the RAM, flash storage, and Sona Wi-Fi and Bluetooth connectivity that is most optimized for your product. All Carbon AM62L modules come with our industry leading software and integration support.
- Powerful Multiprocessing: Dual-core 1.25 GHz Cortex-A53 microprocessor subsystem
- Display: Support a MIPI-DSI interface with resolutions up to 1920 x 1080 @ 60 fps

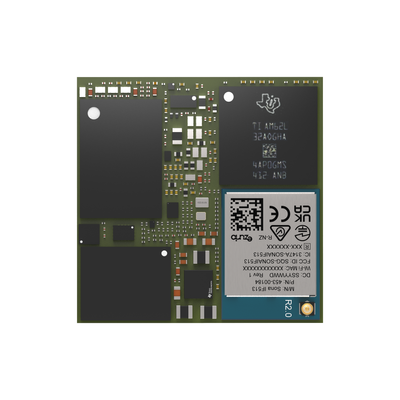

- Offered with Sona TI351 Wi-Fi 6 and Bluetooth Low Energy 5.4: Optional wireless based on TI CC3351. Additionally, choose from our Sona IF513 and Sona NX611 radios.
- High Speed Interfaces: USB 2.0 (480 Mbps) and dual Gigabit Ethernet (1 Gbps)
- Industrial Interfaces: UART, SPI, I2C, I2S, CAN-FD, GPIO, and more
- Software and Board Support Options: Yocto Linux/Buildroot Linux/Debian for Cortex-A53s
- Secure and Encrypted Boot, Secure Enclave, and Secure File Storage: Robust, secure, and encrypted boot mechanisms to ensure only trusted software boots on your device. Store and use secure keys, certificates, and credentials in run-time isolated trusted environment.
- OSM-SF v1.2 Standard Form Factor: 30mm x 30mm OSM-SF solder down form factor ensures one carrier design can support multiple processor, memory, and wireless configurations.
- Hardware Upgrade Roadmap: Build a product design that can easily be upgraded to the latest processors and wireless options as future Ezurio SOMs based on the OSM standard are released.
- Advanced Common Carrier/Development Board: Display, audio, Ethernet, USB, CAN, I2C, SPI, UART, power measurement, and more. Use in development and as reference designs for your carrier board design.
Need Something Different? We Tailor to You
More memory? Strip out the non-essentials? Upgrade or downgrade the processor? We do it all. Ezurio is your complete design partner. We'll create the board with everything you need, and nothing you don't. Explore
Industry Leader in Connected SOMs
Pair this SOM with best-in-class, pre-certified Wi-Fi modules to fit your application and budget. Start Designing
A secure and rugged TI AM62L based OSM-SF SOM
The Carbon AM62L OSM-SF leverages TI's AM62L architecture into a small, secure, and connected platform for your designs. Outfitted for a broad array of applications with a wide array of interfaces, secure enclave and secure boot, optional wireless connectivity, full lifecycle management, and much more.
Onboard MPU/MCU
Linux Supported (Yocto, Buildroot, or Debian)
1.25 GHz 2-core Cortex-A53.
Small Form Factor
Compact OSM-SF standard measuring 30 x 30 mm.
Many Interfaces
Networking, audio, and extensive I/O peripheral support.
10+ Year Life Cycle
LTS SW availability, OTA updates
Upgrade path for future
Wi-Fi / Bluetooth.
Display Output
MIPI DSI with up to 1920 x 1080 output @ 60 fps.

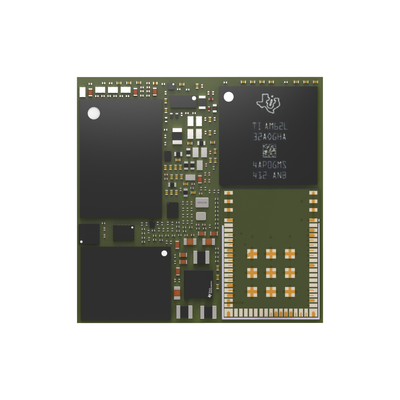

Optional Wireless
Offered standard with Sona TI351. Optional IF513 and NX611 also available.
Memory Options
Flexible memory options: 512 MB, 1GB, or 2GB LPDDR4.
Secure Enclave + Secure Boot
Dedicated on-board security hardware, signed images, provisioned and encrypted certificates.
Summit Suite
Manage every part of the security lifecycle.
