Nitrogen93 SMARC

Recommended for New Design (RND)

Overview

Assembled In USA
Get SOM Support+

Click here to learn more about our Universal SMARC Carrier board.

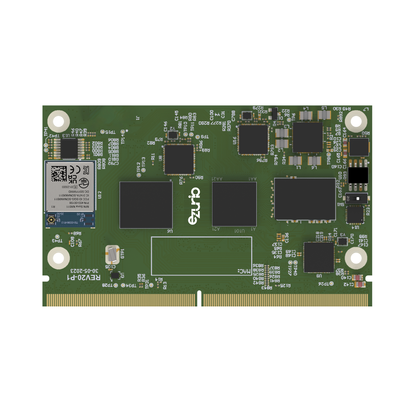

Our new Nitrogen93 is powered by NXP’s next generation i.MX 93 processor, NXP PMIC PCA9451A, and our  Sona WiFi 6/6E and Bluetooth 5.3/5.4 wireless module families based on leading NXP and Infineon solutions, high performance LPDDR4 RAM, and eMMC storage. We combine this with our common SMARC carrier board; together they serve as a single board computer (SBC) that can speed your product to market. Alternately, work with us to create a custom carrier that fits your mechanical, environmental, temperature, and interface requirements.

  • Powerful Heterogenous Multiprocessing: Up to 1.7 GHz dual-core Cortex-A55 microprocessor and 250 MHz Cortex-M33 microcontroller allow you to run Linux and an RTOS on dedicated, hardware-firewalled subsystems.
  • Dedicated Machine Learning: High-performance edge machine learning via an integrated Arm Ethos™-U65 microNPU, delivering up to .7 TOPS.
  • Diversity of Interfaces: Multiple display, network, data, audio and camera interfaces.
  • SMARC 2.1.1 Standard Form Factor: 82mm x 50mm SMARC edge connector form factor which includes onboard ethernet PHYs. One design supports multiple processor, memory, and wireless configurations.
  • Hardware Upgrade Roadmap: Build a product design that can easily be upgraded to the latest processors and wireless options as future Ezurio SOMs based on the SMARC standard are released.
  • Advanced Common Carrier/Development Board: Display, camera, audio, Ethernet, USB, CAN, I2C, SPI, UART, and more. Use in development, as an SBC equivalent in a product, or as reference designs for your carrier board design.

Custom Solutions

Reduce design risk and accelerate your time to market with Ezurio's custom Single Board Computers (SBC). We offer:

  • A hand-in-hand partnership approach.
  • Design your board your way.
  • Lower production costs by choosing your required components.
  • Industry leading hardware and software.

Learn More

Custom SBC for SOM pages.png

Specifications

Chipset (MPU)
2x Cortex®-A55 cores @ 1.7 GHz (NXP i.MX 93)
Chipset (MCU)
1x Cortex®-M33 core @ 250 MHz (NXP i.MX 93)
Wireless Specification
(optional)
Wi-Fi 6/6E
Bluetooth 5.3/5.4
Dimension (Length - mm)
82
Dimension (Width - mm)
50
Additional Features
2D Accelerator, 1 TOPS NPU
Antenna Options
MHF4 connectors for pre-certified external antennas
Audio
2x 12S
Display
MIPI-DSI, LVDS
Interfaces - General
USB 2.0, Gbit Ethernet, CAN/CAN-FD, UART, I2C, SPI, SDIO/eMMC, GPIO
MIPI-CSI, MIPI-DSI
Audio via I2S
Memory
1 or 2 GB LPDDR4 RAM
Operating Temp (Max) (°C)
+85 °C
Operating Temp (Min) (°C)
-40 °C
Region
FCC, IC, CE, UKCA, RCM, MIC, KC (pending)
Storage
16 GB
Part NumberAdditional DescriptionMemoryOperating Temp (Max) (°C)Operating Temp (Min) (°C)Storage
Universal SMARC Carrier
SMARC_CAR_BRD
Recommended for New Design (RND)
Buy Now
Universal SMARC Carrier Board
Nitrogen 93 - without wireless
N93_SMARC_SOM_1r16e
Recommended for New Design (RND)
Buy Now
Nitrogen93 SMARC (without wireless) 1 GB +70 °C+0 °C16 GB
Nitrogen 93 - without wireless
N93_SMARC_SOM_2r16eBuy Now
Nitrogen93 SMARC (without wireless) 2 GB +70 °C+0 °C16 GB
Nitrogen 93 - without wireless
N93_SMARC_SOM_1r16e_iBuy Now
Nitrogen93 SMARC (without wireless) 1 GB +85 °C-40 °C16 GB
Nitrogen 93 - without wireless
N93_SMARC_SOM_2r16e_iBuy Now
Nitrogen93 SMARC (without wireless) 2 GB +85 °C-40 °C16 GB
Nitrogen93 - with Sona IF573
N93_SMARC_SOM_1r16e_IF573_3M
Nitrogen93 SMARC (with Sona IF573 wireless) 1 GB +70 °C+0 °C16 GB
Nitrogen93 - with Sona IF573
N93_SMARC_SOM_2r16e_IF573_3M
Nitrogen93 SMARC (with Sona IF573 wireless) 2 GB +70 °C+0 °C16 GB
Nitrogen93 - with Sona IF573
N93_SMARC_SOM_1r16e_IF573_3M_i
Nitrogen93 SMARC (with Sona IF573 wireless) 1 GB +85 °C-40 °C16 GB
Nitrogen93 - with Sona IF573
N93_SMARC_SOM_2r16e_IF573_3M_iBuy Now
Nitrogen93 SMARC (with Sona IF573 wireless) 2 +85 °C-40 °C16 GB

Documentation

Name Part Type Last Updated
Datasheet - Nitrogen93 SMARC All Datasheet 04/16/2024
Product Brief - Nitrogen93 SMARC All Product Brief 04/18/2024
User Guide - Nitrogen93 SMARC SOM (External Link) All Documentation 03/19/2024
Wiki - Nitrogen93 SMARC (External Link) All Documentation 03/19/2024
Software Wiki - Nitrogen93 SMARC (External Link) All Software 03/19/2024
3D Model and .STEP FIle - Nitrogen93 SMARC All Technical Drawings 04/18/2024

FAQ

How do I set the bootloader back to its default configuration?

The command "env erase" will restore defaults when executed in the bootloader.

How do I configure my network connection?

NMCLI should be utilized to configure network interfaces.

What key is the M.2 slot on the Universal SMARC Carrier board?

The M.2 Slot on the Universal SMARC Carrier board is E key.
