GNSS Modules

Ezurio’s GNSS modules deliver reliable, high-precision positioning for applications including robotics, UAVs, surveying, and industrial systems. With multi-band, multi-constellation support and advanced technologies such as RTK and interference mitigation, our solutions provide accurate positioning in demanding environments.


GNSS Portfolio

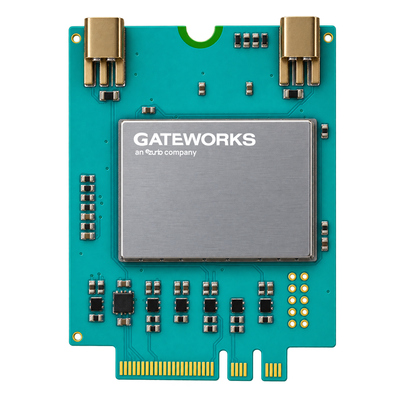

  • Chipset (Wireless)
    Septentrio mosaic-G5 P6; mosaic-G5 P8 available as GW16171-SPxxx special configuration
    Form Factor
    M.2 A/E-Key 3042
    Channels
    789 hardware channels supporting GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC, SBAS, L-band, and 5-constellation RTK
    Learn More

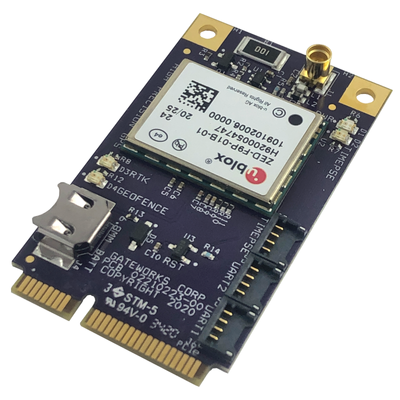

  • Chipset (Wireless)
    u-blox ZED-F9P
    Form Factor
    Mini-PCIe
    Additional Features
    Centimeter-level positioning with corrections; base and rover operation; high update rate; RTK, SSR, and SBAS correction support
    Learn More

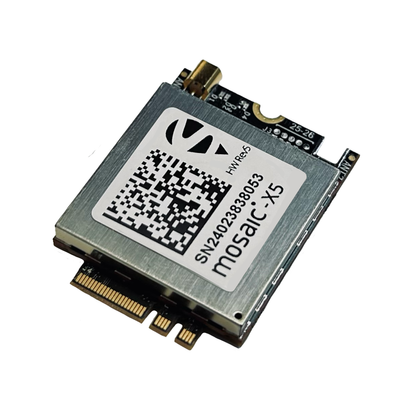

  • Chipset (Wireless)
    Septentrio mosaic-X5
    Form Factor
    M.2 A/E-Key 3042
    Channels
    448 hardware channels supporting GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC, SBAS, L-band, and 5-constellation RTK
    Learn More

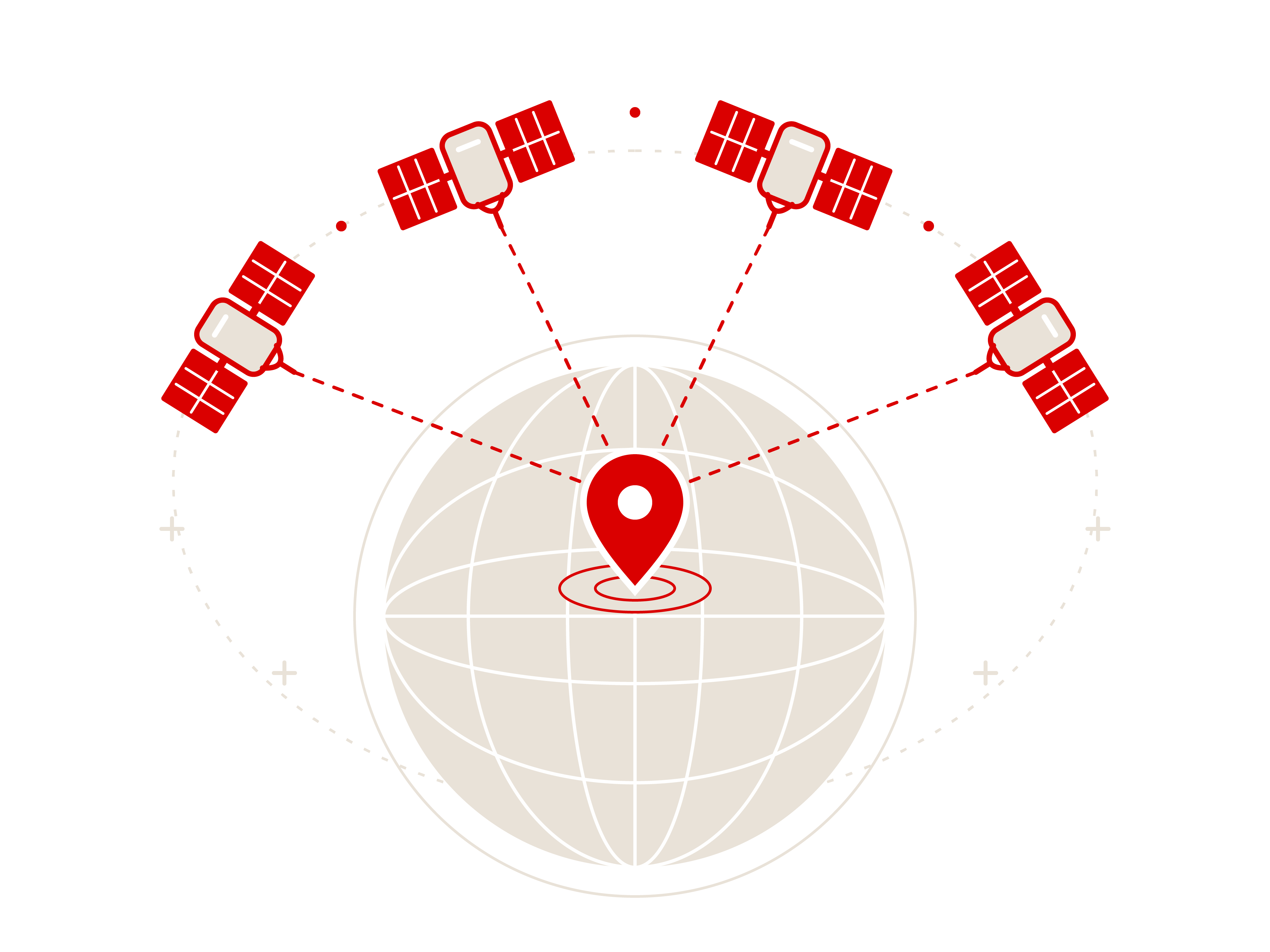

GNSS Precision

Standard GNSS receivers determine position to within 2-4 meters. RTK (Real-Time Kinematic) improves this to 1-2 centimeters using correction data from a base station, applied to a rover receiver in real time.

Multi-band modules track multiple satellite frequencies, reducing errors and improving fix time. Multi-constellation support (GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC) adds visible satellites for better coverage in urban and obstructed areas. Interference mitigation protects against jamming and spoofing for industrial and defense use.

GNSS measurement

Through our acquisition of Gateworks, Ezurio offers precision GNSS modules built for demanding embedded applications. Gateworks GNSS cards combine multi-constellation, multi-band positioning with RTK correction support, delivering centimeter-level accuracy for robotics, UAV, and industrial systems.

Learn More
