GW16171 Precision
GW16171 Precision GNSS M.2 Card
Overview
Industrial GNSS M.2 Card with Septentrio Mosaic-G5 for Centimeter-Level Accuracy
The Gateworks GW16171 is a rugged, industrial-grade GNSS M.2 card featuring the Septentrio mosaic-G5 multi-frequency receiver. Designed for autonomous systems, robotics, drones and outdoor asset tracking, it delivers centimeter-level RTK positioning and interference mitigation in a compact, low-power form factor. The GW16171 seamlessly integrates with Gateworks SBCs to enable high-accuracy GNSS for edge applications in even the most challenging environments. The Septentrio Mosaic-G5 receiver module supports up to 789 hardware channels, including GPS, GLONASS, Beidou, Galileo, QZSS, Navic, SBAS, L-band and 5 constellation RTK (base and rover).
Specifications
Connectivity
Chipset (Wireless)
Septentrio mosaic-G5 P6; mosaic-G5 P8 available as GW16171-SPxxx special configuration
Antenna Type
GNSS antenna; optional second antenna for heading applications
Wireless Specification
Multi-band GNSS / GPS, RTK
Antenna Connector Type
Low-profile right-angle MMCX connector with 3.3 VDC antenna bias
Packaging
Form Factor
M.2 A/E-Key 3042
Product Type
Embedded Module
Accessories
GW16151 M.2 adapter for Mini-PCIe slots; GNSS antenna and cables sold separately
Weight
7.5 g (0.265 oz)
Dimension (Length - mm)
31.0 mm
Dimension (Width - mm)
42.8 mm
Dimension (Height - mm)
4.2 mm
Interface
Channels
789 hardware channels supporting GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC, SBAS, L-band, and 5-constellation RTK
Technology
Multi-frequency, multi-constellation GNSS with RTK
Connector
MMCX antenna connector
Included Peripheral
MicroSD slot for data logging
Physical Interface
M.2 A/E-Key with USB 2.0 signaling
Interfaces - General
USB 2.0; microSD data logging; optional UART, PPS, and event signals
Features
Additional Description
Industrial precision GNSS M.2 card for centimeter-level RTK positioning, autonomous systems, robotics, drones, surveying, and outdoor asset tracking
Additional Features
RTK accuracy: 0.6 cm + 0.5 ppm horizontal and 1 cm + 1 ppm vertical; up to 100 Hz update rate; anti-jamming and anti-spoofing interference monitoring and mitigation; compatible with u-blox PointPerfect Flex PPP-RTK corrections
Software
System Architecture
Hosted
Software
Gateworks Linux BSP support; Septentrio RxTools supported
Development Tools
Gateworks GW16171 Wiki and Septentrio RxTools
Power
Power Consumption
0.1 A typical operating current
Input Voltage
3.3 V M.2 edge connector
Environment
Operating Humidity
20% to 90% RH, non-condensing
Temperature Range
-40°C to +85°C
| Part Number | Price @ 1K | Chipset (Wireless) | Connector | Development Tools | Dimension (Height - mm) | Dimension (Length - mm) | Dimension (Width - mm) | Form Factor | Included Peripheral | Input Voltage | Interfaces - General | Operating Humidity | Physical Interface | Power Consumption | Product Type | Software | System Architecture | Technology | Temperature Range | Weight | Wireless Specification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

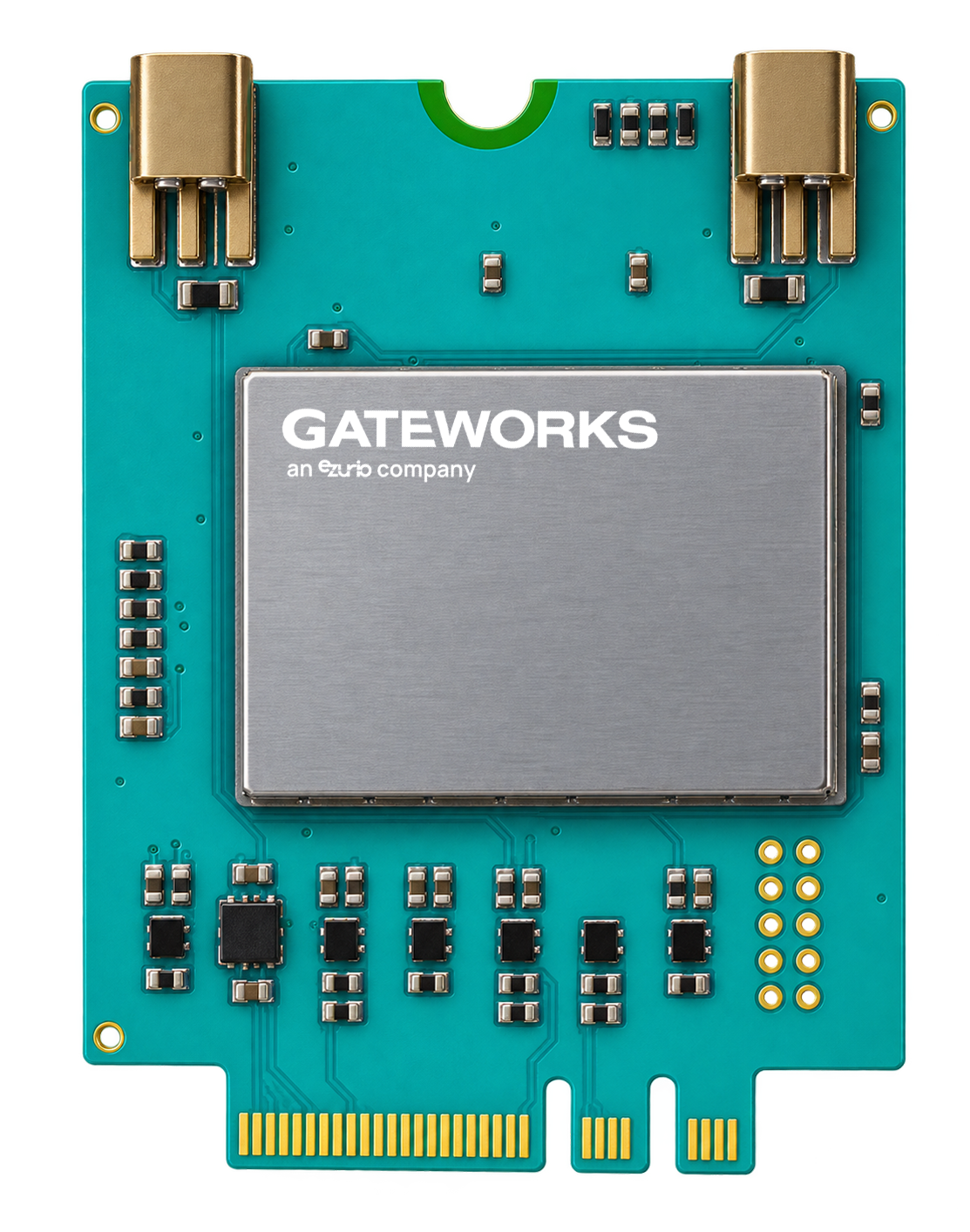

/filters:background_color(white)/2026-09/gw161713d.png) GW16171 Preview | N/A | Septentrio mosaic-G5 P6; mosaic-G5 P8 available as GW16171-SPxxx special configuration | MMCX antenna connector | Gateworks GW16171 Wiki and Septentrio RxTools | 4.2 mm | 31.0 mm | 42.8 mm | M.2 A/E-Key 3042 | MicroSD slot for data logging | 3.3 V M.2 edge connector | USB 2.0; microSD data logging; optional UART, PPS, and event signals | 20% to 90% RH, non-condensing | M.2 A/E-Key with USB 2.0 signaling | 0.1 A typical operating current | Embedded Module | Gateworks Linux BSP support; Septentrio RxTools supported | Hosted | Multi-frequency, multi-constellation GNSS with RTK | -40°C to +85°C | 7.5 g (0.265 oz) | Multi-band GNSS / GPS, RTK |
