Nitrogen8M Mini SMARC

Recommended for New Design (RND)

Overview

Assembled in USA
Get SOM Support+

Click here to learn more about our Universal SMARC Carrier board.

Our customers asked for a high performance, robust SoM that simplifies their BOM, has reliable connectivity, uses a standard form factor, and is globally certified. One with multiple software options, a proven security architecture, long term software support, and security fixes.

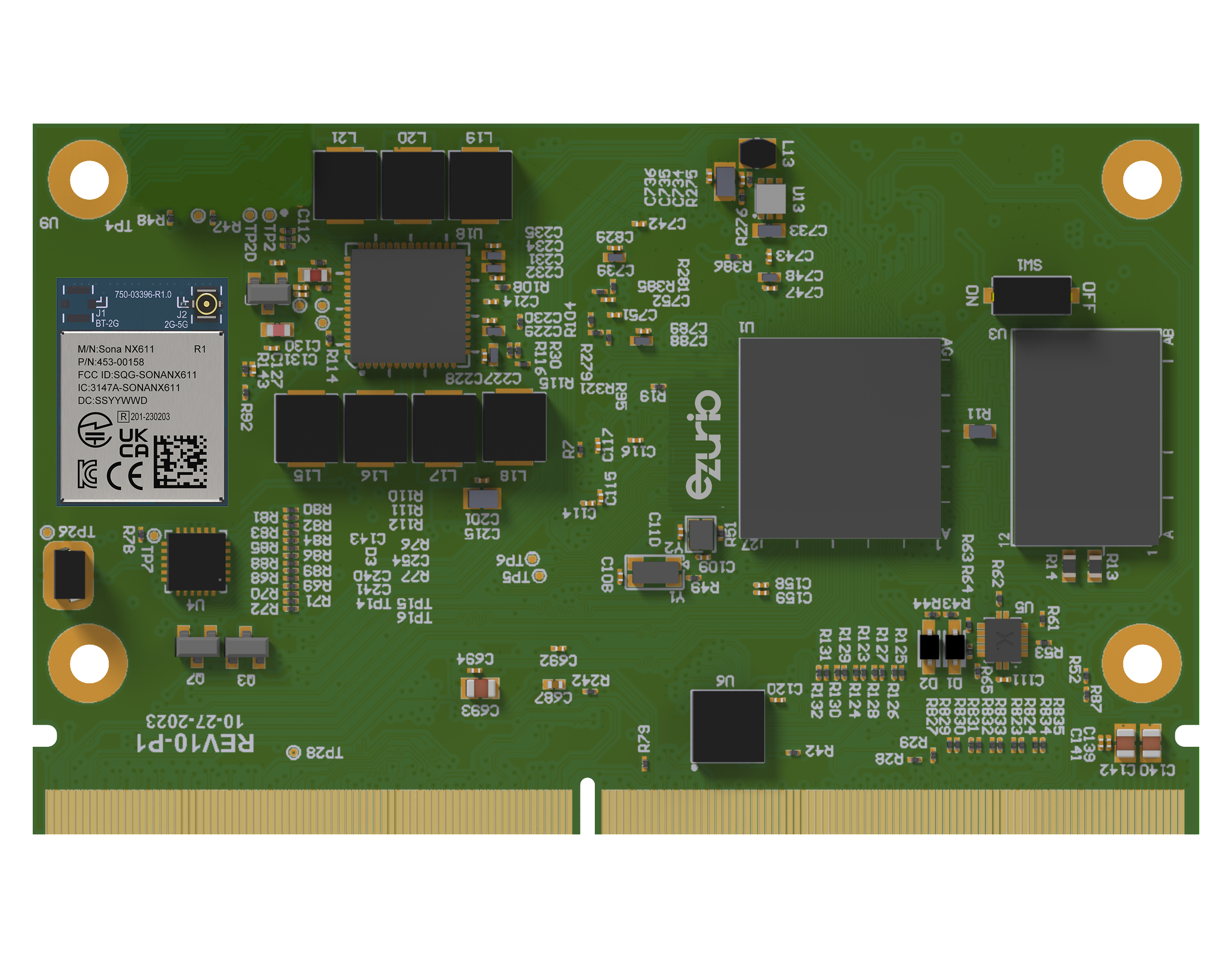

Our new Nitrogen8M Mini SMARC is powered by NXP’s class-leading i.MX 8M Mini processor, NXP PMIC PF8121, and our Sona WiFi 6/6E and Bluetooth 5.3/5.4 wireless module families based on leading NXP and Infineon solutions, high performance LPDDR4 RAM, and eMMC storage. We combine this with our common SMARC carrier board; together they can serve as a single board computer (SBC) that can speed your product to market. Alternately, work with us to create a custom carrier that fits your mechanical, environmental, temperature, and interface requirements.

  • Powerful Heterogenous Multiprocessing: Up to 1.8 GHz quad-core Cortex-A53 microprocessor and 400 MHz Cortex-M4 microcontroller allow you to run Linux and an RTOS on dedicated, hardware-firewalled subsystems.
  • Diversity of Interfaces: Display, network, data, audio and camera interfaces.
  • SMARC 2.1.1 Standard Form Factor: 82mm x 50mm SMARC edge connector form factor which includes onboard ethernet PHY and a USB hub controller. One design supports multiple processor, memory, and wireless configurations.
  • Hardware Upgrade Roadmap: Build a product design that can easily be upgraded to the latest processors and wireless options as future Ezurio (formerly Laird Connectivity) SOMs based on the SMARC standard are released.
  • Advanced Common Carrier/Development Board: Display, camera, audio, Ethernet, USB, PCI-Express, I2C, SPI, UART, and more. Use in development, as an SBC equivalent in a product, or as reference designs for your carrier board design.


Custom Solutions

Reduce design risk and accelerate your time to market with Ezurio's custom Single Board Computers (SBC). We offer:

  • A hand-in-hand partnership approach.
  • Design your board your way.
  • Lower production costs by choosing your required components.
  • Industry leading hardware and software.

Learn More

Custom SBC for SOM pages.png

Specifications

Chipset (MPU)
4x Cortex®-A53 cores @ up to 1.8 GHz (NXP i.MX 8M Mini)
Chipset (MCU)
1x Cortex®-M4 core @ 400 MHz (NXP i.MX 8M Mini)
Wireless Specification
(optional)
Wi-Fi 6/6E
Bluetooth 5.3/5.4
Dimension (Length - mm)
82
Dimension (Width - mm)
50
Memory
1GB, 2GB, or 4GB LPDDR4
Form Factor
SMARC Connector
Audio
2x 12S
Camera
1x MIPI-CSI
I2C
5x I2C
Interfaces - General
1x PCIe
3x USB2
1x GbE
1x SDIO/eMMC
I2C
SPI
UART
GPIO
Operating Temperature
0°C to +70°C (commercial)
-40°C to +85°C (industrial)
Storage
16 GB
Part NumberAdditional DescriptionMemoryOperating Temp (Max) (°C)Operating Temp (Min) (°C)Storage
Universal SMARC Carrier
SMARC_CAR_BRD
Recommended for New Design (RND)
Buy Now
Universal SMARC Carrier Board
Nitrogen8M Mini SMARC - without wireless
8MM_SMARC_SOM_1r16e
Recommended for New Design (RND)
1 GB +70 °C+0 °C16 GB
Nitrogen8M Mini SMARC - without wireless
8MM_SMARC_SOM_2r16e
Recommended for New Design (RND)
Buy Now
2 GB +70 °C+0 °C16 GB
Nitrogen8M Mini SMARC - without wireless
8MM_SMARC_SOM_4r16e
Recommended for New Design (RND)
Buy Now
4 GB +70 °C+0 °C16 GB
Nitrogen8M Mini SMARC - without wireless
8MM_SMARC_SOM_1r16e_i
Recommended for New Design (RND)
1 GB +85 °C-40 °C16 GB
Nitrogen8M Mini SMARC - without wireless
8MM_SMARC_SOM_2r16e_i
Recommended for New Design (RND)
Buy Now
2 GB +85 °C-40 °C16 GB
Nitrogen8M Mini SMARC - without wireless
8MM_SMARC_SOM_4r16e_i
Recommended for New Design (RND)
Buy Now
4 GB +85 °C-40 °C16 GB
Nitrogen8M Mini SMARC - with Sona IF573
8MM_SMARC_SOM_1r16e_IF573_3M
Recommended for New Design (RND)
1 GB +70 °C+0 °C16 GB
Nitrogen8M Mini SMARC - with Sona IF573
8MM_SMARC_SOM_1r16e_IF573_3M_i
Recommended for New Design (RND)
1 GB +85 °C-40 °C16 GB
Nitrogen8M Mini SMARC - with Sona IF573
8MM_SMARC_SOM_2r16e_IF573_3M
Recommended for New Design (RND)
2 GB +70 °C+0 °C16 GB
Nitrogen8M Mini SMARC - with Sona IF573
8MM_SMARC_SOM_2r16e_IF573_3M_i
Recommended for New Design (RND)
2 GB +85 °C-40 °C16 GB
Nitrogen8M Mini SMARC - with Sona IF573
8MM_SMARC_SOM_4r16e_IF573_3M
Recommended for New Design (RND)
4 B +85 °C+0 °C16 GB
Nitrogen8M Mini SMARC - with Sona IF573
8MM_SMARC_SOM_4r16e_IF573_3M_i
Recommended for New Design (RND)
Buy Now
4 B +85 °C-40 °C16 GB

Documentation

Name Part Type Last Updated
Product Brief - Nitrogen8M Mini SMARC All Product Brief 05/13/2024
3D Model (STEP File) - Nitrogen8M Mini SMARC All Technical Drawings 04/18/2024
User Guide - Nitrogen8M Mini SMARC All Documentation 01/02/2024
Wiki - Nitrogen8M Mini SMARC (External Link) All Documentation 01/09/2024
Datasheet - Nitrogen8M Mini SMARC All Datasheet 05/14/2024
Software Wiki - Nitrogen8M Mini SMARC (External Link) All Software 03/19/2024
3D Model (STEP File) - Nitrogen8M Mini SMARC with Sona IF573 All Technical Drawings 05/16/2024
Datasheet - Universal SMARC Carrier (Product Page) All Datasheet 08/22/2023

FAQ

Is Dynamic Voltage and Frequency Scaling (DVFS) enabled by default on the Nitrogen8M Mini?

Yes, DVFS is enabled by default.

The status can be checked by cat'ing the sysfs node below:

/sys/devices/system/cpu/cpu0/cpufreq/stats/time_in_state

This will provide the time spent in each state, thus verifying that DVFS in enabled.


What key is the M.2 slot on the Universal SMARC Carrier board?

The M.2 Slot on the Universal SMARC Carrier board is E key.
