GW16143 High-Precision GNSS/GPS Mini-PCIe Card
Overview
The GW16143 is a high-precision GPS Mini-PCIe card designed to provide precise positioning to applications utilizing Gateworks single board computers.
It provides centimeter-level (<2cm) accuracy (see Note 1) via GNSS positioning with concurrent reception of GPS, GLONASS, Galileo and BeiDou. A MMCX antenna port allows for an external antenna. USB signaling is used on the Mini-PCIe connector to communicate with the host processor. Two UART headers are available for correction data via serial. A time pulse output header provides PPS signaling. To take advantage of faster acquisition times, a rechargeable 3.3V lithium battery is included. For mobile applications, it provides a high update rate. Multi-band Real-time kinematic (RTK) technology provides fast convergence times and reliable performance. The module supports both base and rover operations for RTK applications.
Differential GNSS devices such as the GW16143 are starting to replace survey-grade equipment. Other radio cards such as the Gateworks GW16130 Iridium Satellite Modem or GW16132 CAT-M1 modem can provide communication links for the augmentation data. The GW16143 enables precision navigation and automation of moving machinery in industrial applications such as agriculture, mining, and field mapping.
Specifications
Connectivity
Packaging
Features
Software
Interface
Power
Environment
| Part Number | Price @ 1K | Accessories | Antenna Connector Type | Antenna Type | Channels | Chipset (Wireless) | Connector | Development Kits Available | Development Tools | Dimensions | Form Factor | Included Peripheral | Input Voltage | Interfaces - General | Operating Humidity | Physical Interface | Power Consumption | Product Type | Protocols | Software | System Architecture | Technology | Temperature Range | Weight | Wireless Specification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

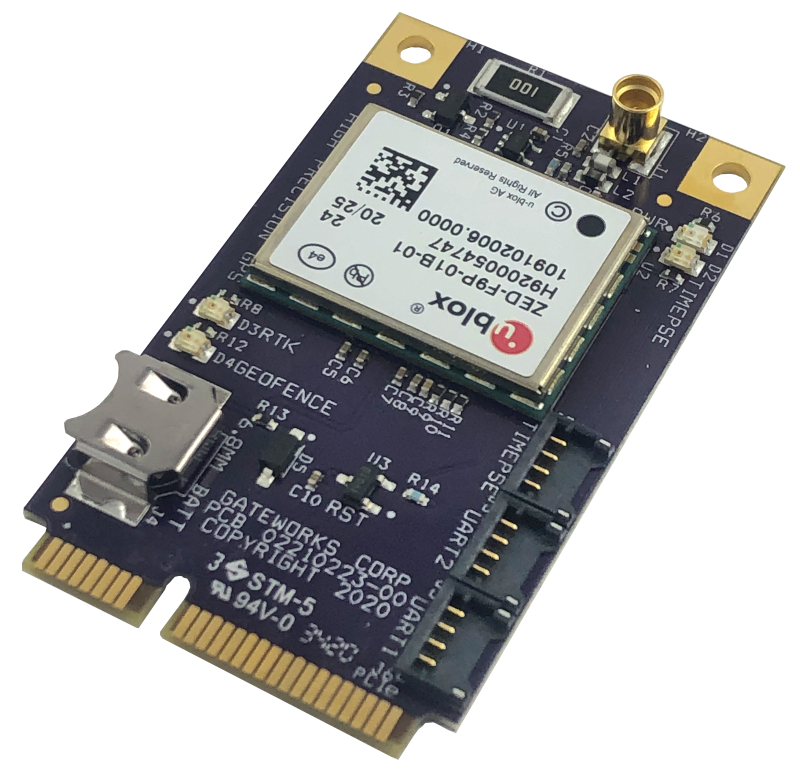

/filters:background_color(white)/2026-09/gw16143-angle-800px.png) GW16143 Active Buy Options | N/A | u-blox ANN-MB-00 multi-band active GNSS antenna recommended; antenna and cables sold separately | MMCX antenna connector; optional u.FL connector | External active multi-band GNSS antenna | Concurrent GPS, GLONASS, Galileo, and BeiDou reception | u-blox ZED-F9P | MMCX antenna connector; u.FL available as a special configuration | GW11048-6 High-Precision GNSS/GPS Development Kit | Gateworks GW16143 Software Wiki | 30.0 x 60.8 x 11.5 mm | Mini-PCIe | Two UART headers, PPS/timepulse header, status LEDs, and rechargeable 3.3 V lithium battery | 3.3 V Mini-PCIe edge connector | USB signaling, two UART interfaces, and PPS/timepulse output | 20% to 90% RH, non-condensing | Mini-PCIe edge connector with USB-to-serial interface | 0.1 A typical operating current | Precision GNSS / GPS Receiver | NMEA, UBX, SPARTN, RTCM 3.x, SSR, and SBAS | Gateworks GW16143 Software Wiki; Linux support | Hosted | Multi-band GNSS with integrated RTK | -40°C to +85°C | 10 g (0.35 oz) | Multi-band GNSS / GPS, RTK |
