BL54H20 Series - Multi-Core Bluetooth LE + 802.15.4 + NFC

Under Development

Overview

The newest entry in our Nordic Semiconductor based Bluetooth LE portfolio is by far the most advanced, most secure, and highest performing multi core MCU architecture wireless solution available anywhere. The BL54H20 series of robust, tiny modules feature the Nordic nRF54H20 SoC. It directly targets the highest-performance processing capabilities with double the application processing (vs. prior BL5340). 2x Cortex-M33 AND 2x RISC-V coprocessors each are optimised for particular workloads. We’ve also scaled up memory to 2MB non-volatile and 1MB RAM.  Featuring BT 5.4, capabilities include support for Bluetooth LE, LE Audio, Bluetooth Mesh, and 802.15.4 protocols including Thread and Matter. It’s further enhanced with state-of-the-art security, designed for PSA Certified level 3, and supports Secure Boot, Secure Firmware Update, Secure Storage, and integrated tamper sensors for physical security. The BL54H20 supports with flexible programming via Canvas Software Suite, Nordic SDK or Zephyr RTOS.

The BL54H20 series brings out all nRF54H20 hardware features and capabilities including high speed USB access, CAN FD controller, 2 x I3C and 14bit ADC, up to +10 dBm transmit power, from 1.9V to 5.5V supply considerations, and a true industrial operating range of -40 to 105°C.

Complete regulatory certifications enable faster time to market and reduced development risk, simplifying your next wireless design!

  • Nordic nRF54H20 – 4.7xmm 4.3 WSCLP with 64 GPIOs available.
  • Antenna choice – integrated pre-certified Chip antenna or external antenna support via MHF4 connector – Integrates Ignion NANO NN02-101 chip antenna for radiated efficiency and optimal location flexibility
  • Small form factor: 13.5 x 10 x 1.8 mm
  • Development choice: Canvas Software Suite, Zephyr RTOS, or Nordic nRF Connect SDK
  • Firmware Over the Air (FOTA) via MCUboot and Zephyr
  • Hostless operation – Multi Core MCU reduces BOM
  • Fully featured development kits to jump start Bluetooth LE development

Contact Us for Early Samples!

This product is currently in development. For early access to engineering samples and evaluation kits, contact us below. Tell us about your application, and get in touch with our experts to jump start your Bluetooth development!


Contact Us

BL54H20,Chip Antenna-front.289.png

Certified Antennas

Ezurio's (formerly Laird Connectivity) wireless modules come pre-certified with many antenna options, including some of our industry-first Flexible PIFA and inverted Flexible PIFA antennas. Our antenna portfolio is customizable with various antenna lengths and connectors, and with wide stock availability through our distribution partners. With our accredited test laboratories and free antenna scans, you can be certain your product meets emissions requirements and successfully leverages our modular approvals.

Explore Internal Antennas


Development Kits

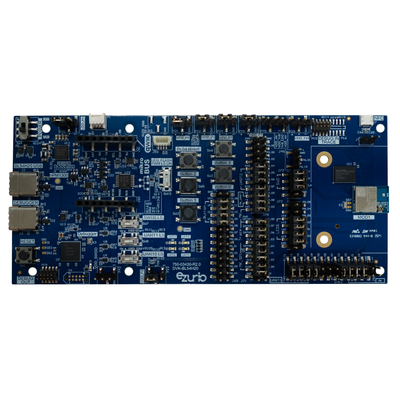

  • 453-00197-K1

    453-00197-K1

    Additional Description
    Development kit, Module BL54H20 (Nordic nRF54H20), Chip antenna
    Learn More
  • 453-00198-K1

    453-00198-K1

    Additional Description
    Development kit, Module BL54H20 (Nordic nRF54H20) – MHF4 Connector
    Learn More

Certified Antennas

  • EFG2400A3S-10MH4L

    EFG2400A3S-10MH4L

    i-FlexPIFA™ Series Inverted Flexible PIFA Antennas
    Learn More
  • 001-0022

    001-0022

    FlexPIFA / FlexPIFA 6E Flexible Adhesive-Backed PIFA Internal Antennas
    Learn More
  • EFA2400A3S-10MH4L

    EFA2400A3S-10MH4L

    mFlexPIFA Flexible Adhesive-Backed PIFA Internal Antenna
    Learn More
  • EBL2400A1-10MH4L

    EBL2400A1-10MH4L

    NanoBlue Series Bluetooth Internal Antenna
    Learn More
  • 0600-00061

    0600-00061

    NFC Flex PCB Antenna
    Learn More

Specifications

Chipset
Nordic nRF54H20 SoC
Chipset (MCU)
2x ARM Cortex-M33 Application processors @ up to 320 MHz
2x RISC-V co-processors @ 320 MHz VPR, 16 MHz VPR
Wireless Specification
Bluetooth LE 5.4
802.15.4
NFC
Memory
2MB non-volatile, 1MB RAM
Operating Temp (Min) (°C)
-40
Operating Temp (Max) (°C)
+105
Dimension (Width - mm)
10
Dimension (Height - mm)
1.8
Dimension (Length - mm)
13.5
Antenna Options
Integrated chip antenna (Ignion NANO NN02-101) OR MHF4 connector
Compliance
FCC/ISED/EU/UKCA/RCM/MIC/KC. Bluetooth and 802.15.4 Certified. (Pending)
Logical Interfaces
USB, CAN FD, NFC A-Tag, I3C, UART, QSPI, SPI, High Speed SPI, SMIF, I2S, I2C, PDM, PWM, ADC, GPIO, QDEC, Comparator, Low Power Comparator
Programming Options
Canvas Software Suite
Nordic nRF Connect SDK
Zephyr RTOS
Receive Sensitivity
-100 dBm
Transmit Power (Max)
Up to +10 dBm
Part NumberAntenna TypeBulk or SingleChipsetFrequency Range (Max)Frequency Range (Min)Interfaces - GeneralOS/SoftwarePackagingProduct TypeSystem ArchitectureTechnology
453-00197C
Chip Antenna Single Nordic nRF54H20 SoC 2480 MHz2402 MHzUSB, CAN FD, NFC A-Tag, I3C, UART, QSPI, SPI, High Speed SPI, SMIF, I2S, I2C, PDM, PWM, ADC, GPIO, QDEC, Comparator, Low Power Comparator Nordic nRF Connect SDK, Zephyr RTOS Cut Tape Embedded Module Hostless Bluetooth 5.4, Single Mode (BLE), 802.15.4, NFC
453-00197R
Chip Antenna Bulk Nordic nRF54H20 SoC 2480 MHz2402 MHzUSB, CAN FD, NFC A-Tag, I3C, UART, QSPI, SPI, High Speed SPI, SMIF, I2S, I2C, PDM, PWM, ADC, GPIO, QDEC, Comparator, Low Power Comparator Nordic nRF Connect SDK, Zephyr RTOS Tape/Reel Embedded Module Hostless Bluetooth 5.4, Single Mode (BLE), 802.15.4, NFC
453-00198C
MHF4 connector Single Nordic nRF54H20 SoC 2480 MHz2402 MHzUSB, CAN FD, NFC A-Tag, I3C, UART, QSPI, SPI, High Speed SPI, SMIF, I2S, I2C, PDM, PWM, ADC, GPIO, QDEC, Comparator, Low Power Comparator Nordic nRF Connect SDK, Zephyr RTOS Cut Tape Embedded Module Hostless Bluetooth 5.4, Single Mode (BLE), 802.15.4, NFC
453-00198R
MHF4 connector Bulk Nordic nRF54H20 SoC 2480 MHz2402 MHzUSB, CAN FD, NFC A-Tag, I3C, UART, QSPI, SPI, High Speed SPI, SMIF, I2S, I2C, PDM, PWM, ADC, GPIO, QDEC, Comparator, Low Power Comparator Nordic nRF Connect SDK, Zephyr RTOS Tape/Reel Embedded Module Hostless Bluetooth 5.4, Single Mode (BLE), 802.15.4, NFC

Documentation

Name Part Type Last Updated
3D Model - BL54H20 Module, MHF4 (453-00198) All Technical Drawings 11/08/2024
3D Model - BL54H20 Module, Chip Antenna (453-00197) All Technical Drawings 11/08/2024
SCH Symbol - BL54H20, Chip ANT (Altium format) All Technical Drawings 02/06/2024
PCB footprint - BL54H20, Chip ANT (DXF and Altium format) All Technical Drawings 10/31/2024
Product Brief - BL54H20 Series All Product Brief 06/20/2024
Datasheet - BL54H20 - PRELIMINARY All Datasheet 11/27/2024
