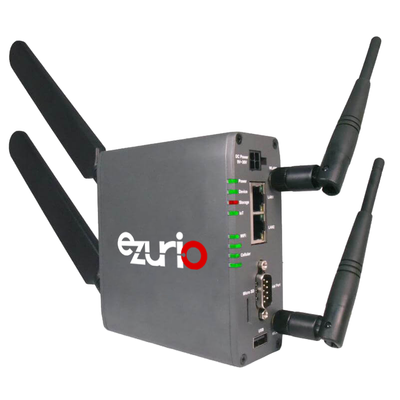

Sentrius IG60-SERIAL and IG60-SERIAL-LTE Wireless IoT Gateways

End of Life (EOL)

Overview

EOL Notice: The IG60-SERIAL and IG60-SERIAL-LTE are EOL as of Nov 18, 2022. See our EOL Notice for more details.

Ezurio's (formerly Laird Connectivity) Sentrius IG60-SERIAL brings all of our industry competence and capabilities into one solution. Based on Laird's 60 Series SOM, send and receive device data via serial (RS232/422/485), with dual-Ethernet, USB, SD micro, Bluetooth, and 2x2 MIMO Wi-Fi. IG60-SERIAL-LTE model features additional LTE Cat-1 functionality (requires active SIM card with supported mobile carrier).

We provide them in two variants:

Laird Linux Version: A rugged, open environment for your application, provided with our Linux build, hardware root of trust, and development tools. Based on our powerful 60 Series SOM. LEARN MORE

AWS IoT Greengrass Version: Features our pre-configured AWS IoT Greengrass sandbox for your IoT applications! Enable just-in-time maintenance, capture sensor data and more for your legacy devices and Bluetooth sensors! LEARN MORE

  • Best-in-Class Wireless Performance - 2x2 MIMO for more robust connections
  • Multiple Ways to Connect - Wi-Fi, Bluetooth, 5, Ethernet, Serial, USB
  • Chain of Trust - signed and secured at every layer to protect your device
  • Industry Leading Support - Global Tier 2 and FAE support for your application

Meet the Sentrius™ IG60 Wireless IoT Gateway

Power Supplies Sold Separately

Don’t forget to also order a power adapter! The IG60 does NOT come with one!

REGION

PART NUMBER

US AC Adapter

223-00007

Europe AC Adapter

223-00008

UK AC Adapter

223-00009

DC Adapter

131-00225


Prove it Works! Request a Whiteboard Session with our team.

Developing and implementing wireless IoT solutions is complex and there are a lot of moving parts. We will help you map it out so you know exactly what you need.

What’s involved:

  • Map the business model
  • Define the technology
  • Tackle tough questions like security, provisioning, and updates at scale
  • Select the right products and applications to meet the technical requirements at the right price points

Talk to our team about getting your application connected to the cloud.

Schedule a Session


Ezurio is an NXP Gold Partner

Ezurio is honored to be approved as an NXP Gold Partner! We look forward to working with the NXP team to deliver the solutions our customers need in an ever changing wireless future. Please follow the link for more information.

Learn More


Specifications

Certifications
FCC, ISED, EU, UKCA, UL/IEC62368-1
Chipset (Wireless)
Marvell 88W8997/88PG823
Dimensions
85 mm x 22 mm x 100 mm
Flash Storage
512 MB NAND Flash
Memory
256 MB LPDDR RAM
Mounting Style
DIN-rail or wall mount
Physical Interface
2x Serial (RS232/422/485), 1x USB 2.0 Host, 1x MicroSD slot, 2x SMA antenna connector
Security
Chain of Trust - hardware root of trust tools. WEP/WPA/WPA2 wireless security.
Temperature Range
-30° to +85° C (-22° to +185° F)
Voltage
9-30 V DC
Wireless Specification
802.11ac with 2x2 MU-MIMO, Bluetooth 5
Part NumberAdditional DescriptionAntenna TypeChipset (Wireless)Frequency Range (Max)Frequency Range (Min)Frequency Range 2 (Max)Frequency Range 2 (Min)Logical InterfacesOS/SoftwareProduct TypeSoftwareSystem ArchitectureTechnology
131-00225Buy NowDC Cable (Global), 20AWG, UL2464, 41 Strands, Black
223-00007Buy Now
AC Adapter (US), 12V-4A, US, 4-pin 7.5mm x 9.2mm Plug
223-00008Buy Now
AC Adapter (Europe), 12V-4A, EU, 4-pin 7.5mm x 9.2mm Plug
223-00009Buy Now

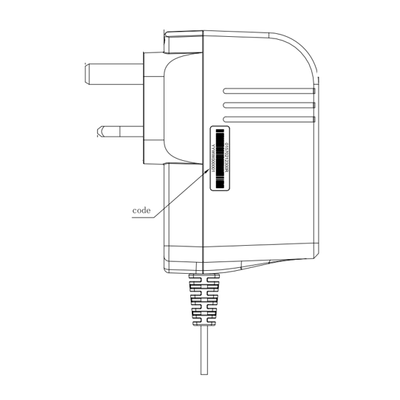

AC Adapter (UK), 12V-4A, UK, 4-pin 7.5mm x 9.2mm Plug
IG60
455-00006
End of Life (EOL)
Buy Now
Sentrius™ IG60-SERIAL Gateway Laird Linux Software Build External NXP (Marvell) 88W8997 2483 MHz2400 MHz5825 MHz5150 MHzUSB, Ethernet, Micro SD Laird Linux IoT Gateway Pre-Compiled images (or from source). Includes our BSP, Eclipse IDE support, and SDK Hostless 802.11ac, Bluetooth 5.1, Dual Mode (Classic + BLE)
IG60
455-00008
End of Life (EOL)
Buy Now
Sentrius™ IG60-SERIAL Gateway with AWS Greengrass External NXP (Marvell) 88W8997 2483 MHz2400 MHz5825 MHz5150 MHzUSB, Ethernet, Micro SD AWS IoT Greengrass IoT Gateway Integrated AWS Greengrass. Continuous over-the-air software updates from Laird for 3 years. Security built-in. Hostless 802.11ac, Bluetooth 5.1, Dual Mode (Classic + BLE)
IG60-SERIAL-LTE IoT Gateway
455-00084
End of Life (EOL)
Buy Now
Sentrius™ IG60-SERIAL-LTE Gateway Laird Linux Software Build External NXP (Marvell) 88W8997 2483 MHz2400 MHz5825 MHz5150 MHzUSB, Ethernet, Micro SD Laird Linux IoT Gateway Pre-Compiled images (or from source). Includes our BSP, Eclipse IDE support, and SDK Hostless 802.11ac, Bluetooth 5.1, Dual Mode (Classic + BLE)
IG60-SERIAL-LTE IoT Gateway
455-00085
End of Life (EOL)
Buy Now
Sentrius™ IG60-SERIAL-LTE Gateway with AWS Greengrass External NXP (Marvell) 88W8997 2483 MHz2400 MHz5825 MHz5150 MHzUSB, Ethernet, Micro SD AWS IoT Greengrass IoT Gateway Integrated AWS Greengrass. Continuous over-the-air software updates from Laird for 3 years. Security built-in. Hostless 802.11ac, Bluetooth 5.1, Dual Mode (Classic + BLE)

Documentation

Name Part Type Last Updated
Product Brief - IG60-BL654 and IG60-SERIAL All Product Brief 09/05/2024
Online Guide - IG60-SERIAL with AWS Greengrass All Documentation 03/19/2020
Online Guide - IG60-SERIAL with Laird Linux All Documentation 03/19/2020
UL - Notice of Authorization for UL Mark All Certification 04/02/2020
EU Certifications - IG60-SERIAL All Certification 12/01/2022
LVD_IG60-SERIAL All Certification 05/29/2020
EU Certifications - IG60-SERIAL-LTE All Certification 12/01/2022
FCC Certifications - IGUP-CAT1 All Certification 05/29/2020
MIC Certifications - IGUP-CAT1 All Certification 12/17/2020
ISED (Canada) Certifications - IGUP-CAT1 All Certification 12/17/2020
131-00225_3M DC Cable - Mechanical Drawing All Technical Drawings 07/02/2020
Notice of Network Compatibility - IG60-Serial All Certification 07/21/2020
EOL Notice - 223-00004 (Power Supply) All Documentation 10/01/2020
FCC and ISED Certifications - IG60-Serial All Certification 12/17/2020
FCC Certifications - IG60-Serial-LTE All Certification 12/17/2020
ISED (Canada) Certifications - IG60-Serial-LTE All Certification 12/17/2020
Regulatory Information - IG60-SERIAL/IG60-SERIAL-LTE All Certification 03/17/2023
ISED ICES-003 Issue 7 Declaration of Compliance All Certification 05/18/2021
PCN 11B-2021 - IG60 Series All Documentation 11/30/2021
EOL Notice - IG60-SERIAL and IG60-SERIAL-LTE All Documentation 11/23/2022
Product Brief - 223-00007 - Sentrius IG60 AC Power Adapter, US 223-00007 Product Brief 09/13/2024
Product Brief - 223-00008 - Sentrius IG60 AC Power Adapter, EU 223-00008 Product Brief 09/13/2024
Product Brief - 223-00009 - Sentrius IG60 AC Power Adapter, UK 223-00009 Product Brief 09/13/2024
Product Brief - 131-00225 - Sentrius IG60 DC Power Adapter 131-00225 Product Brief 09/13/2024

FAQ

How do I configure my network connection?

NMCLI should be utilized to configure network interfaces.

Is it possible to build software packages directly on SOM60 / IG60?

While for the Linux enthusiat it is surely not impossible to build and image for the SOM60 or IG60 that supports on device build capabilities with the given tools, it is neither intended by Laird, nor is it supported.

Reason for this are the limited resources (memory and processing power) an embedded module such as SOM60 and an embedded gateway like the IG60 can offer for on device building capabilities.

The preferred method would be to include any packages desired on the SOM60 or IG60 into the Buildroot SDK.


How can I add my files to a Laird Linux build?

To add files to a Laird Linux build, enable "BR2_ROOTFS_OVERLAY" in your config and provide it with an absolute path to the directory you would like to overlay.  Files in this directory will be inserted relative to "/".  For example, if you would like to add files to "/etc" and the path to the overlay directory is "/buildroot/overlay", create a directory "/buildroot/overlay/etc/<files>".

Should I use Adaptive World Mode when hosting an AP?

Adaptive World Mode should not be used when hosting an AP.  The channel hopping algorithm can cause disconnect issues in some cases.  The best option is to set the regulatory domain in firmware manually, but at the minimum the "adaptive_ww" service should be disabled.

How do I set up a Wi-Fi Bridge connection?

Laird has added custom packages to Laird Linux.  These can be found in "menuconfig", under the "Ezurio" / "Packages" section.

To enable a Wi-Fi bridge, select the package "BR2_PACKAGE_LRD_WIFI_BRIDGE" and then set the destination interface. For example, set the destination interface to "Ethernet" if you would like to bridge the Wi-Fi to a wired connection.


Installing and configuring REPO the easy way!

The repo tool is often available to be installed using a package manager. In the case you're facing challenges with this method, or would like to directly add the repo files to your path, the following commands can be used:

sudo wget https://storage.googleapis.com/git-repo-downloads/repo -O /usr/local/bin/repo
sudo chmod a+rx /usr/local/bin/repo

When you run the "repo init" command for the first time you will be asked to configure your name and email. You can also set these values with the following commands:

git config --global user.email "you@example.com"
git config --global user.name "Your Name"
git config --global color.ui true

IG60 How to set static IP in Laird Linux

Use Network Manager to set an IP address as static in Laird Linux.  In the example below the IP address of ETH0 will be set to 192.168.2.150.

nmcli con add type ethernet con-name "static-ip" ifname eth0 ipv4.method manual ipv4.addresses 192.168.2.150/24
nmcli connection show
nmcli dev status

Does IG60 support Greengrass V2?

Yes, but it requires integrating Canvas Device Manager and EdgeIQ. This currently is only supported for high volume customers. Please contact your local Laird sales representative if need be.

How do I disable the changing of the MAC address after each reboot for the IG60 and 60-SOM DVK running off an SD card with Laird Linux

You need to boot into Linux and after Login log in issue the command

fw_setenv ethaddr <desired MAC address>

for example:

fw_setenv ethaddr AABBCCDDEEFF

and reboot

You can read out the address previously set with:

fw_printenv ethaddr

Is there an external IO pin on the IG60 Laird Linux I can use for my purposes?

Yes, there is one pin (4) on the power supply connector that can either be configured as an input or output.

The same pin can be connected to the AD converter of the IG60s host processor by software.

Consult Lairds application note "Configuring external I/O pin of the IG60 Laird Linux variant as input or output" to configure pin4 and this tutorial to use the AD converter on the host processor:

https://lairdcp.github.io/guides/60-som-dvk-docs/1.0/ad-converter-tutor…

How do I find out which clients are connected to the soft AP I created using my Laird Wifi module with Linux

Once you have created the soft AP on your Linux system and have successfully connected clients to the soft AP you can issue the command

# iw wlan0 station dump

to get a list of connected clients. Note: the interface name (here: wlan0) might be different in your system.

How do I set up an open hotspot using Network Manager?

You can use the Network Manager command line interface to create an open hotspot using this command:

nmcli con add con-name open_hotspot ifname wlan0 type wifi ssid yourSSID mode ap wifi.band bg wifi.channel 6 ipv4.method shared

What is IP rating

IP stands for Ingress Protection. Its a standard we use to check the sealability of a product once it is installed.

It is composed as IP## , where first digit is for dust/solid objects and the 2nd digit, is for liquids.
Here is the meaning for each numerical code:

First Digit Description
0 No protection
1 Ingress of solid object diameter 50 mm is protected
2 Ingress of solid object diameter 12.5 mm is protected
3 Ingress of solid object diameter 2.5 mm is totally protected
4 Ingress of solid object diameter 1.0 mm is totally protected
5 Protected against harmful dust
6 Totally protected against dust

2nd Digit Description
0 No protection no protection against liquid object No test
1 Protection against water drop vertically
2 Protection against water drop 15° Tilt from its normal position
3 Protection against water spray 60° from the vertical direction
4 Protection from water splash from all direction
5 Protection from water jets from all direction
6 Protection from strong water jets from all direction
7 Protection from water dip 1 m depth water for 30 min
8 Protection from water sink should be decided between customer and manufacturer
