Nitrogen HMI
Overview
New: Our fully-featured Nitrogen HMI Kit!

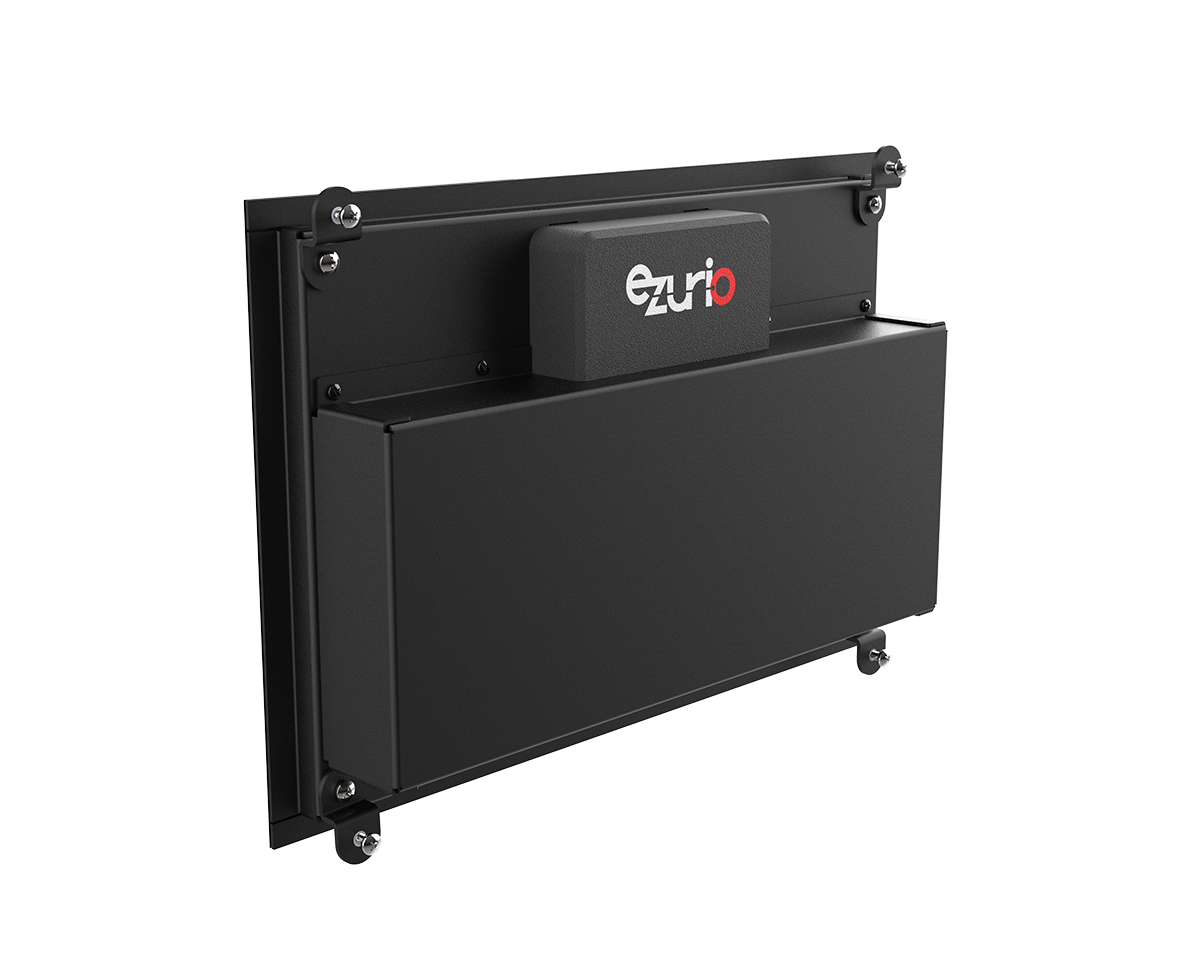

Ezurio's Nitrogen Human Machine Interface (HMI) delivers a fully integrated 10.1" capacitive touchscreen, powered by our Nitrogen8M Plus SMARC SOM and a dedicated HMI carrier board. With integrated Sona NX611™ Wi-Fi 6 and Bluetooth 5.4 connectivity, AI acceleration, and long-term support, it comes fully enclosed, pre-wired, and ready for deployment.
Backed by Ezurio's engineering services and Support+, the Nitrogen HMI offers a production-ready interface for next-generation IoT devices. Achieve faster time-to-market, reduced development risk, and superior wireless performance, all from a single trusted partner.
- Pre-configured HMI Platform: Ready to deploy 10.1” touch display, Nitrogen8M Plus SMARC SOM, a dedicated HMI carrier board, all enclosed in a rugged mechanical housing.
- Powered by Nitrogen8M Plus SMARC: Quad-core Cortex-A53 up to 1.8GHz, Cortex-M7 at 800MHz, with 2.3 TOPS NPU for edge AI, 1080p60 video, audio DSP, and optional Wi-Fi 6 or 6E + Bluetooth 5.4 connectivity.
- I/O and Interface Flexibility: Modified carrier board for key interfaces: CAN, RS485, serial, SPI, GPIO, USB, HDMI, and audio.
- Display Size: 10.1” touch-capacitive display with 1080p60 resolution. 7” and 15.6” touchscreens are available upon request. Are based on the same platform and can be supported through custom design.
- HMI-Specific Carrier Board: HDMI, DisplayPort, LVDS, MIPI display and camera support, dual GbE, USB, PCIe, and industrial I/O.
- Kit Configuration Available(-H4): Ships with power supply and cables to allow for immediate out-of-box testing and streamlined system bring up.
- US Based Manufacturing: Built in our ISO13485 certified Irvine, California facility.
- Diverse Software and Board Support Options: Choose from Yocto Linux/Buildroot Linux/Android/Ubuntu for Cortex-A53s, Zephyr RTOS/FreeRTOS for the Cortex-M7.

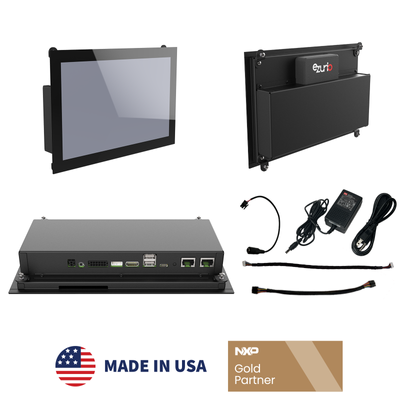

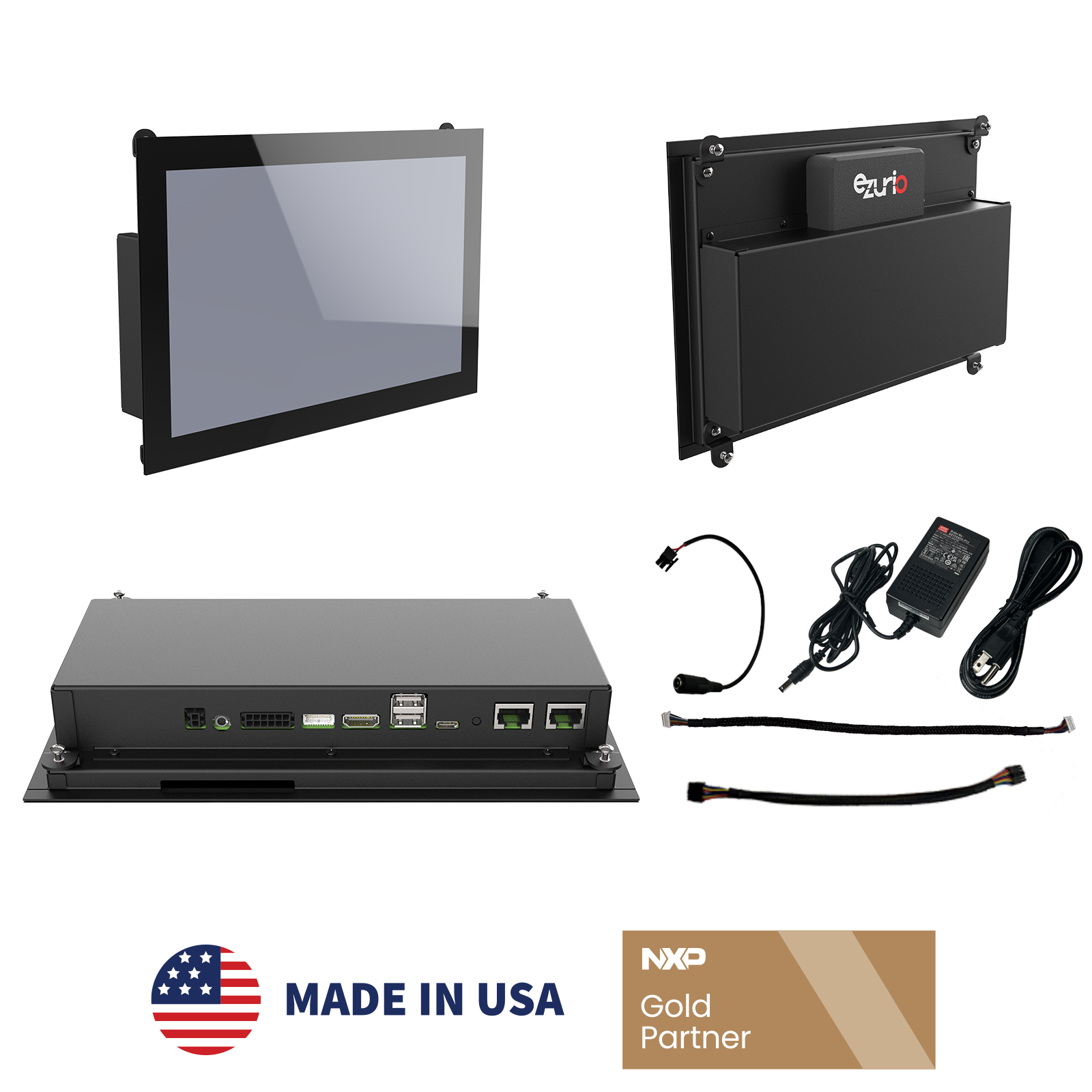

New: Nitrogen HMI Kit
Everything you need to develop your next HMI system—right out of the box. The Nitrogen HMI Kit includes a 10.1-inch industrial touchscreen, Nitrogen SMARC SOM with NXP i.MX 8M Plus, a power supply and cables for immediate bring-up, including:
- Power Cable (DC Barrel Plug, US 2-pin)
- Expansion Cable (12-pin Micro-Fit)
- GPIO Cable (20-pin JST SHDR)
- US 3-pin Power Supply

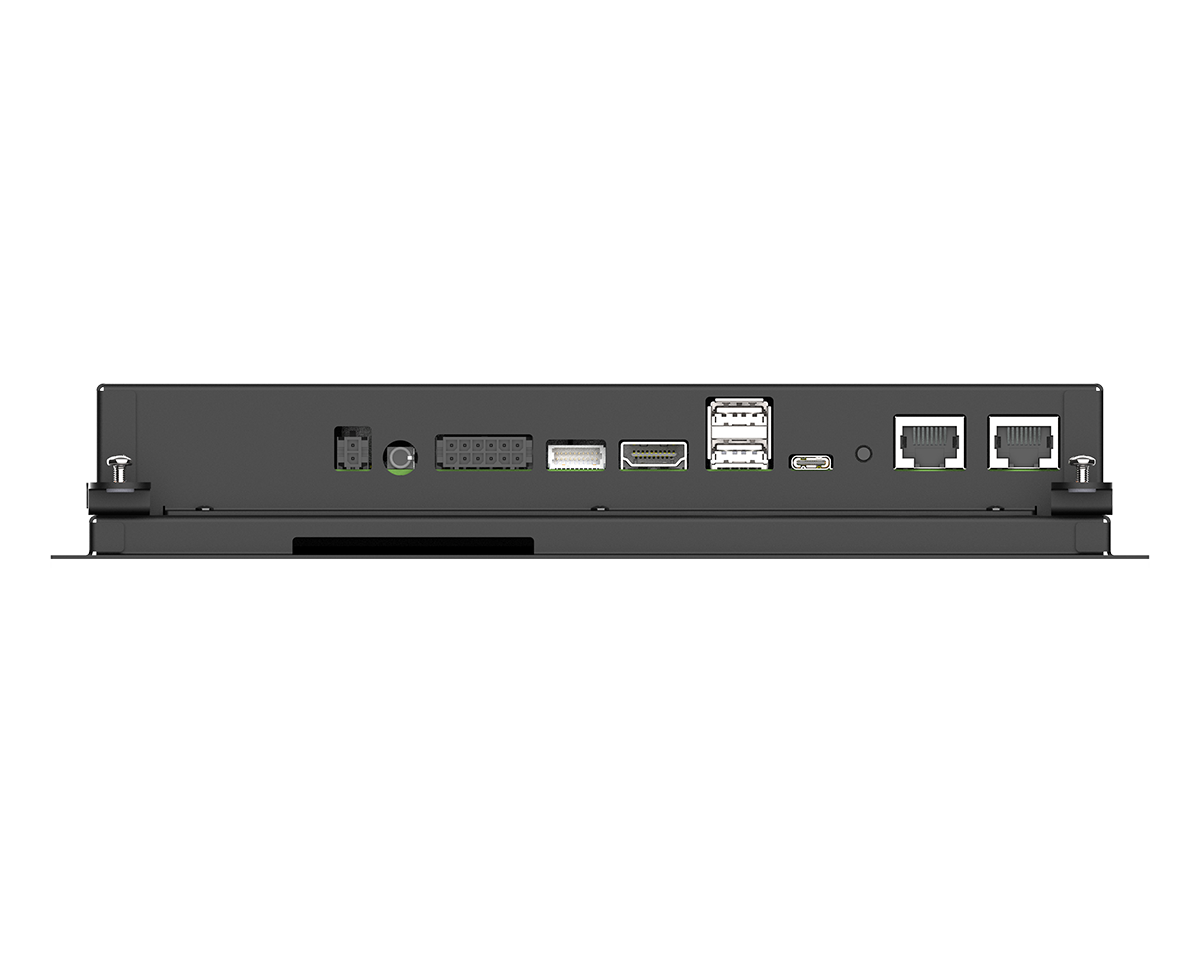

It also features a full suite of interfaces: USB 3.0, HDMI, dual Gigabit Ethernet, UART, CAN, I2C, SPI, GPIO, and RS485, with 16GB memory and 4GB storage.
Need a Custom HMI?
Phase 1: Specification
- Choose from a range of SMARC SOMs for scalability
- Define HMI specifications (display size, processor type, memory).
Phase 2: Design
- Tailor user experience with configurable touch displays and integrated boards.
- Optimize HMI with interface options including HDMI, DisplayPort, and wireless connectivity.
Phase 3: Build
- Let us help with prototyping to production with optimized operating systems.
- Benefit from our made in USA products with long-term HMI lifespan.
Our Hardware Upgrade Roadmap
As a full-service HMI provider, we offer both standard and customized systems, equipped with the latest processors and connectivity options to keep you ahead in today’s competitive landscape.
Stay ahead of the curve with easy upgrades to the latest processors and wireless modules. Our roadmap for SOMs based on the SMARC standard includes:
- High-End: Tungsten700 SMARC
- Upper Mid-Range: Tungsten510 SMARC
- Mid-Range: Nitrogen8M Plus SMARC & Nitrogen8M Mini SMARC
- Value: Nitrogen93 SMARC
Specifications
(7" or 15.6" upon request)
(Choose from our scalable NXP i.MX processors upon request)
300 nits brightness
1x USB 2.0 (Type-C)
1x HDMI
2x RJ45 gigabit Ethernet connectors
3x UART
2x CAN
5x I2C
2x SPI
14x GPIO
RS485
(Custom HMI: Wi-Fi 5 / 6 / 6E + Bluetooth 5.x module options)
| Part Number | Price @ 1K | Additional Description | Cable | Chipset | Chipset (Wireless) | Interfaces - General | Memory | Product Type | Storage | Wireless Specification |
|---|---|---|---|---|---|---|---|---|---|---|

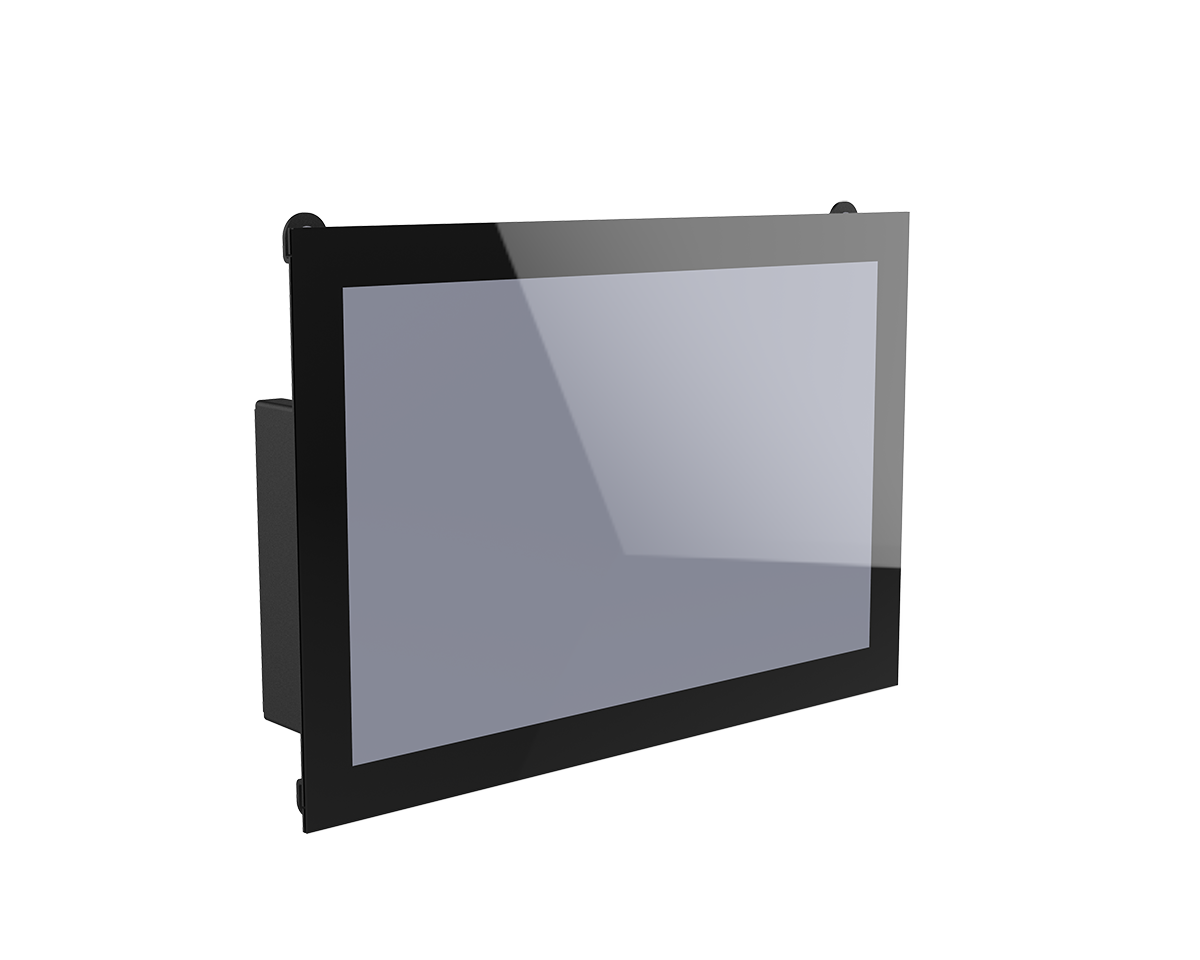

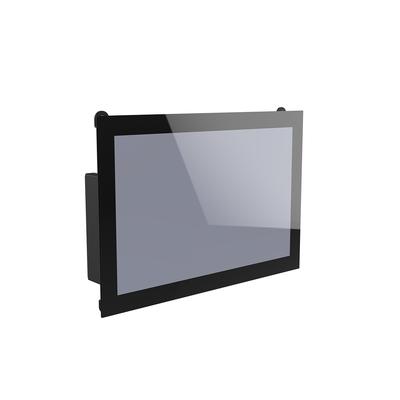

/filters:background_color(white)/2025-04/HMI%20front%20left1.517.png) EZSMI-8MP-0416-00158-2-H2 Active Buy Options | N/A | Nitrogen HMI - Nitrogen8M Plus SMARC | NXP IW611 (Sona NX611 Module, antenna on back) | 16 GB | HMI | 4 GB | ||||

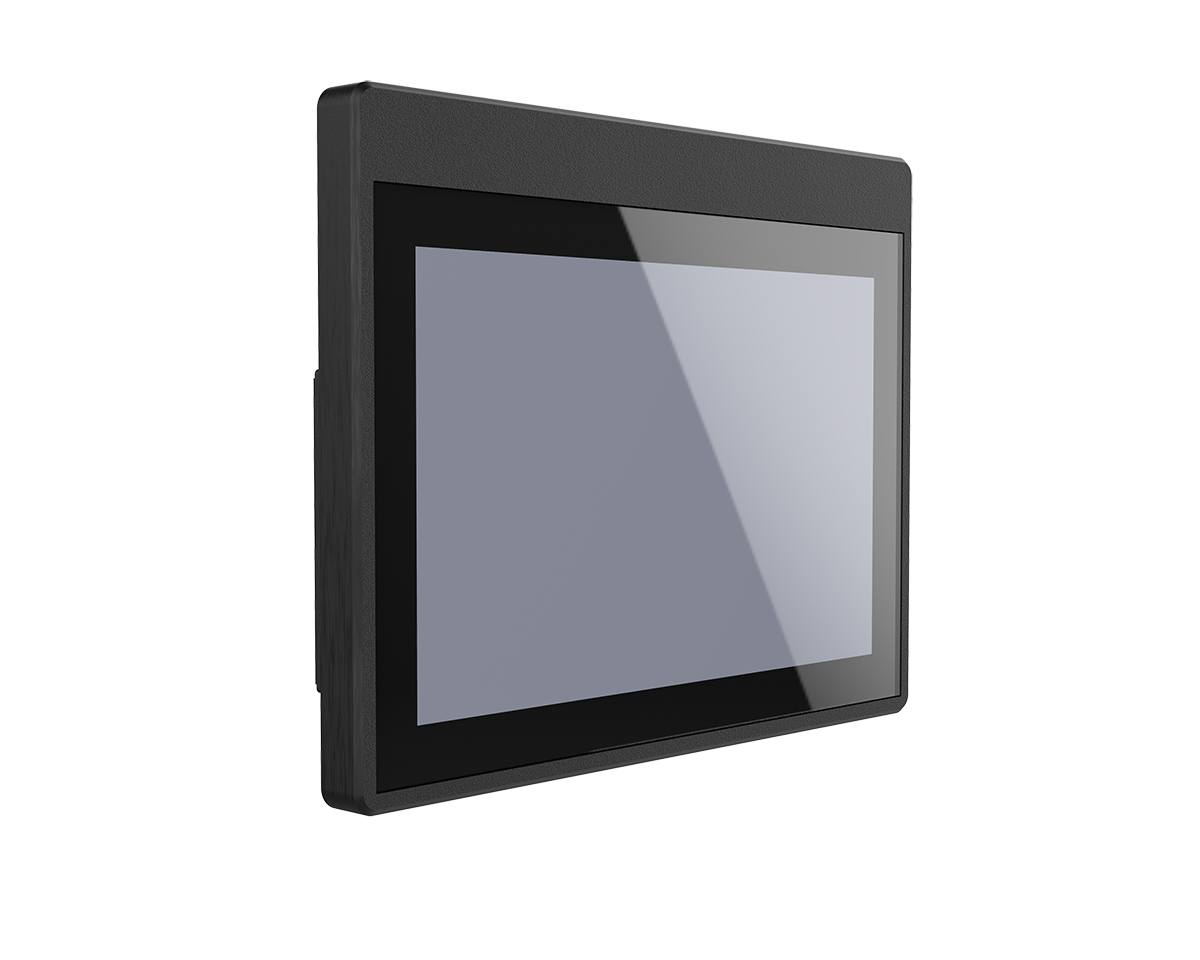

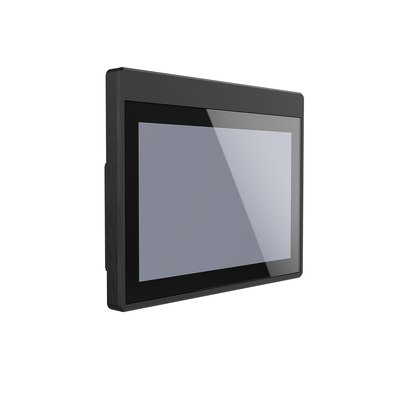

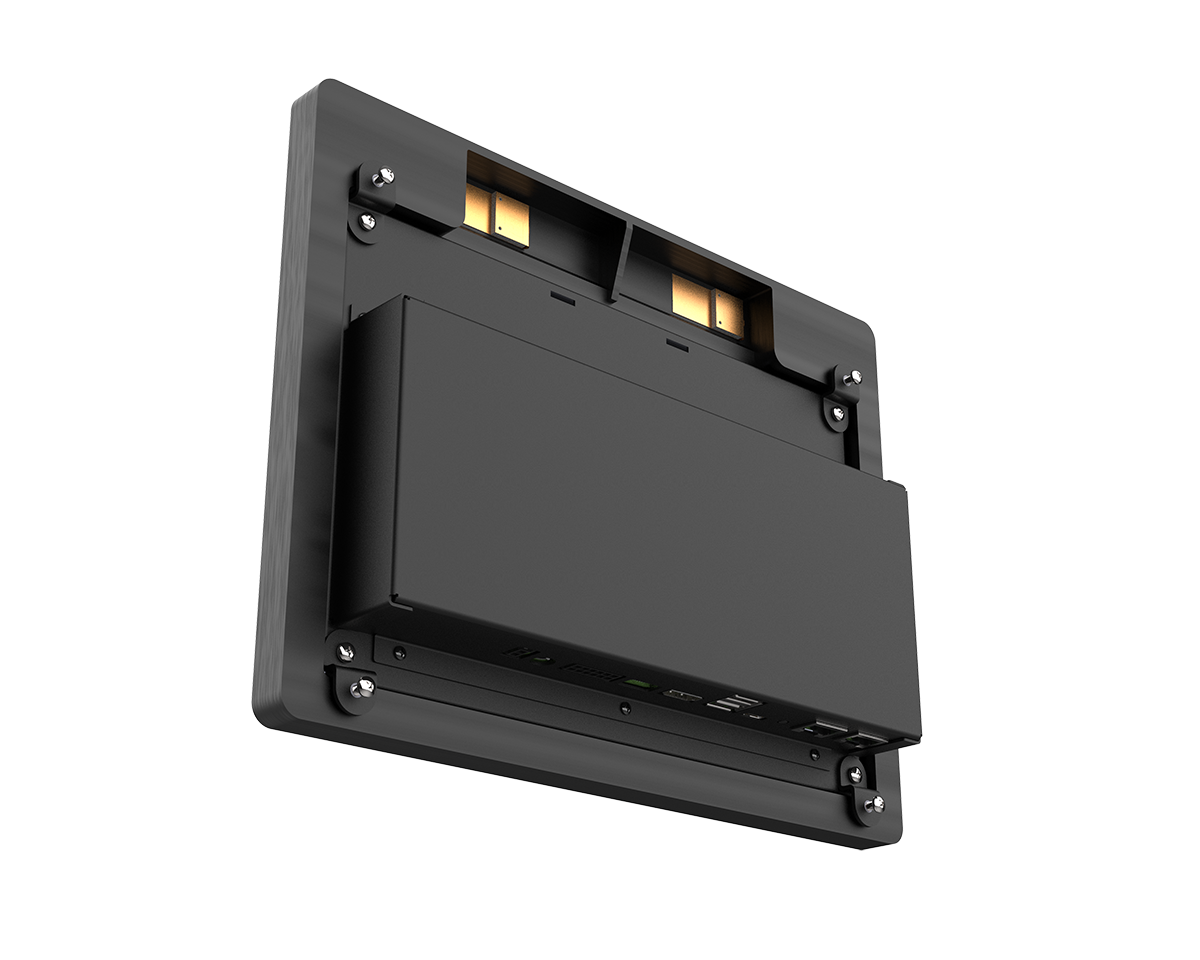

/filters:background_color(white)/2025-04/HMI%20with%20Bezel%20Left1.515.png) EZSMI-8MP-0416-00158-2-H3 Active | N/A | Nitrogen HMI - Nitrogen8M Plus SMARC | NXP IW611 (Sona NX611 Module, antenna bezel) | 16 GB | HMI | 4 GB | ||||
/filters:background_color(white)/2025-10/Nitrogen8M%20HMI%20-%20Kit.png) EZSMI-8MP-0416-00158-2-H4 Active Buy Options | N/A | Ships with power supply and evaluation cables to allow for immediate out-of-box testing and streamlined system bring up. | Box includes: // Power Cable: DC Barrel Plug, US 2 pin // Expansion Cable: 12pin Micro-Fit, 1 to 1 assembly // GPIO Cable: 20pin JST SHDR, 1 to 1 assembly // Power Supply (US, 3-pin) | i.MX 8M Plus | NXP IW611 (Sona NX611 Module, antenna on back) | 2x USB 3.0 (type A), 1x USB 2.0 (type C), 1x HDMI, 2x RJ45 gigabit Ethernet connectors, 3x UART 5Mbit/s, 2x CAN, 5x I2C, 2x SPI, 14x GPIO, RS485 | 16 GB | HMI Kit | 4 GB | NX611 Wi-Fi 6; Bluetooth 5.4 |
Documentation
Browse Datasheets and Product Briefs in our Support & Documentation Center.
