    EZSMI-8MP-0416-00158-2-H4

    Recommended for New Design (RND)

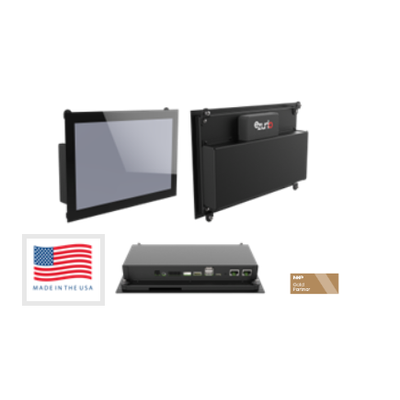

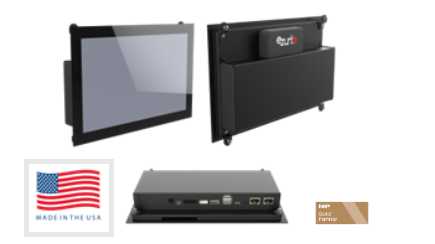

    Everything you need to develop your next HMI system—right out of the box. The Nitrogen HMI Kit includes a 10.1-inch industrial touchscreen, Nitrogen SMARC SOM with NXP i.MX 8M Plus, a power supply and cables for immediate bring-up, including Power Cable (DC Barrel Plug, US 2-pin), Expansion Cable (12-pin Micro-Fit), GPIO Cable (20-pin JST SHDR), US 3-pin Power Supply.

    It also features a full suite of interfaces: USB 3.0, HDMI, dual Gigabit Ethernet, UART, CAN, I2C, SPI, GPIO, and RS485, with 16GB memory and 4GB storage.

    See below for ordering information.

    Specifications

    Features

    Additional Description
    Ships with power supply and evaluation cables to allow for immediate out-of-box testing and streamlined system bring up.
    Storage
    4 GB
    Memory
    16 GB

    Connectivity

    Chipset (Wireless)
    NXP IW611 (Sona NX611 Module, antenna on back)
    Wireless Specification
    NX611 Wi-Fi 6; Bluetooth 5.4

    Processing

    Chipset
    i.MX 8M Plus

    Interface

    Interfaces - General
    2x USB 3.0 (type A), 1x USB 2.0 (type C), 1x HDMI, 2x RJ45 gigabit Ethernet connectors, 3x UART 5Mbit/s, 2x CAN, 5x I2C, 2x SPI, 14x GPIO, RS485
    Cable
    Box includes:
    Power Cable: DC Barrel Plug, US 2 pin
    Expansion Cable: 12pin Micro-Fit, 1 to 1 assembly
    GPIO Cable: 20pin JST SHDR, 1 to 1 assembly
    Power Supply (US, 3-pin)

    Packaging

    Product Type
    HMI Kit

    Documentation

    Browse Product Briefs in our Support & Documentation Center.

    Browse EZSMI-8MP-0416-00158-2-H4 Documentation
