GW11062-2
GW11062-2
Recommended for New Design (RND)
The GW11062-2 is an AI development kit featuring the Catalina GW9201-S02-F1M1-F2E0 SBC and an 8GB GW16168-SP520 M.2 AI accelerator. It provides a complete hardware and software platform for evaluating NXP Ara240 edge AI processing in industrial and embedded applications.
Specifications
Features
Additional Description
Complete out-of-box development kit for evaluating the GW16168-SP520 M.2 Ara240 DNPU AI accelerator
Security
TPM 2.0, NXP EdgeLock SE052F, FIPS 140-3 Level 3, Common Criteria EAL 6+, Secure Boot and Root of Trust
Additional Features
40 eTOPS AI performance with GW16168-SP520; 4GB LPDDR5; 64GB eMMC; 15W available for flexible sockets
Packaging
Product Type
Development Kit
Development Kit Contents

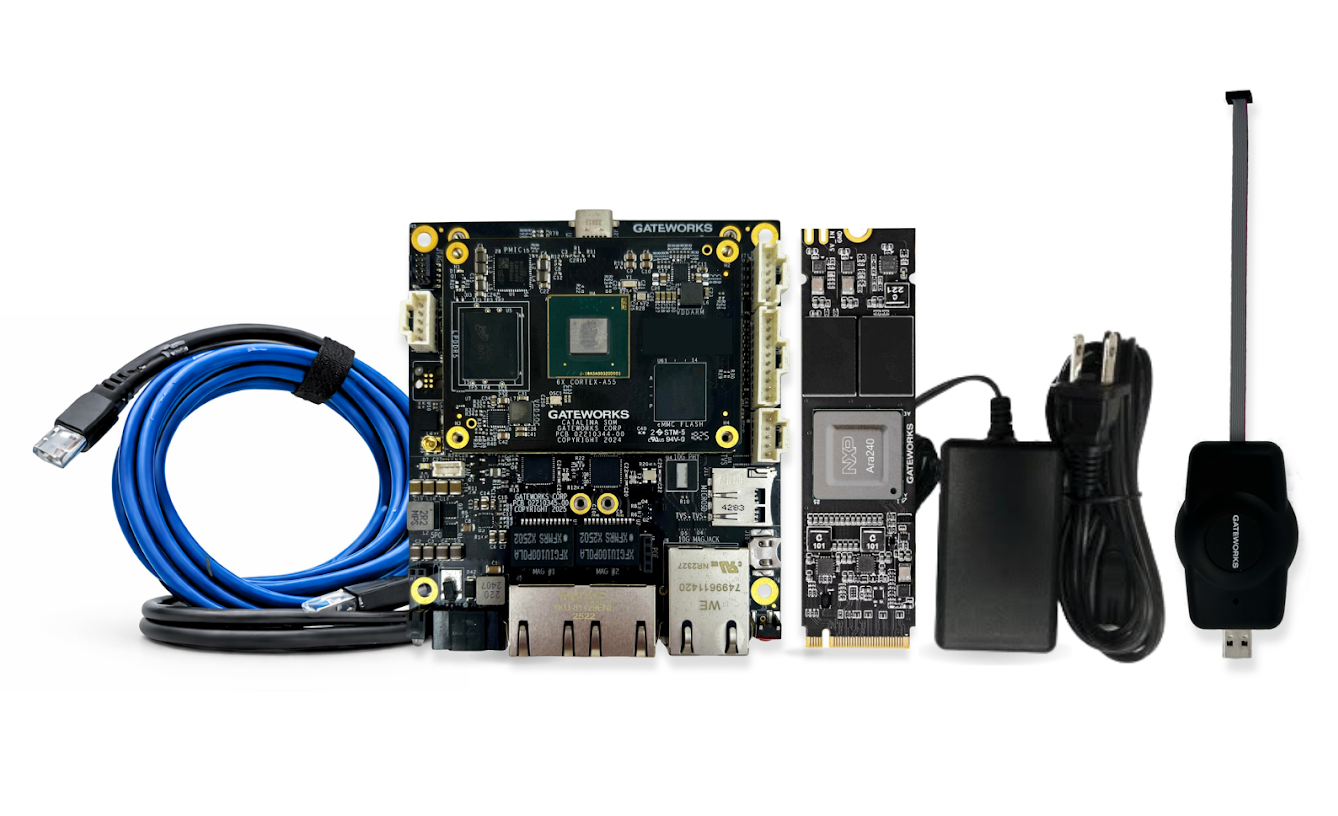

GW9201-S02-F1M1-F2E0 SBC, GW16168-SP520 accelerator, JTAG programmer, power supply, accessory cables, U-Boot, Ubuntu Linux BSP, GW16FM1 M.2 M-Key adapter, and GW16FB0 M.2 E-Key adapter
Dimensions
90 x 100 x 21 mm
Interface
Technology
Edge AI acceleration
Included Gateway
Catalina GW9201-S02-F1M1-F2E0 SBC
Included Peripheral
GW16168-SP520 M.2 AI accelerator with 8GB LPDDR4
Physical Interface
M.2 M-Key 2280 PCIe Gen4 x4 accelerator interface; M.2 E-Key expansion interface
Interfaces - General
1x 10GbE, 2x GbE, USB-C 2.0, MIPI-DSI/CSI, CAN, serial, I2C, SPI, and M.2 expansion
Software
Software
Ubuntu Linux BSP; Buildroot optional; TensorFlow, PyTorch, and ONNX support
Power
Power Consumption
163 mA typical at 24 VDC
Input Voltage
8 to 60 VDC input
Processing
Chipset
NXP i.MX95 six-core 1.8GHz Cortex-A55 plus NXP Ara240 DNPU
Environment
Operating Humidity
20% to 90% RH, non-condensing
Temperature Range
-40°C to +85°C
