GW9200-S00
    Contact Us

    GW9200-S00

    Recommended for New Design (RND)

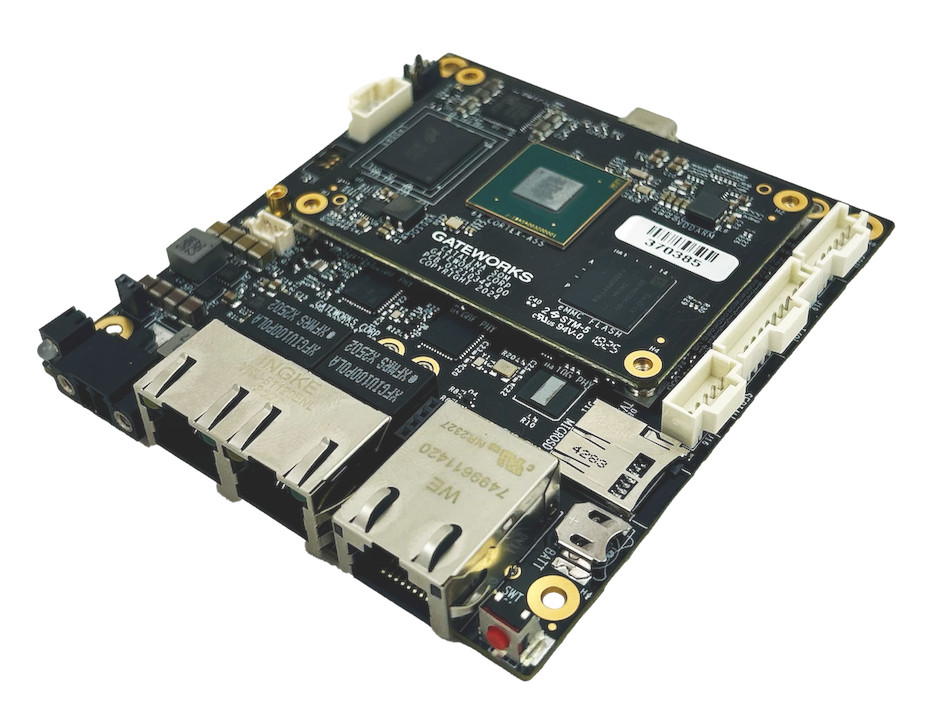

    The GW9200-S00 is a member of the Gateworks 9th generation Catalina family of rugged and industrial single board computers.

    The Catalina GW9200 series of industrial-grade single board computers are built on the NXP i.MX95 processor. Featuring CE-ready design, one 10-Gigabit Ethernet port, two Gigabit Ethernet ports and two flexible expansion sockets (Mini-PCIe, M.2, and more), it delivers high-performance connectivity and expandability. Made in the USA for uncompromising quality and reliability, Catalina is ideal for demanding embedded applications such as IoT gateways, machine learning at the edge, unmanned aerial vehicle (UAV) systems, and robotics platforms.

    Specifications

    Processing

    Processor On Board
    NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55

    Features

    Memory
    4 GB LPDDR5
    Flash Storage
    8 GB eMMC
    Development Kits Available
    GW11059 (includes JTAG programmer, power supply and appropriate accessory cables )
    Additional Description
    GW9200 Baseboard and GW9000 SOM

    Interface

    Interfaces - General
    Two Gigabit Ports, Optional 10 Gigabit Port
    Physical Interface
    Two Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc)
    Video Features
    MIPI-DSI or MIPI-CSI (Shared)
    Cellular Ports
    Use Mini-PCIe Modem
    GPS Ports
    None

    Connectivity

    Wi-Fi Interfaces
    Use Mini-PCIe Cards or M.2 Adapter

    Software

    Software
    Linux Ubuntu Board Support Package

    Packaging

    Size
    90 x 100mm

    Environment

    Temperature Range
    -40°C to +85°C

    Distributors

    Sorry, no inventory of this part found at this time. Please contact us to purchase.
