FlexPIFA & 6EEFB2471A3S-10MH4LEFB2471A3S-10MHF1
A wire with a red square and a black background Description automatically generated with medium confidence

In 2020 the FCC announced the allocation of a new frequency spectrum for Wi-Fi applications, extending the frequencies up to 7125 MHz.

FlexPIFA 6E antennas support the full Wi-Fi spectrum of 2400-2500, 4900-5925, and 5925-7125 MHz frequency bands. This makes them an ideal solution for coverage of traditional Wi-Fi frequencies with the addition of futureproofing for newly emerging Wi-Fi 6E applications.

Designed for rapid integration into space-constrained devices and housings, the flexible, adhesive-backed antennas are available with MHF1 or MHF4L connectors, providing multiple installation solutions for IoT device manufacturers.

PIFA antenna technology provides consistent, stable performance across all three Wi-Fi bands, ensuring a solid and reliable connection at all times

Features and Benefits

  • Full Coverage – Operates over all three Wi-Fi bands
  • Performance – Exceptional performance across all bands
  • Versatile – Flexible, peel-and-stick adhesive-backed antenna for a variety of space-constrained IoT devices
  • Future-Proofed – Coverage for emerging Wi-Fi 6E applications
  • Reliable – PIFA technology is easy to integrate into IoT devices and less likely to detune in proximity of metal or a human body
  • Quality – Designed and built to exacting specifications

Applications

  • Smart metering and utilities
  • Industrial IoT
  • Agricultural and rural (Farm sense and control)
  • Quick service restaurants
  • Smart lockers
  • Medical devices
ELECTRICAL SPECIFICATIONS
Number of Ports1
Operating Frequency (MHz)2400-25004900-59255925-7125
VSWR – Avg1.4:11.9:11.6:1
VSWR – Max<2.5:1<3.0:1<3.0:1
Peak Gain – (dBi) *2.23.93.8
Efficiency – Avg (%)596060
Efficiency – Avg (dB)-2.3-2.2-2.2
Nominal Impedance (ohms)50
Max Power - Ambient 25°C (W)5
PolarizationLinear
Azimuth Beamwidth360°, Omnidirectional

Note: Measured on a 100 mm x 100 mm x 1.7 mm thick polycarbonate sheet.

  • Actual peak gain values can be influenced by measurement variation and other uncertainties.
MECHANICAL SPECIFICATIONS
Dimensions – length x width x height – mm (inches)16 x 36 x 2.5 (0.62 x 1.41 x .098)
Weight – g (oz.)0.6
Adhesive3M 100MP
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature – °C (°F)-40 to +85°C (-40 to +185°F)
Storage Temperature – °C (°F)-40 to +85°C (-40 to +185°F)
Material Substance ComplianceRoHS

Configuration

PART NUMBEREXPOSED CABLE LENGTH/DIAMETERCONNECTOR
EFB2471A3S-10MHF1100 mm/1.13 mmMHF1
EFB2471A3S-10MH4L100 mm/1.13 mmMHF4L

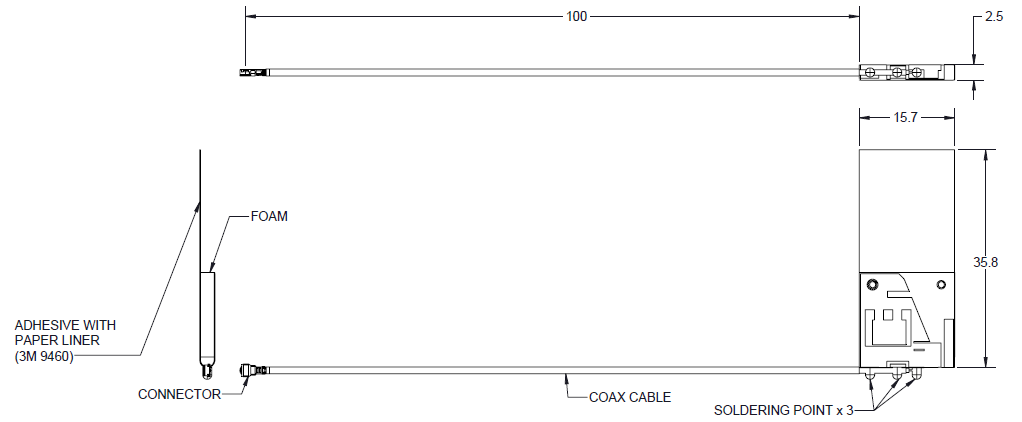

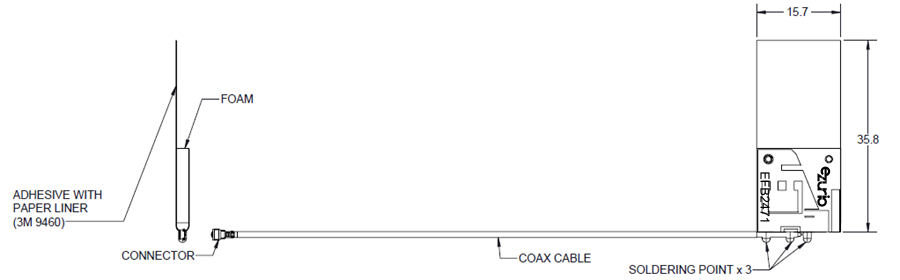

Mechanical Drawing

A white rectangular object with black text Description automatically generated

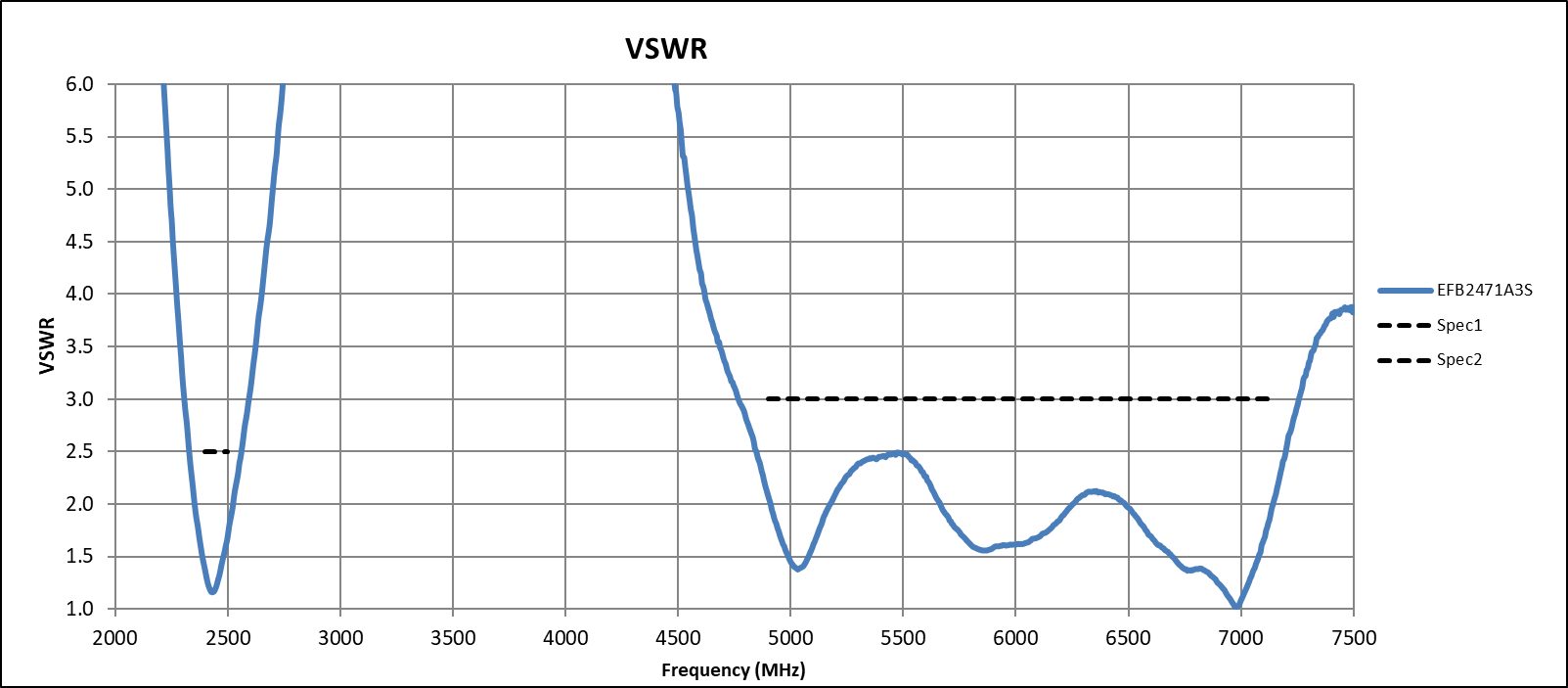

VSWR

A graph of a signal Description automatically generated

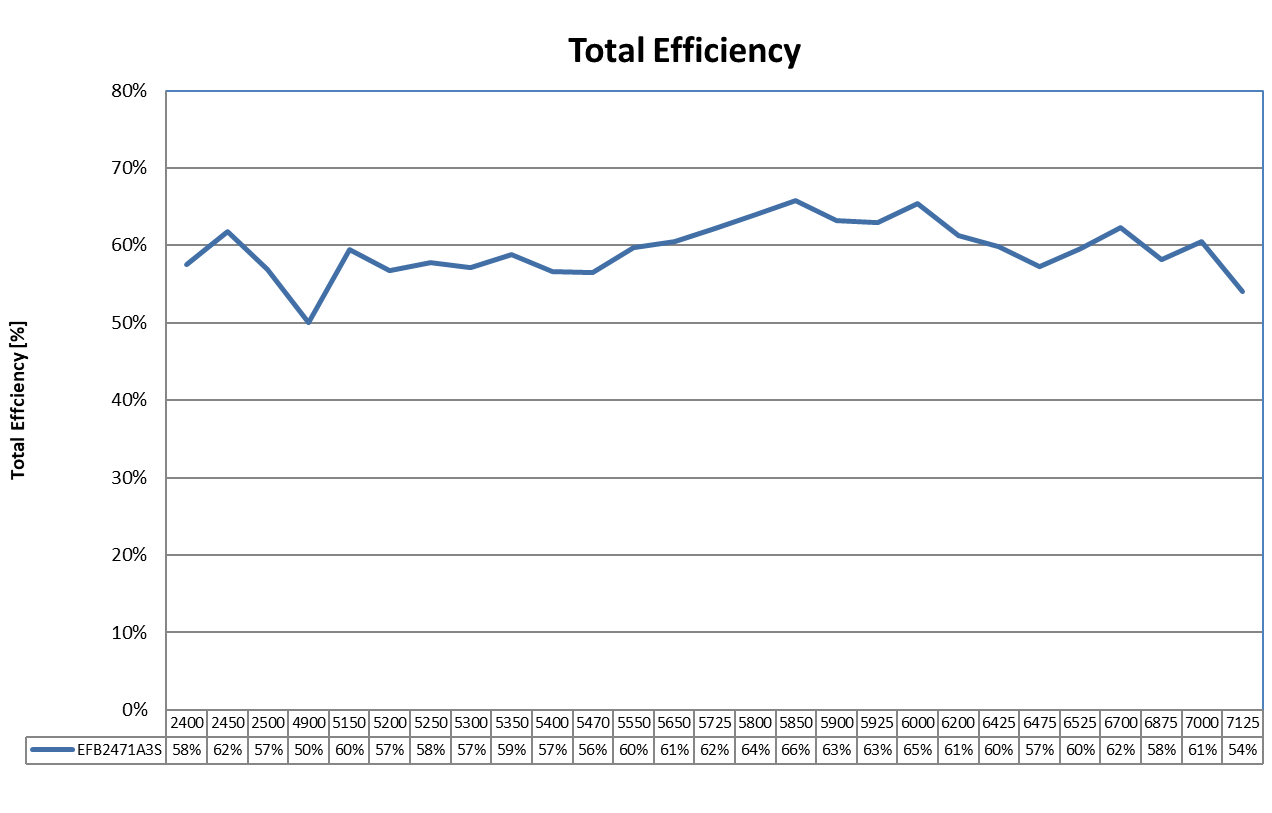

TOTAL EFFICIENCY

A graph with a line and numbers Description automatically generated

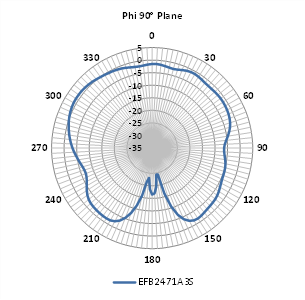

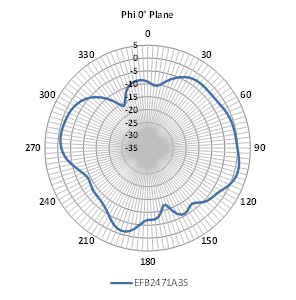

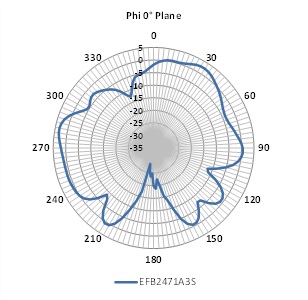

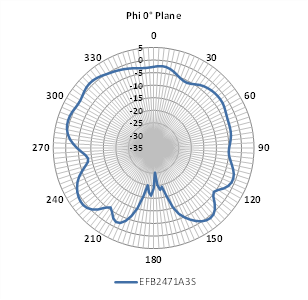

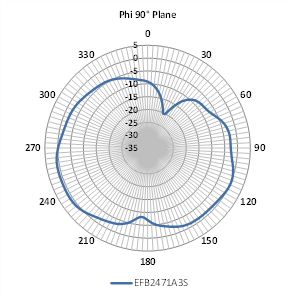

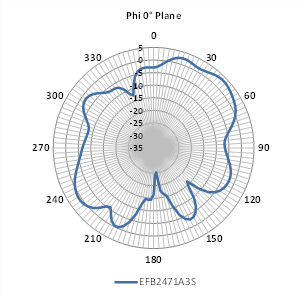

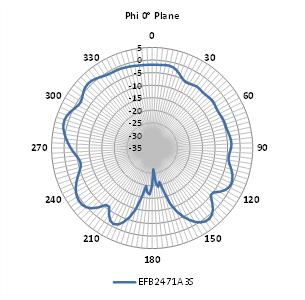

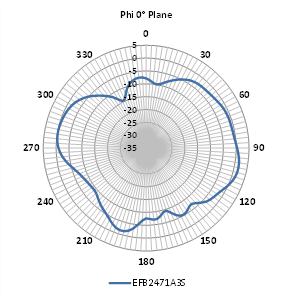

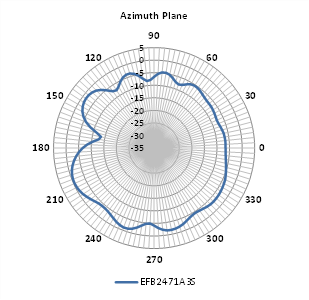

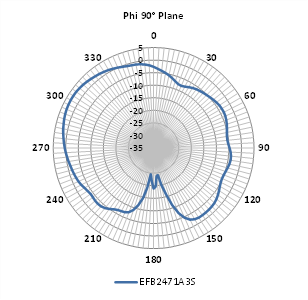

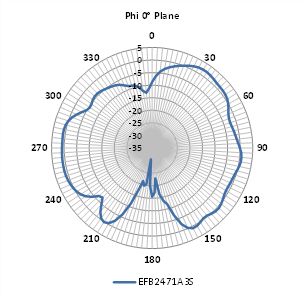

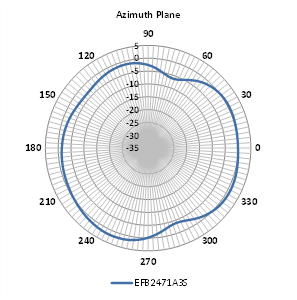

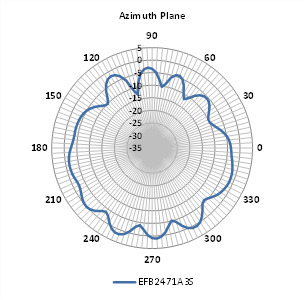

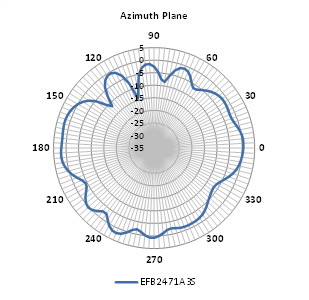

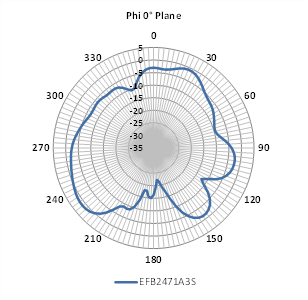

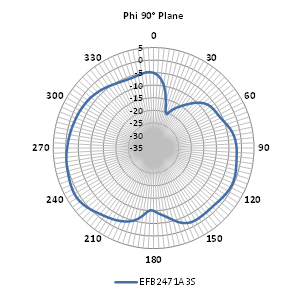

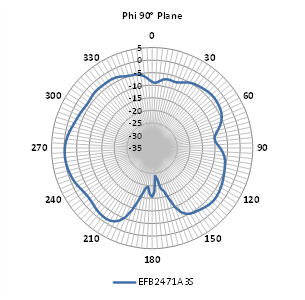

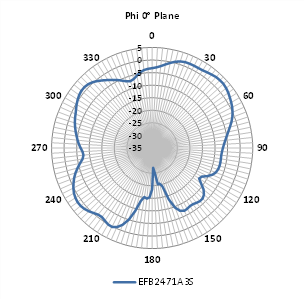

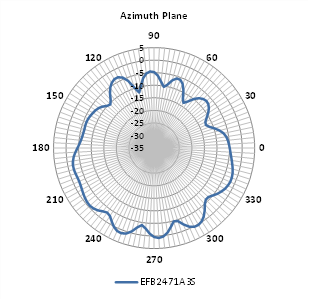

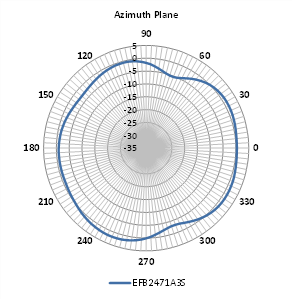

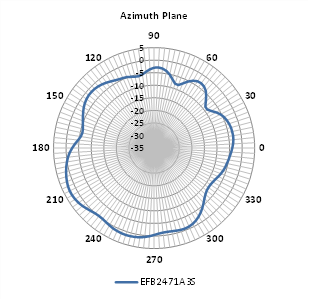

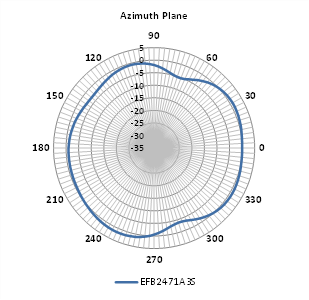

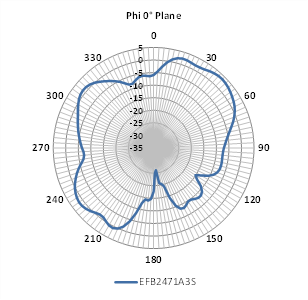

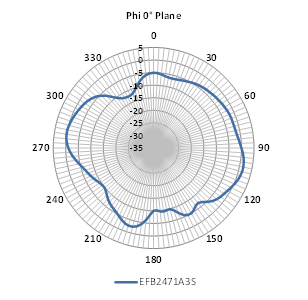

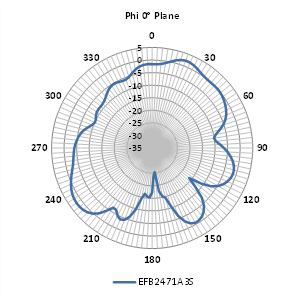

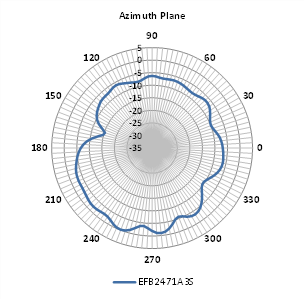

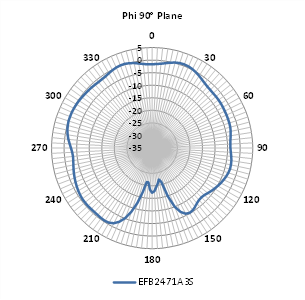

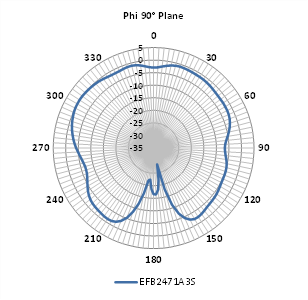

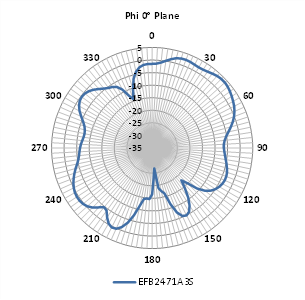

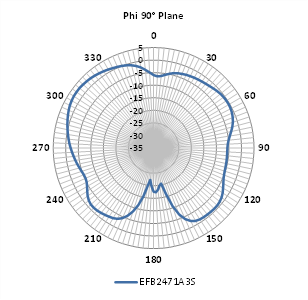

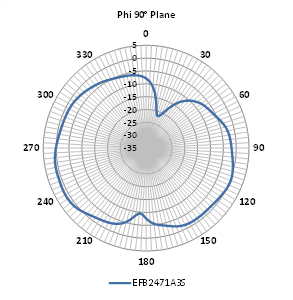

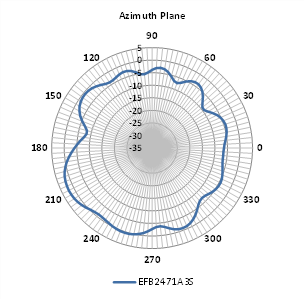

Radiation Patterns

2400 MHz


2450 MHz


2500 MHz


4900 MHz


5150 MHz


5470 MHz


5500 MHz


5850 MHz


5925 MHz


6425 MHz


6525 MHz


6875 MHz


7125 MHz


Packaging Information

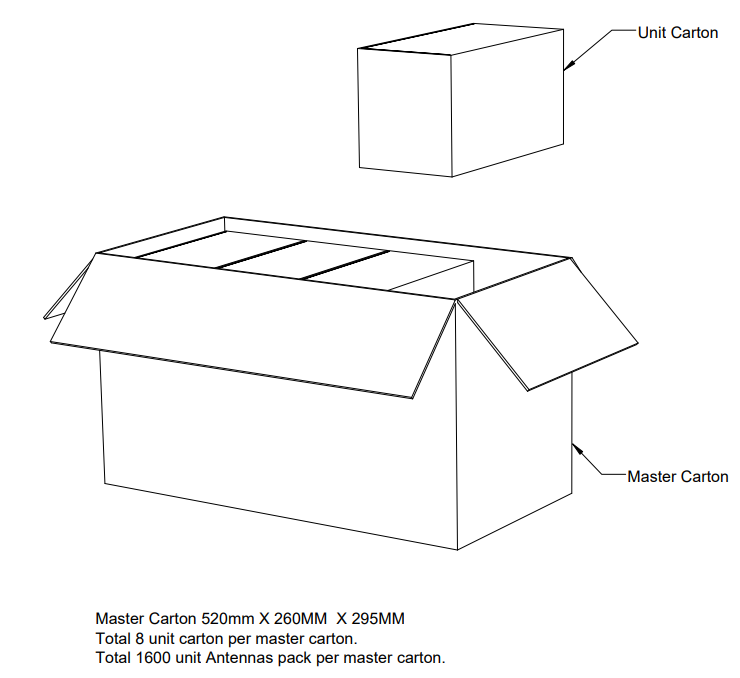

Carton Layout

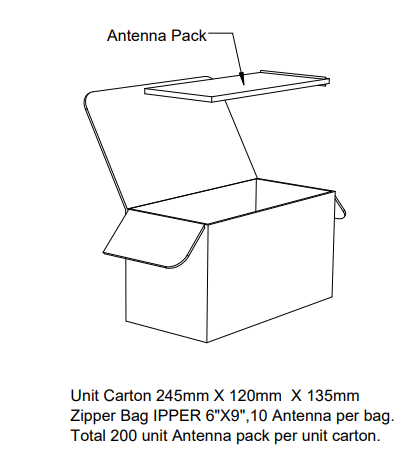

Unit Carton

A drawing of a box Description automatically generated

Master Carton

A drawing of a box Description automatically generated
  • Dimensions: 245 mm x 120 mm x 135 mm
  • Weight: 0.22 kg
  • Zipper bag 152 mm x 229 mm (10 antennas per bag)
  • 20x zipper bags per carton (200 antennas total)
  • Dimensions: 520 mm x 260 mm x 295 mm
  • Weight: 2.4 kg
  • Total of 8-unit cartons per master carton
  • Total of 1600 antennas per master carton

Pallet Layout

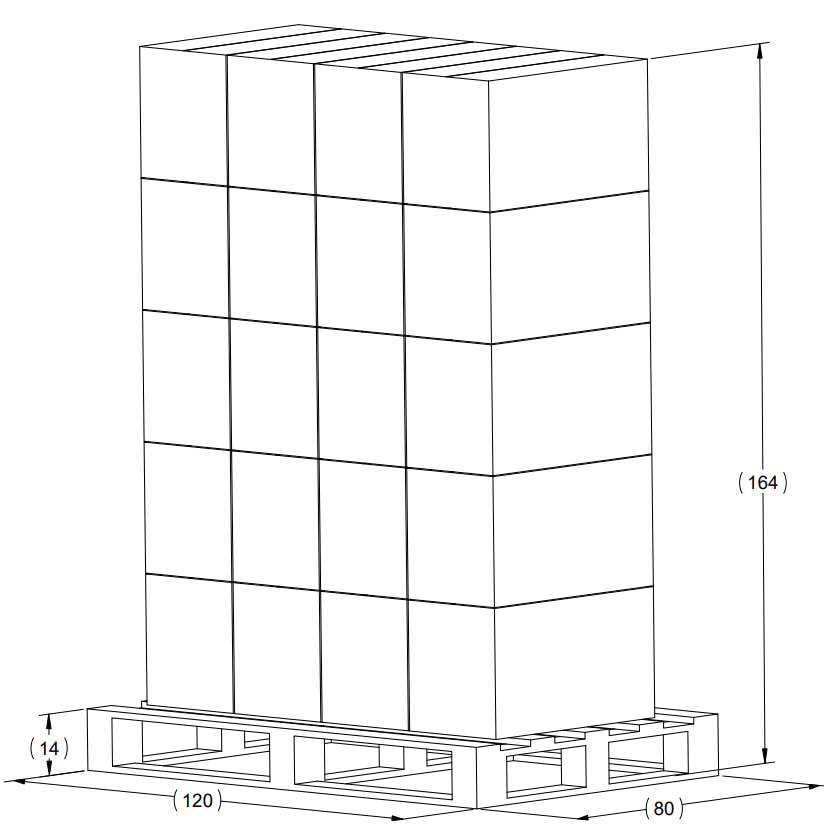

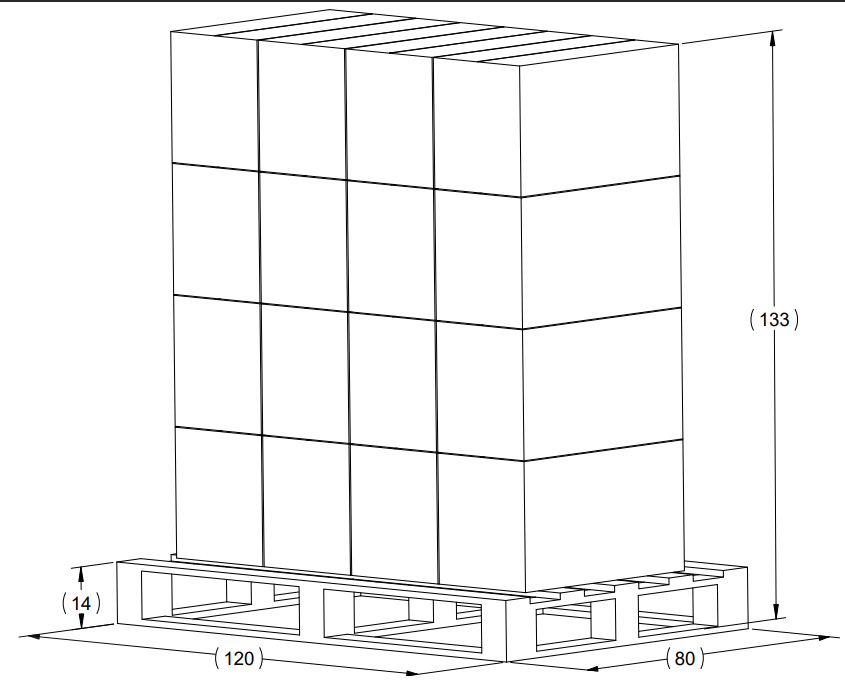

Ocean Shipping PalletAir Shipping Pallet
A drawing of a large cube on a pallet Description automatically generatedA drawing of a large cube on a pallet Description automatically generated
  • Pallet base dimensions: 120 cm x 80 cm x 14 cm
  • Full loaded dimensions: 120 cm x 80 cm x 164 cm
  • 20 master cartons (4 x 5 layout), 60 kg total
  • 32000 antennas per pallet
  • Pallet base dimensions: 120 cm x 80 cm x 14 cm
  • Full loaded dimensions: 120 cm x 80 cm x 133 cm
  • 16 master cartons (4 x 4 layout), 50.4 kg total
  • 25600 antennas per pallet
