MIKROE-6305 Click Board

Sera NX040
    Contact Us

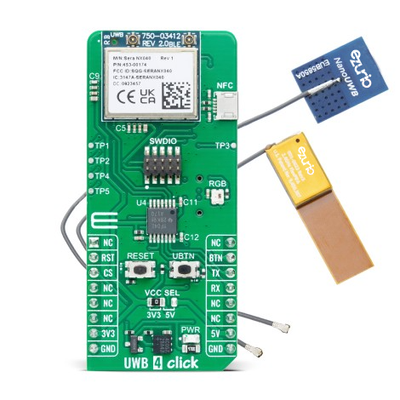

    The UWB 4 Click is a high-precision wireless positioning add-on board that combines ultra-wideband (UWB) and Bluetooth 5.0 technologies. It features the Sera NX040 module from Ezurio, which integrates the SR040 UWB transceiver with the Nordic nRF52833 BLE SoC. Supporting the IEEE 802.15.4/4z UWB standard, the board offers dual antenna connectors for enhanced accuracy and flexibility, along with a USB-C interface for easy integration. This makes it ideal for applications requiring precise localization and reliable short-range wireless communication.

    Learn More at MIKROE


    Specifications

    Additional Description
    UWB 802.15.4/4z; BLE 5.0; Dual antennas; USB-C; High precision; Sera NX040 (SR040 + nRF52833); Two antenna connectors
    Antenna Type
    Two antenna connectors
    Dimension (Length - mm)
    57.15 mm
    Dimension (Width - mm)
    25.4 mm
    Logical Interfaces
    UART, USB
    Operating Temp (Max) (°C)
    +85 °C
    Operating Temp (Min) (°C)
    -40 °C
    Power Supply
    3.3 V or 5 V
    Product Type
    Click Board

    Buy Now

    Sorry, no inventory of this part found at this time. Please contact us to purchase.
