Nitrogen8M Carrier

Recommended for New Design (RND)

Overview

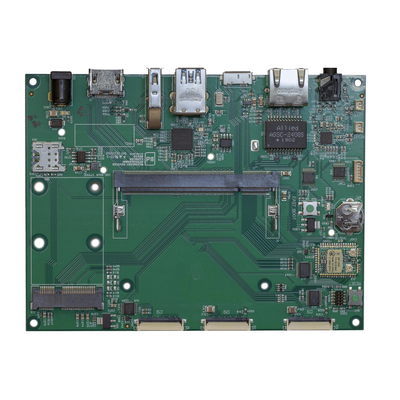

Carrier Board for Nitrogen8M SOM based on i.MX8M Processor.

Contact us for a quote to custom design your carrier board. Ezurio (formerly Laird Connectivity) provides free design reviews, contact us for more details.

Specifications

HDMI
v2.0 4k@60
LVDS
N/A
RGB
N/A
MIPI DSI
x1 4-Lane (1080p60)
Ethernet
10/100/1GB
WiFi
Certified 802.11ac
Bluetooth
BT4.1
Headphone
x1 (WM8960)
Microphone
x1
Amplifier
2W (1W per channel)
I2C
x3
SPI
x1
UART
Up to 4
USB
x4 USB 3.0
SATA
N/A
RTC
x1 + battery
PCIe
x2 (Gen2 1-lane each)
JTAG
N/A
CAN
N/A
Dimensions (L x W)
147.19mm X 110.97mm
Temperature Rating
Commecial 0-70C (-40 – +85C optional)
Power Supply
5V
Part NumberAdditional Description
Nitrogen8M Carrier Board
Nit8M_Carrier
Recommended for New Design (RND)
Buy Now
Carrier Board for Nitrogen8M SOM

Documentation

Name Part Type Last Updated
Schematic - Nitrogen8M Carrier All Technical Drawings 03/11/2024
MECH - Nitrogen8M Carrier All Technical Drawings 03/11/2024
