TiWi-R2

End of Life (EOL)

Overview

The TiWi-R2 is EOL. The TiWi-BLE is the footprint and electrically compatible module that should be used in place of the TiWi-R2. The TiWi-BLE adds Bluetooth® Low Energy (BLE) functionality in addition to WiFi and Bluetooth®.

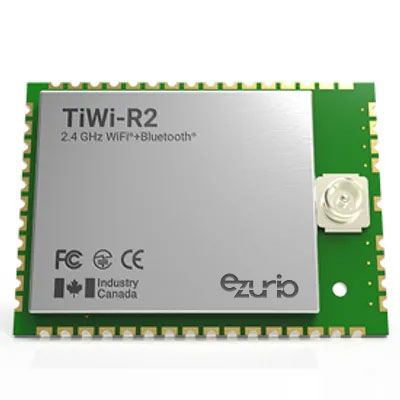

The TiWi-R2 Bluetooth® and WiFi module is a high performance 2.4 GHz IEEE 802.11 b/g/n Bluetooth®2.1+EDR radio in a cost effective, pre-certified footprint.

The module realizes the necessary PHY/MAC layers to support WLAN applications in conjunction with a host processor over a SDIO interface.

The module also provides a Bluetooth® platform through the HCI transport layer. Both WLAN and Bluetooth® share the same antenna port.

Development Kits

  • 450-0097

    450-0097

    End of Life (EOL)
    Antenna Type
    External
    Description
    COM6L-BLE Adapter Card
    Logical Interfaces
    SDIO, Serial
    Learn More

Specifications

Compliance
RoHS compliant
Dimension (Height - mm)
18
Dimension (Length - mm)
13
Dimension (Width - mm)
1.9
Certifications
FCC, ISED, EU, MIC
Interfaces - General
SDIO
Operating Temp (Max) (°C)
+85 °C
Operating Temp (Min) (°C)
-40 °C
Receive Current
100 mA, b/g/n
Receive Sensitivity
-89 dBm, 8% PER, 11 Mbps, CCK (b)
-76 dBm, 10% PER, 54 Mbps, OFDM (g)
-73 dBm, 10% PER, 65 Mbps, OFDM (n)
Transmit Current
280 mA, 11 Mbps, CCK (b)
185 mA, 54 Mbps, OFDM (g)
165 mA, 65 Mbps, OFDM (n)
Transmit Power
20.0 dBm, 11 Mbps, CCK (b)
14.5 dBm, 54 Mbps, OFDM (g)
12.5 dBm, 65 Mbps, OFDM (n
Voltage
3.0 V - 4.8 V
Wireless Specification
IEEE 802.11 b/g/n
Bluetooth 2.1+EDR, Class 1.5
Part NumberAntenna TypeChipset (Wireless)DescriptionFrequency Range (Max)Frequency Range (Min)Logical InterfacesOS/SoftwareProduct TypeSystem ArchitectureTechnology
TiWi-R2
450-0037
End of Life (EOL)
Buy Now
External TI CC3000 TiWi-R2 Module with U.FL Connector (Tray) 2495 MHz2400 MHzSDIO, Serial HCI Embedded Module Hosted 802.11bgn, Bluetooth Classic
TiWi-R2
450-0037R
End of Life (EOL)
Buy Now
External TI CC3000 TiWi-R2 Module with U.FL Connector (Tape & Reel) 2495 MHz2400 MHzSDIO, Serial HCI Embedded Module Hosted 802.11bgn, Bluetooth Classic

Documentation

Name Part Type Last Updated
Bluetooth Eval Tool All Software 03/29/2019
Bluetooth Patch Files: FCC/IC/ETSI all certified antennas All Software 03/29/2019
Bluetooth Patch Files: Used with the Bluetooth Eval Tool All Software 03/29/2019
WLAN and Bluetooth Radio Tools User Guide All Software 05/01/2019
WLAN Eval Tool All Software 03/29/2019
WLAN Firmware for use with WLAN Eval Tool only All Software 03/29/2019
WLAN INI: ETSI all certified antennas All Software 03/29/2019
WLAN INI: FCC/IC LSR Dipole & Ethertronics antennas All Software 03/29/2019
TiWi Antenna Design Guide All Documentation 03/29/2019
Datasheet - TiWi-R2 All Datasheet 09/05/2024
TiWi EMC Compliance Guide All Documentation 03/29/2019
Product Brief - TiWi-R2 All Product Brief 09/05/2024
TiWi-R2,BLE,5 Design Considerations All Documentation 03/29/2019
3D Models CAD Downloads (2-20-2013)(450-0037) All Technical Drawings 03/29/2019
SCH/PCB Models CAD Downloads (2-15-2012)(450-0037) All Technical Drawings 03/29/2019
SCH/PCB Models CAD Downloads (2-15-2012)(450-0052) All Technical Drawings 03/29/2019
Conflict Minerals Statement All Quality and Environmental 08/09/2024
EU RoHS (2011/65/EU) All Quality and Environmental 03/29/2019
Reach Chemical Analysis All Quality and Environmental 03/29/2019
EU Certifications - TiWi-BLE All Certification 06/18/2021
WEEE Statement All Quality and Environmental 03/29/2019
TiWi-R2 Support and Tools All Documentation 03/29/2019

FAQ

The performance of my TiWi-R2 Module is not matching the published specs in the datasheet. What is wrong?

The ini file in your OS/Driver likely does not have the correct parameters. It is important that you update this in your OS/Driver by following the instructions in the TiWi Family INI Radio Parameter User Guide available on the TiWi-R2 Module download page.

What Bluetooth® Profiles are supported by the TiWi-R2?

The Linux driver supports A2DP, HFP, HSP, OPP and FTP profiles.
The Win CE driver supports SDP, SSP, OPP, FTP, DUN, PAN et AD2P.

Was any SAR testing done on the TiWi-R2 Module?

Yes, the TiWi-R2 Module is certified as mobile device >20cm from the human body. Note that Ezurio (formerly Laird Connectivity) has completed a class 1 permissive change allowing the TiWi-R2 to fall under these certifications.

How do I use the FM Radio on the TiWi-R2 Module?

The FM radio is tested by TI at the WL1271 level, but not tested at the Module level by Ezurio at the present time. Therefore Ezurio assumes no liability for its operation. If this is a requirement for an application, please feel free to contact Ezurio to discuss. Information on using the FM radio (again at a customers own risk) can be obtained from TI. For example see TI OMAP Wiki.

Where can I get a datasheet for the WL1271?

The datasheet for the WL1271 is not public, and can only be obtained under NDA to customers through TI. Enough information is presented in the TiWi-R2 datasheet for most applications. Contact your local TI Sales Representative if you feel it is necessary to obtain the datasheet.

Is the TiWi-R2 obsolete?

No, the TiWi-R2 still in production, and there are no plans to discontinue it. Any new designs should use the TiWi-BLE or TiWi5 Modules. Both of these modules support additional features.

What antennas can I use with the module?

The answer to this question depends on if you plan on using the modular certification of the module. If you want to use the modular certification you need to use one of the antennas that the module was certified with. Consult the datasheet, or product webpage to determine which antennas the module was certified with. If none of the certified antennas meet your requirements, another antenna may be used, however the modular certification will NOT be valid. The new antenna will need to be tested for EMC compliance. Contact Ezurio's EMC Test Services to learn more about this process and how we can help.

Can I substitute antennas? For example can I use another dipole antenna instead of the exact model a module was certified with?

Yes, this is possible if:

  1. The peak gain of the alternate antenna is less than or equal to the original antenna, and
  2. The antennas are the same type.

There are some cases that are not black and white. It is the customer's responsibility to collect and retain the appropriate and accurate test data traceable to NIST standards for the alternate antenna. Please contact Ezurio to discuss any questions.

Where can I get the command set/interface for WLAN and Bluetooth?

There is no published command set for either radio. The only interface is through the drivers built into the OS. The commands would have to be extracted, or reverse engineered from there.

Is there a way to retrieve the serial number(s) from the TiWi-R2, TiWi-BLE, and TiWi5 programmatically?

The Serial Number is not stored on these modules, it's only displayed on the product label. Recently a database was added to provide MAC address to Serial Number correlation. MAC to SN correlation can be requested via our support.
