Scope

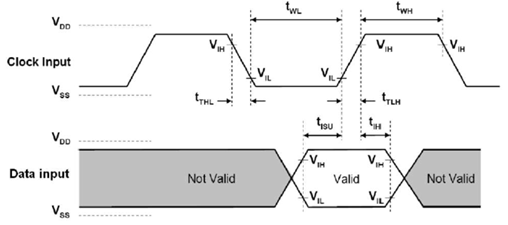

This document describes key hardware aspects of the Ezurio Sona™ TI351 series wireless modules providing a SDIO 2.0 interface for WLAN connection and a high-speed 4-wire UART interface for Bluetooth Low Energy (BLE)® connection.  This document is intended to assist device manufacturers and related parties with the integration of this radio into their host devices.

Note: The information in this document is subject to change. Please contact Ezurio to obtain the most recent version of this document.

Introduction

General Description

The Sona TI351 series wireless module is an integrated, small form factor Wi-Fi/Bluetooth module that is optimized for low-power mobile devices, featuring:

  • Wi-Fi 6:  Dual-band 1x1 IEEE 802.11a/b/g/n/ax WLAN
  • Bluetooth® 5.4:  BLE

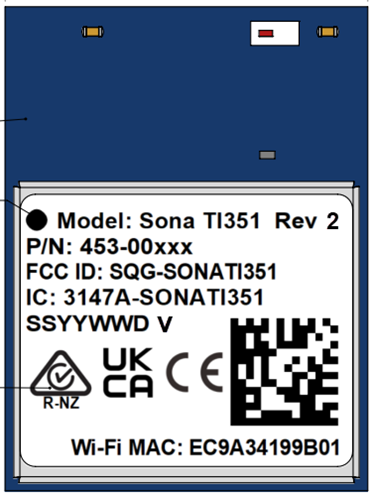

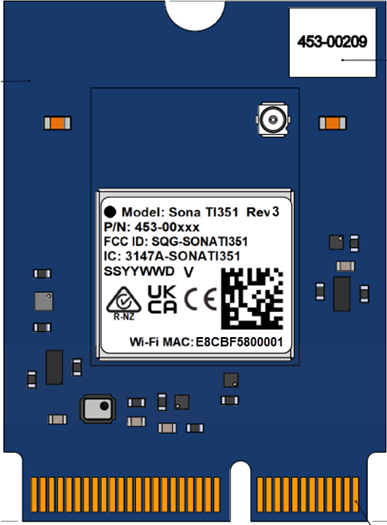

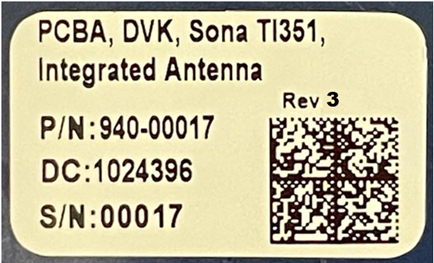

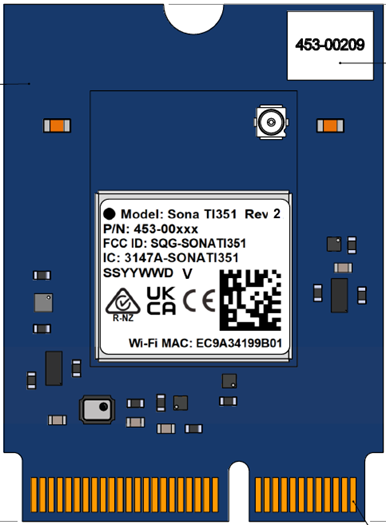

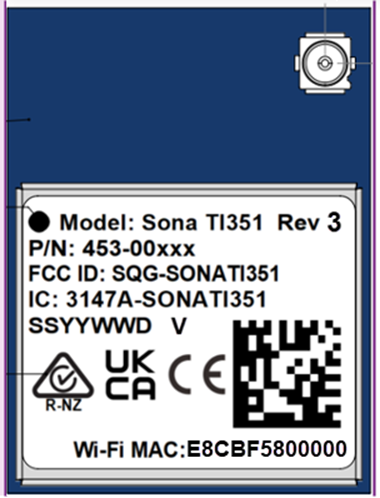

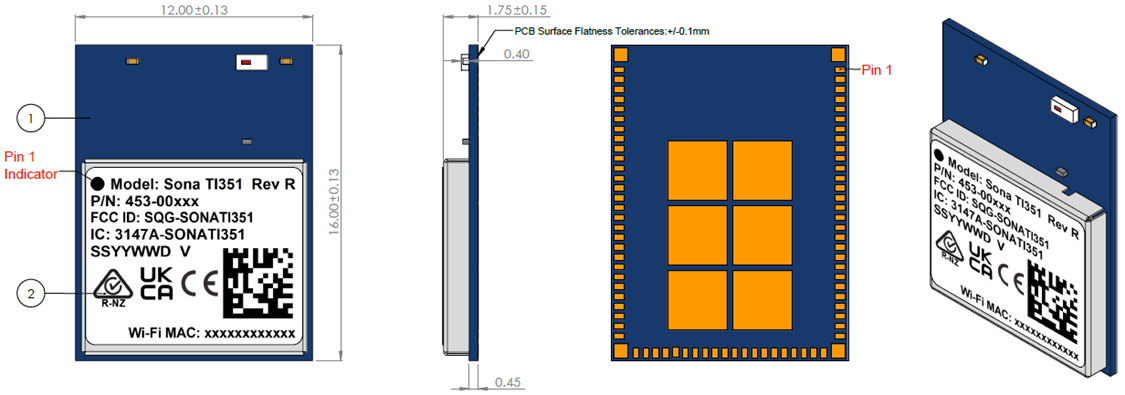

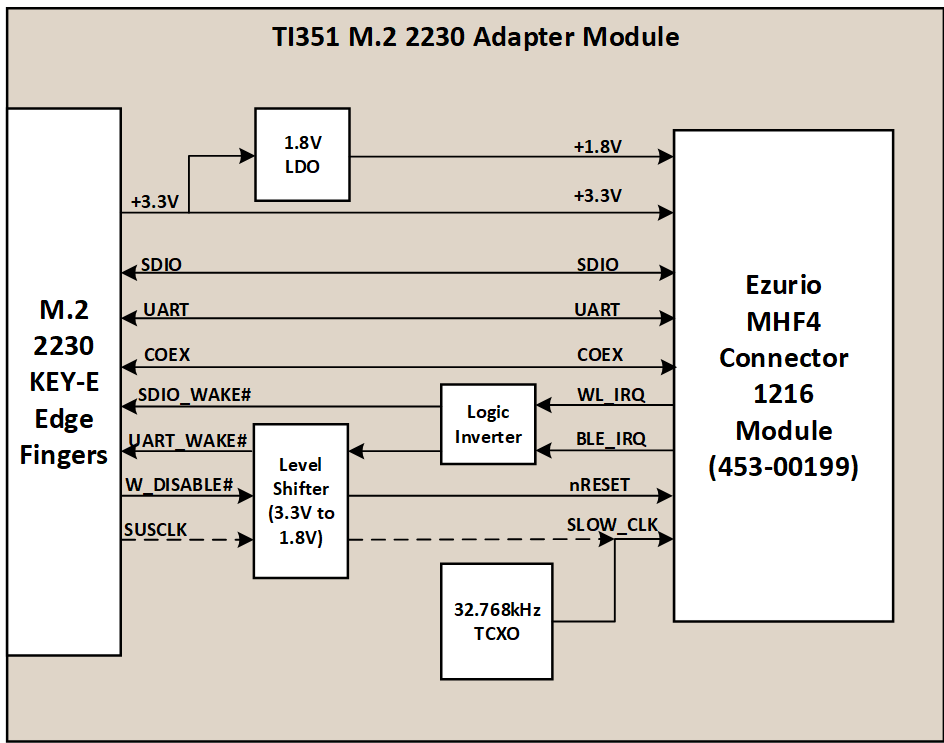

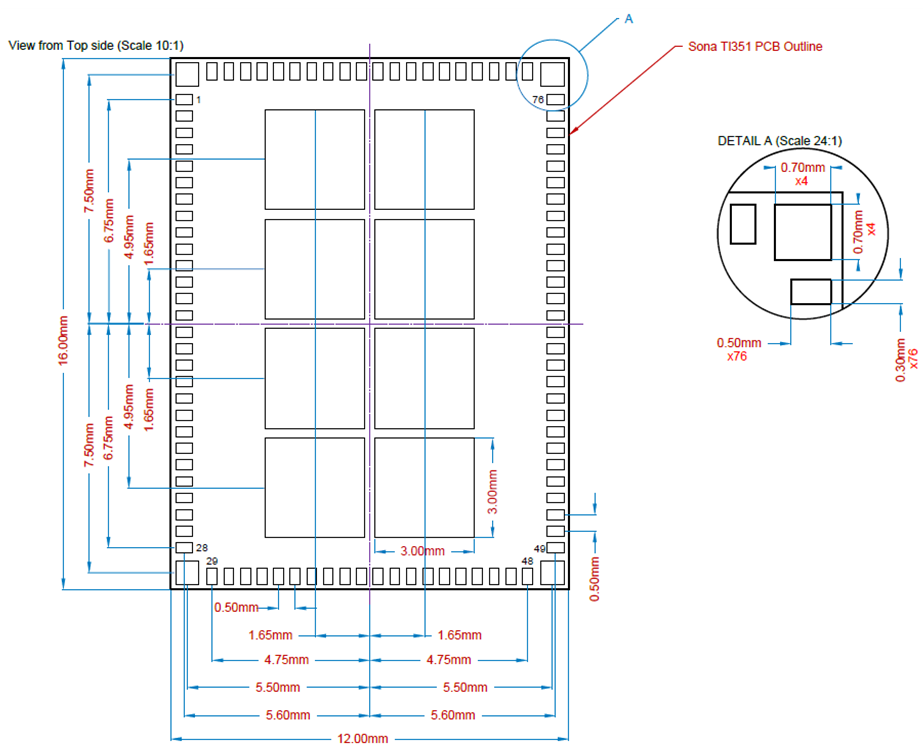

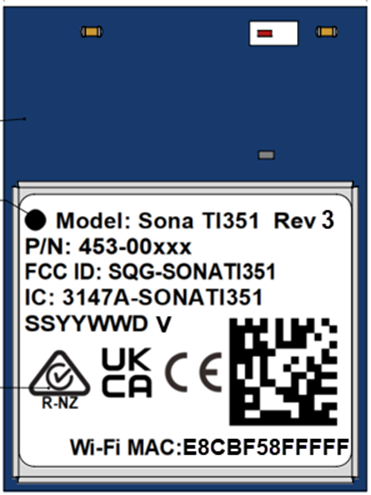

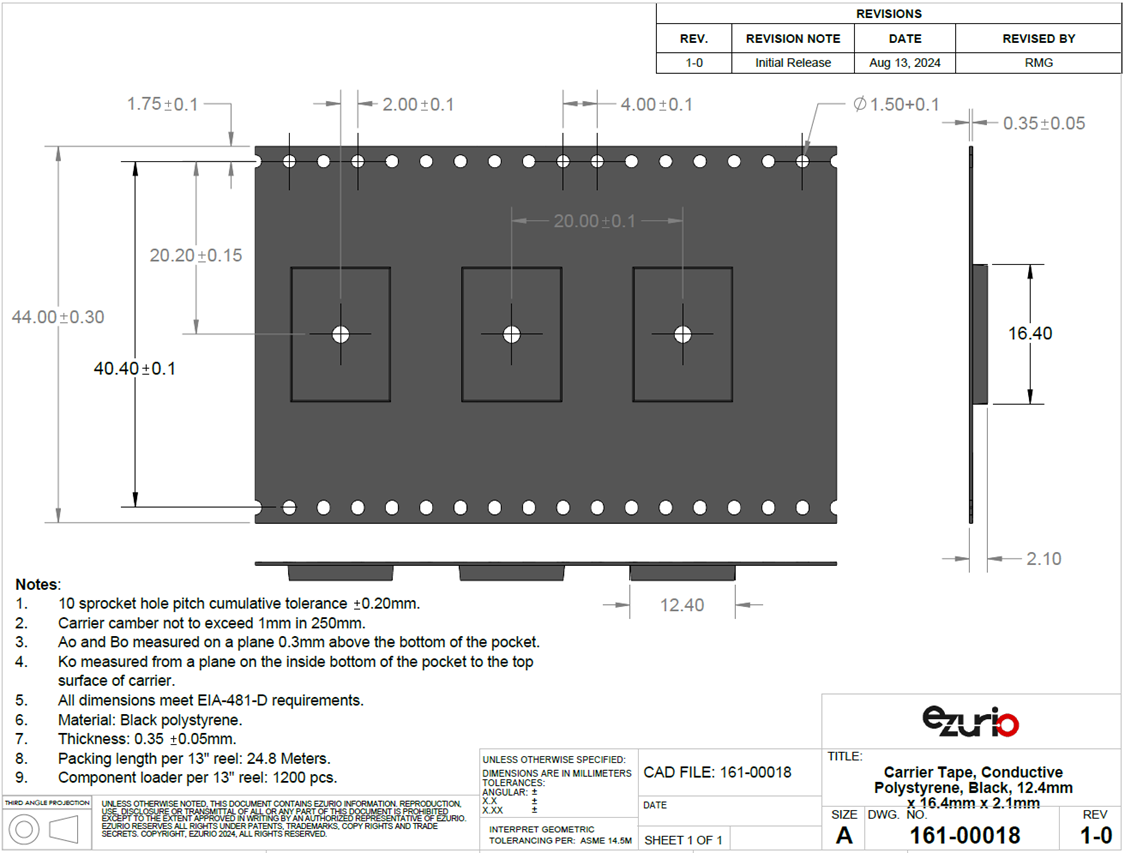

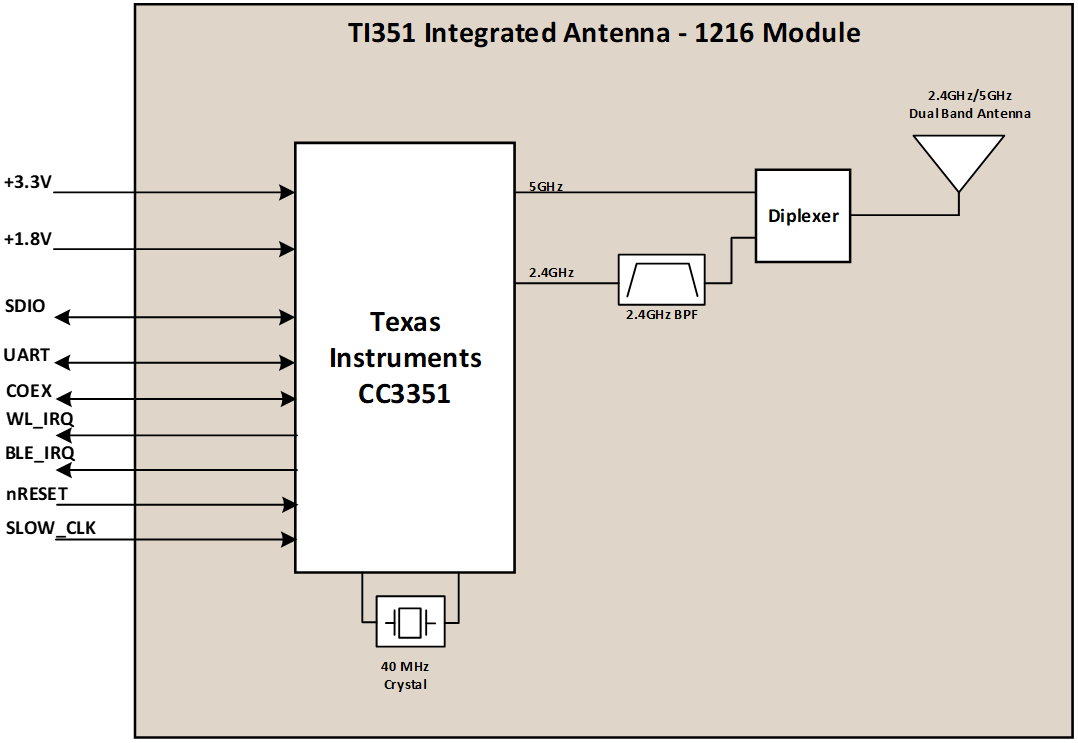

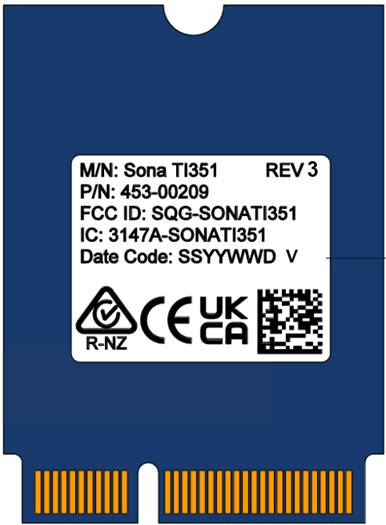

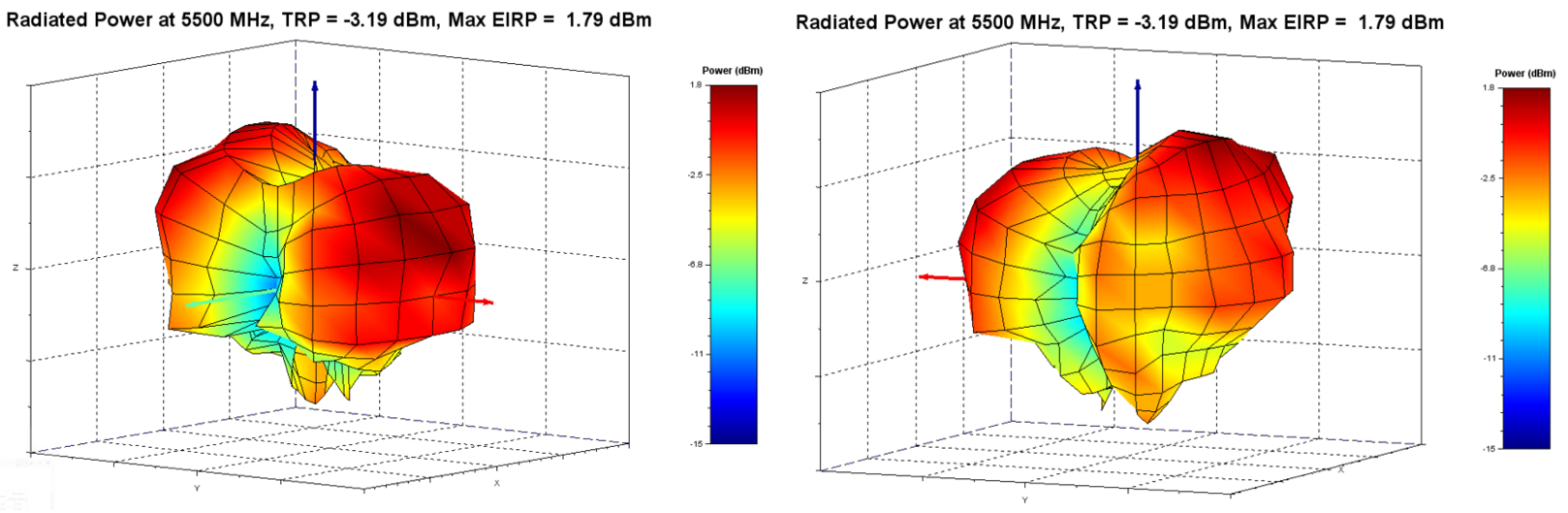

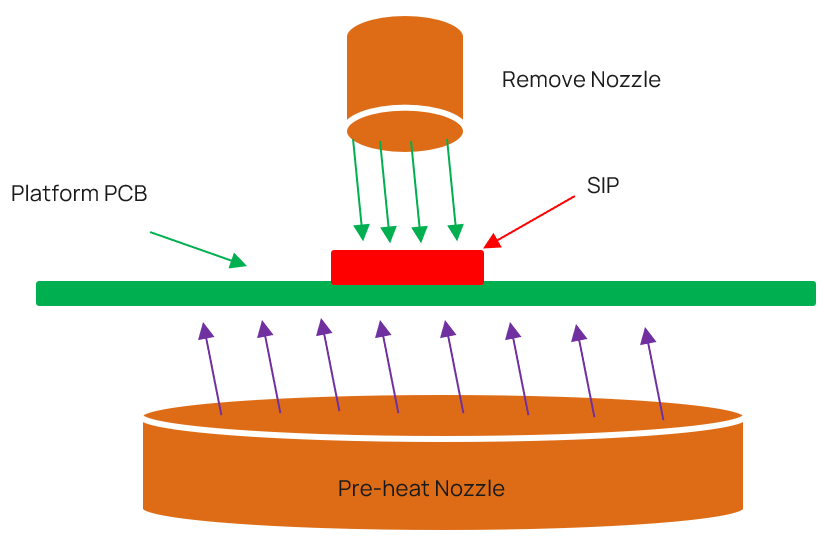

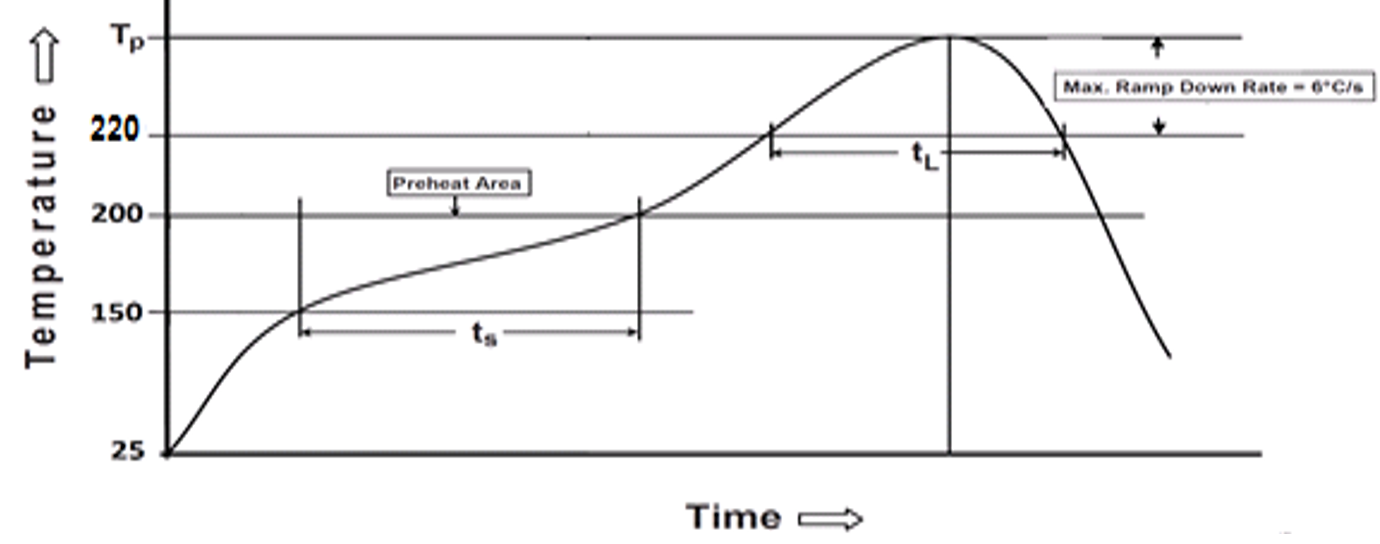

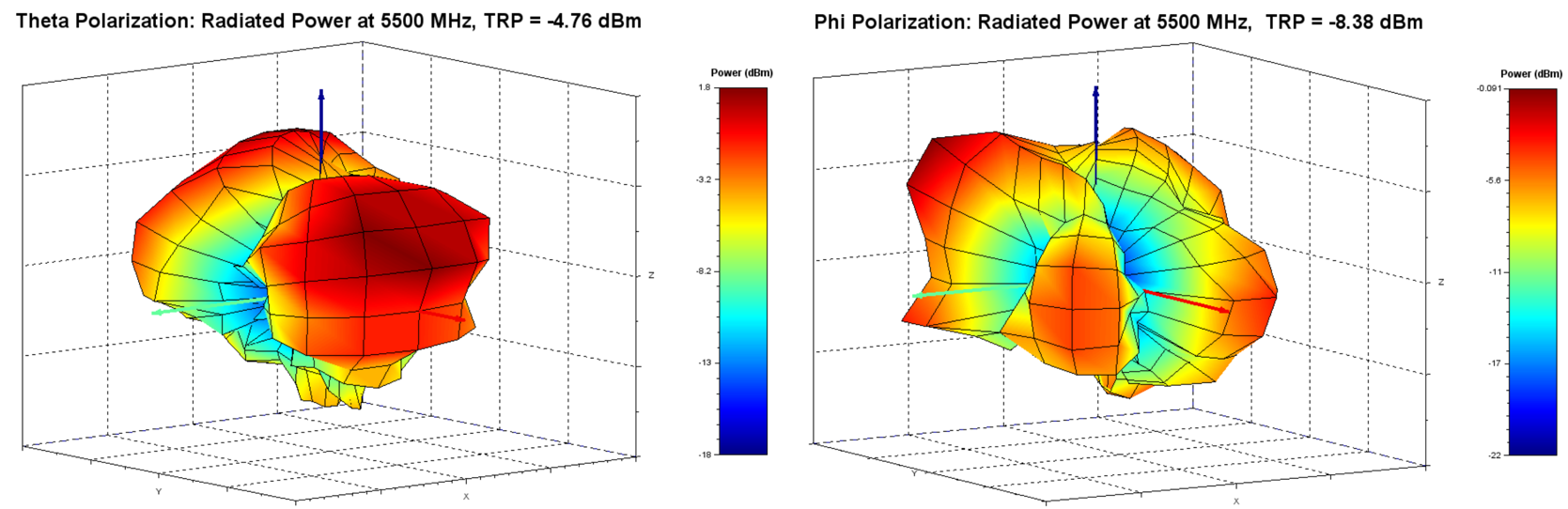

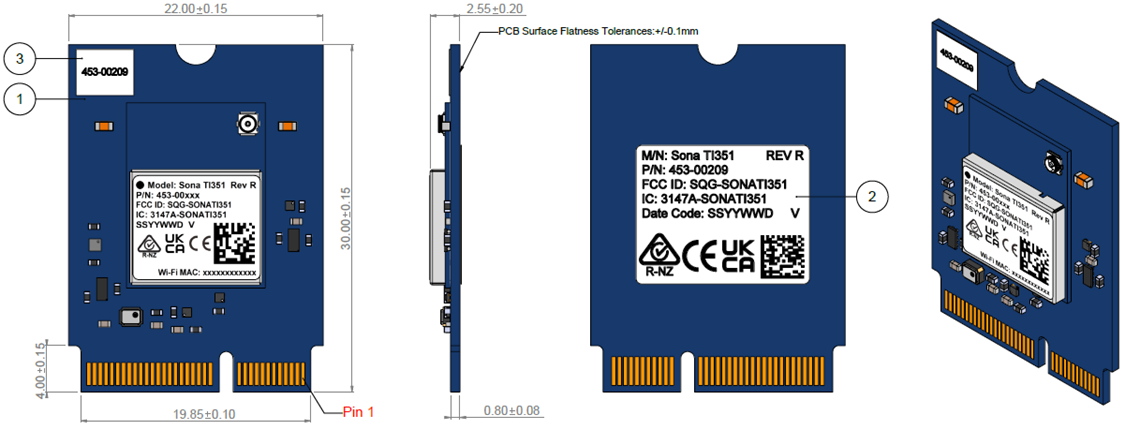

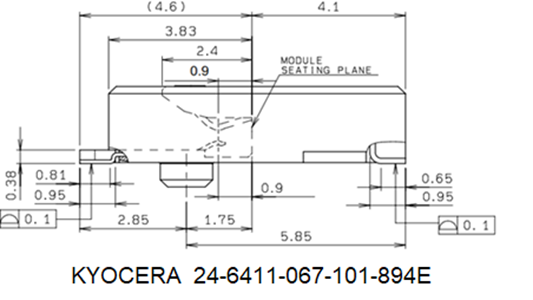

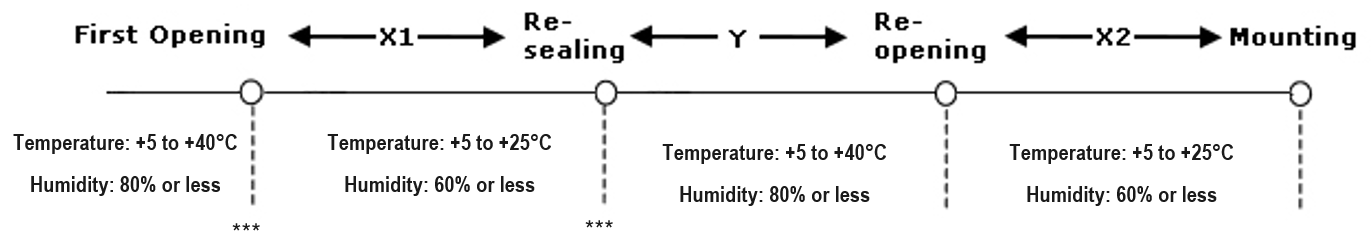

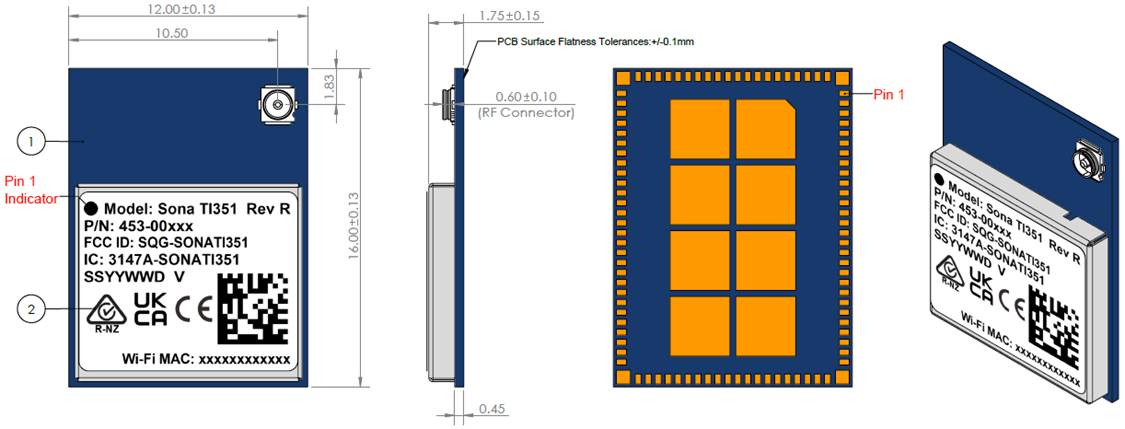

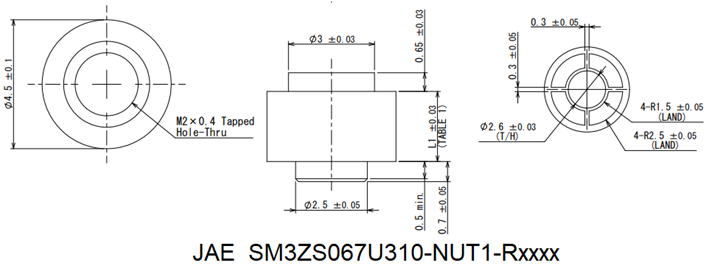

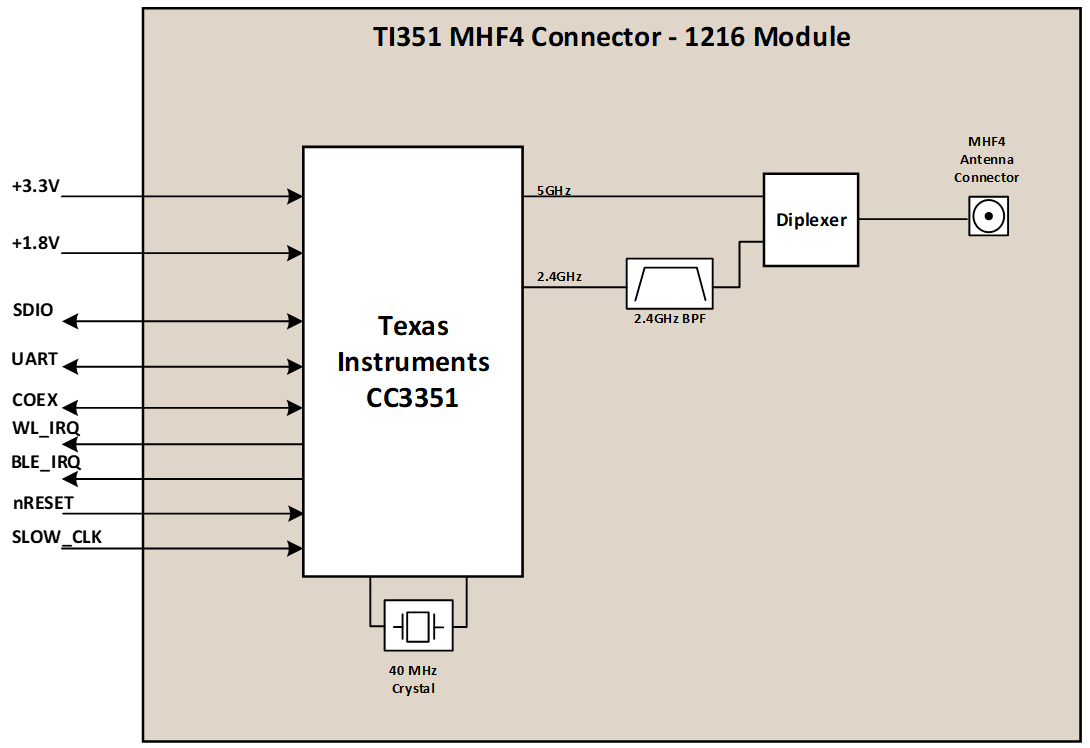

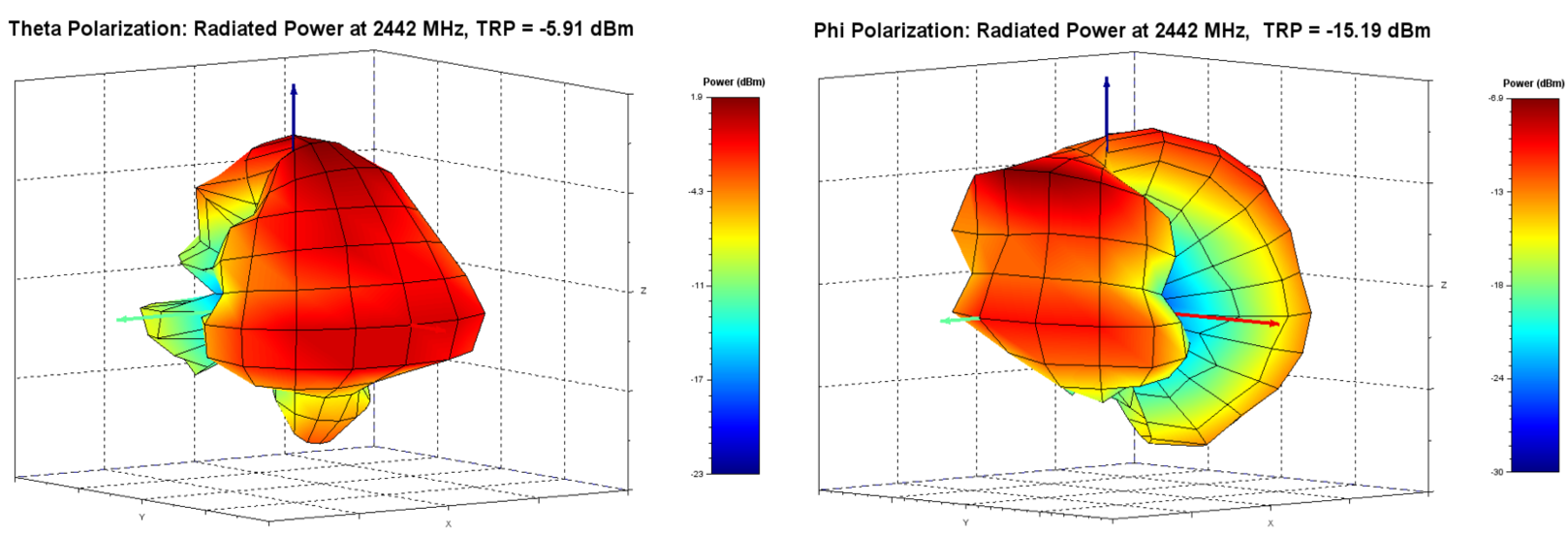

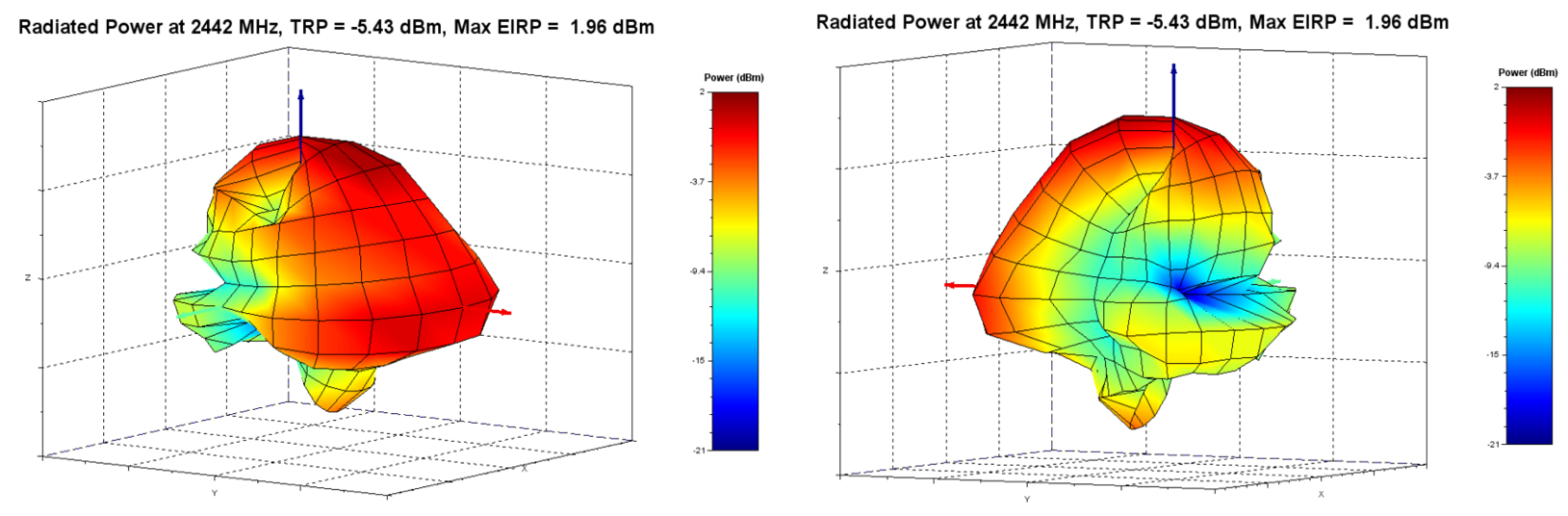

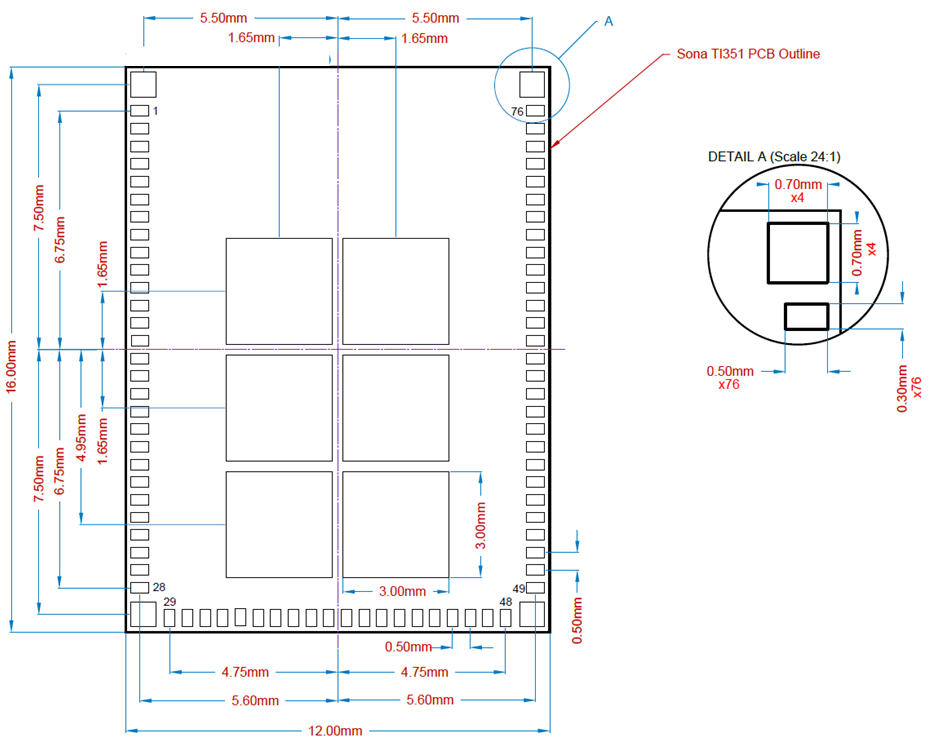

The integration of all WLAN and Bluetooth functionality in a single package supports a low cost and simple implementation along with flexibility for platform-specific customization.  The radio is pre-calibrated and integrates the complete transmit/receive RF paths including bandpass filter, diplexer, switches, reference crystal oscillator, and power management units (PMU).  It is available in both M.2 2230 E-Key and M.2 1216 solder-down form factors with an MHF4 antenna connector.  The M.2 1216 module is also available with an integrated chip antenna variant.  For a list of certified antennas see Table 31 in this datasheet.

The Sona TI351 series device supports IEEE 802.11ax dual-band (2.4/5 GHz) single streams with data rates up to MCS7 (86 Mbps PHY data rate for 2.4/5 GHz).  The fully integrated Wi-Fi and Bluetooth radios includes full digital MAC and baseband engines that handle all 802.11 CCK/OFDM/OFDMA® 2.4/5 GHz and Bluetooth Low Energy 5.4 baseband and protocol processing.

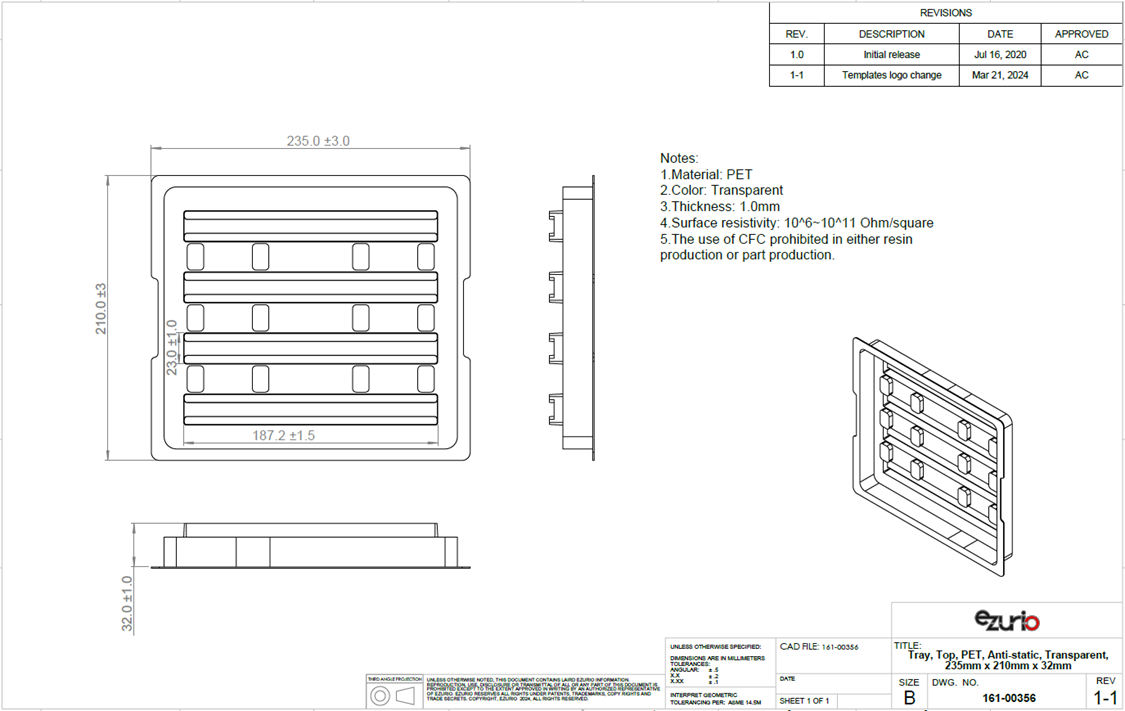

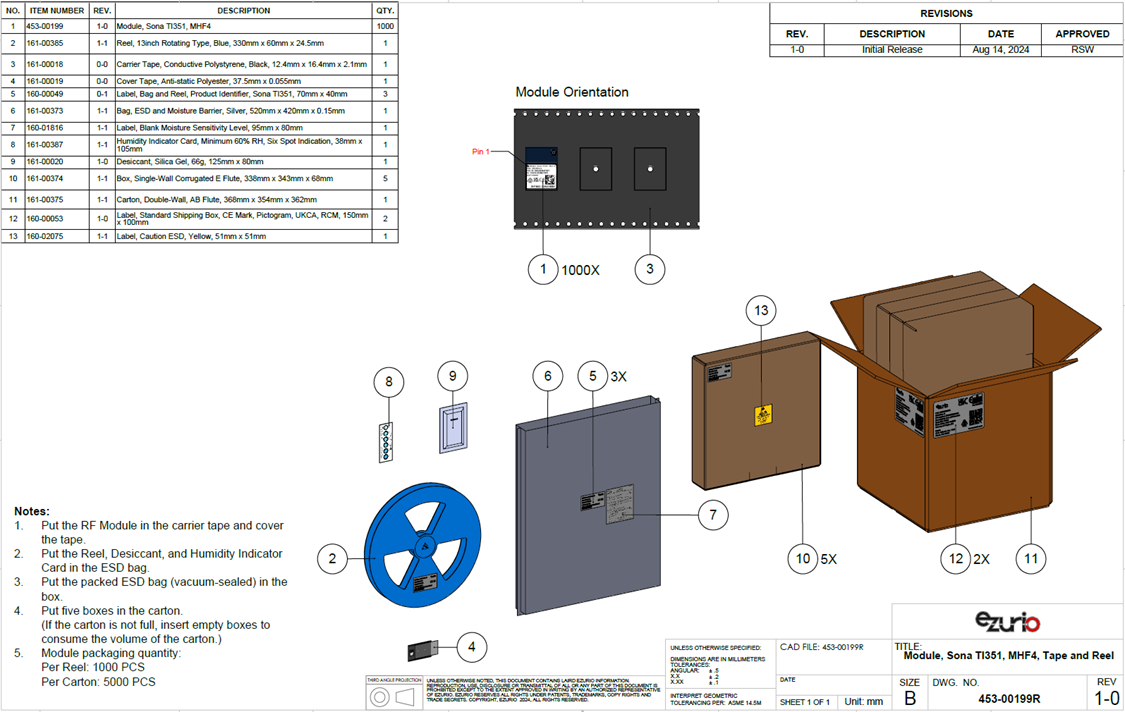

Ordering information is listed in Table 1.  Please contact Ezurio Sales/FAE for further information.
