868/915 MHz i‑FlexPIFA™ Antennas

Recommended for New Design (RND)

Overview

Our flexible PIFA (patented) antenna design delivers strong performance in challenging environments, providing you unmatched flexibility to solve your real-world antenna design challenges. Designed for rapid integration into space-constrained devices and housings, the flexible, adhesive backed antennas are available with MHF1 and MHF4L connector options.

Our 868/915 MHz i-FlexPIFA series is for sub-GHz applications like LoRaWAN and is designed with the radiating element facing outward when adhered to a plastic enclosure interior. This orientation gives more flexibility by granting different mounting options, like the underside of an enclosure, expanding the FlexPIFA family offerings. The 868/915 MHz i-FlexPIFA outperforms competitors’ solutions in these orientations.

PIFA antenna technology provides consistent performance across the 868 and 915 MHz ISM bands, always ensuring a solid and reliable connection.

  • Coverage – 863-870MHz or 902-928MHz Operation
  • Performance – Exceptional performance across operating frequency
  • Versatile – Flexible, peel-and-stick adhesive backed antenna for a variety of IoT devices.
  • Reliable – PIFA technology is easy to integrate into IoT devices and less likely to detune in proximity of metal or a human body.
  • Quality – Designed and built to exacting specifications.

New Mounting Options

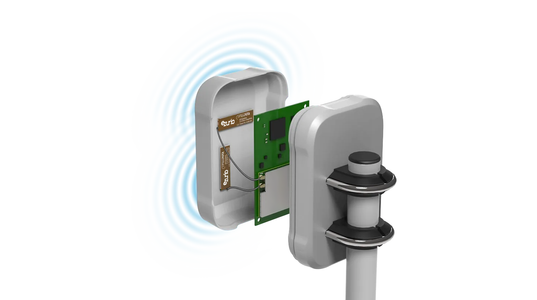

The i-FlexPIFA introduces new mounting options to our popular line of FlexPIFA internal antennas. The i-FlexPIFA is designed to radiate on the adhesive side, meaning OEMs can easily mount directly to the inside of the forward or top-facing part of their enclosure. The i-FlexPIFA is designed to give superior performance and reliability in this orientation and give OEMs another option for mounting wireless antennas inside their design.

868-915-i-flexPIFA-example exploded-pole-radiation1.png

Specifications

Frequency
863-870 MHz
902-928 MHz
Dimension (Length - mm)
40
Dimension (Width - mm)
88
Dimension (Height - mm)
6.2 mm
Gain (max)
-0.4 @ 868 MHz
+0.9 @ 915 MHz
Antenna Connector Type
MHF1 or MHF4L
Antenna Type
Inverted Flexible Planar F-Type
Impedance (Ohm)
50
Operating Temp (Max) (°C)
+85 °C
Operating Temp (Min) (°C)
-40 °C
Pattern Type
Omnidirectional
VSWR
<2.5:1
Part NumberCable Length (cm)ConnectorFrequency Range (Max)Frequency Range (Min)Gain (max)VSWR
EFG8555A3S-15MH4LBuy Now
15 MHF4L 870 MHz863 MHz0.9 <2.5:1
EFG8555A3S-15MHF1Buy Now
15 MHF1 (U.FL) 870 MHz863 MHz-0.4 <2.5:1
EFG9020A3S-15MH4LBuy Now
15 MHF4L 928 MHz902 MHz0.9 <2.5:1
EFG9020A3S-15MHF1Buy Now
15 MHF1 (U.FL) 928 MHz902 MHz0.9 <2.5:1

Documentation

Name Part Type Last Updated
Product Brief - 868/915 MHz i-FlexPIFA All Product Brief 02/08/2023
3D Models - 868-915 MHz i-FlexPIFA (.STEP Files) All Technical Drawings 02/09/2023
Datasheet - i-FlexPIFA - 868 MHz All Datasheet 11/09/2023
Datasheet - i-FlexPIFA - 915 MHz All Datasheet 11/09/2023
