You can use the Application Note Using Direct Test Mode
to put the BL653 in Direct Test Mode. This document describes BL653 radio
testing using the in-built Direct Test Mode (DTM) firmware and Nordic nRF
Connect for Desktop Direct Test Mode tool.

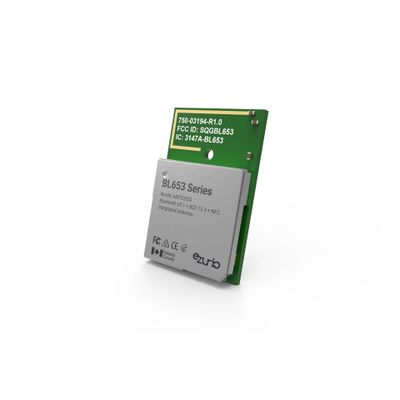

453-00039C
453-00039C
Recommended for New Design (RND)
Specifications
Packaging
Product Type
Embedded Module
Bulk or Single
Bulk (Cut Tape)
Interface
Technology
Bluetooth 5.4, Single Mode (BLE), NFC
Software
OS/Software
Nordic SDK, smartBASIC, AT Commands, Zephyr
System Architecture
Hostless
Connectivity
Chipset (Wireless)
Nordic nRF52833
Antenna Type
Internal
Logical Interfaces
Serial, GPIO, ADC, I2C, SPI, PCM, I2S, NFC, PWM, USB
Frequency Range (Min)
2402 MHz
Frequency Range (Max)
2480 MHz
Frequency Range 2 (Min)
13.56 MHz
Frequency Range 2 (Max)
13.56 MHz
Features
Additional Description
Bluetooth 5.4 BLE Module
Documentation
Browse Datasheets and Product Briefs in our Support & Documentation Center.
Distributors
| Distributor | Part | In Stock | Region | Buy |
|---|---|---|---|---|
| Mouser Electronics | 453-00039C | 2316 | North America | Buy Now |
| DigiKey | 453-00039C | 1312 | North America | Buy Now |
| Farnell | 453-00039C | 500 | Europe | Buy Now |
| Farnell | 453-00039C | 500 | Europe | Buy Now |
| Arrow Electronics | 453-00039C | 250 | North America | Buy Now |
| RS | 453-00039C | 0 | Europe | Buy Now |
| RS | 453-00039C | 0 | Europe | Buy Now |
| RS | 453-00039C | 0 | Europe | Buy Now |
| Future Electronics | 453-00039C | 0 | North America | Buy Now |
| Future Electronics | 453-00039C | 0 | Europe | Buy Now |
| Future Electronics | 453-00039C | 0 | Asia | Buy Now |
