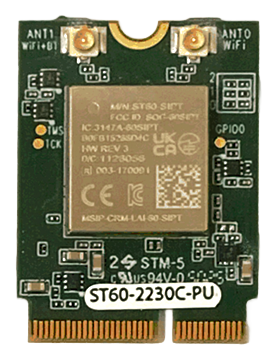

60-2230C Series Bluetooth and WiFi Module
Learn more and compare with similar parts on the family page.

60 Series 802.11ac Wi-Fi + Bluetooth 5.1 M.2 module (PCIE Wi-Fi, USB interface)

Specifications

Antenna Options
2x U. FL
Antenna Type
External
Chipset (Wireless)
NXP (Marvell) 88W8997
Connector
M.2 Connector (2230 E-Key)
Dimension (Height - mm)
3.3 mm
Dimension (Length - mm)
22 mm
Dimension (Width - mm)
30 mm
Frequency Range (Max)
2495 MHz
Frequency Range (Min)
2400 MHz
Frequency Range 2 (Max)
5825 MHz
Frequency Range 2 (Min)
5150 MHz
Logical Interfaces
USB
OS/Software
Linux, Android
Product Type
Embedded Module
System Architecture
Hosted
Technology
802.11abgn, 802.11ac, Bluetooth 5.1, Dual Mode (Classic + BLE)
Wi-Fi Interfaces
PCIE

Documentation

Name Part Type Last Updated
Datasheet - ST60-2230C-P and ST60-2230C-PU ST60-2230C-PU Datasheet 08/03/2022
Product Brief - 60 Series.pdf ST60-2230C-PU Product Brief 05/02/2022

Buy Now

Distributor Part In Stock Region Buy
Avnet ST60-2230C-PU 3800 North America Buy Now
DigiKey ST60-2230C-PU 793 North America Buy Now
DigiKey ST60-2230C-PU 793 North America Buy Now
Mouser ST60-2230C-PU 212 North America Buy Now
Mouser ST60-2230C-PU 212 North America Buy Now
Farnell ST60-2230C-PU 115 EMEA Buy Now
Arrow Electronics ST60-2230C-PU 0 North America Buy Now
Future Electronics ST60-2230C-PU 0 North America Buy Now
Future Electronics ST60-2230C-PU 0 North America Buy Now


FAQ

How do I set up an open hotspot using Network Manager?

You can use the Network Manager command line interface to create an open hotspot using this command:

nmcli con add con-name open_hotspot ifname wlan0 type wifi ssid yourSSID mode ap wifi.band bg wifi.channel 6 ipv4.method shared

Can you tell me more about the m.2 connector used on your Wi-Fi modules?

The m.2 used on our Wi-Fi modules is an E-key. Review the PCI Express M.2 Specification from the PCI-SIG website for more information.

  • Here is an Application note on E-Key from NXP
  • When using an m.2 Wi-Fi module ensure your platform supports the interface by the selected m.2 Wi-Fi module. An example is an external sleep clock which is needed by some Ezurio (formerly Laird Connectivity) modules.



What versions of Android are supported by Laird Wi-Fi modules?

This can be found by reviewing the release notes for the specific product on GitHub.



I have a Ubuntu system that has automatic updates will this affect my Wi-Fi?

Yes as new kernels are updated in Ubuntu automatically it will break backports and will need to be reinstalled.

Can I use a Laird WiFi module on Ubuntu?

Laird modules can be used on a Ubuntu system with a kernel version that is supported by Laird backports.

To check, find the kernel version of the Ubuntu system and then check the release notes of the products to see if the latest backports supports that kernel.

Sterling-60 Release Notes

Sterling-LWB Release Notes

How do I change the BLE PHY rate with the BTLRU when testing the 60 module?

Inside the LE Menu, the PHY rate can be specified with the

-t [1,2]

option. Use 1 for 1MPHY and 2 for 2MPHY.





When testing Bluetooth Classic, is it possible to just put the 60 module in Test Mode and have an Anritsu or Rhode Schawrz Bluetooth tester control it?

Yes, for Classic Bluetooth the BTLRU can put the module in Device Test Mode by sending the

tm
command.

Does BTLRU allow you to do an unmodulated carrier?

No, it's not possible to do an unmodulated carrier with BTLRU.

How do I setup the ST60 for hostapd?

Configuring the ST60 for hostapd to take advantage of it's max data rate requires a bit of setup. For hostapd to take advantage it has to know all the capabilities of the radio which can be pull from 'iw list'. One will need to convert the capabilities from 'iw list' to ht_capab and vht_capab. To help do this conversion reference the hostapd full config documentation.

Note: hostapd is not officially supported at this time, but wpa_supplicant setup as an AP is support via the sterling-supplicant which can be obtained here: Sterling-60.

Below is a sample working configuration for the ST60.


# hostapd configuration
ctrl_interface=/var/run/hostapd
ctrl_interface_group=0
interface=wlan0
driver=nl80211

# IEEE 802.11
ssid=hostAPD

hw_mode=a
channel=149
max_num_sta=12
auth_algs=1

# DFS
country_code=US
ieee80211d=1
ieee80211h=1

# IEEE 802.11n
ieee80211n=1
ht_capab=[HT40+][LDPC][SHORT-GI-20][SHORT-GI-40][RX-STBC1][DSSS_CCK-40][MAC-AMSDU-3839]

# IEEE 802.11ac
ieee80211ac=1
vht_oper_chwidth=1
vht_capab=[MAX-MPDU-3895][RXLDPC][SHORT-GI-80][RX-STBC-1][TX-ANTENNA-PATTERN][RX-ANTENNA-PATTERN]
vht_oper_centr_freq_seg0_idx=155

# IEEE 802.11i
wpa=2
wpa_key_mgmt=WPA-PSK
wpa_passphrase=password1
rsn_pairwise=CCMP



Do the PCIe Rx/Tx pins on the 60 module require DC blocking caps?

M.2 Version:

  • The M.2 version of the module already has DC blocking cap on the Tx side; so it's not required.
  • On the Rx side of the module, it's assumed the host will have DC blocking caps on the Tx side.



SIP Version:

  • You must add DC blocking cap on the Tx side of the module.
  • On the Rx side of the module, it's assumed the host will have DC blocking cap on the Tx side.



If the 60 module is used in SISO mode, what should I do with the unused antenna port?

The unused antenna port must be terminated with a 50 ohm load. A 1/4 Watt resistor is recommended. For the u.fl version of the module, it might be more cost-effective to just use one of the certified antennas. It's not easy to find an affordable 50 ohm resistor that plugs into the u.fl connector.

Is there a way to extend the shelf life of Laird modules?? If the shelf life cannot be extended in any way, what are the consequences of using modules after shelf life?

The shelf life statements are essentially to prevent mishandling of the product and not storing it properly. If the modules are still sealed in the package, stored at the proper temperature and have not been exposed to moisture they should be fine. However, when working with modules beyond their shelf life you MUST bake the modules before populating the them to your board. Failure to bake the modules could result in the yield rate dropping down lower than expectation due to popcorn or de-lamination on the modules. It is recommended that you follow IPC/JEDEC J-STD-033 which is the general standard for the handling, packing, shipping and use of moisture/reflow sensitive surface mount devices.

Our main concern is around the castellation/pads which solder the module to the board. It is imperative those pads do not get tarnished, as this would cause soldering issues. Humidity can affect solderability as well, as if there is any excess moisture in the solder on the module, during reflow of the module to the board, steam balls can essentially explode the solder and sometimes result in an open circuit (or possibly a short circuit).

As long as all of the moisture handling and temperature guidelines are being followed you will likely have no issues. It is further recommended that when you do the build with modules that have exceeded their shelf life that you start with a handful to perform a test run and do a final test to make sure all is working as expected. As long as there are no issues with the initial test run we would expect that you will not experience any problems.

How do I test connecting to a BLE peripheral in Linux?

To activate BT, list controller information and scan for BT/BLE devices:

# bluetoothctl
Agent registered
[bluetooth]# power on
Changing power on succeeded
[bluetooth]# list
Controller C0:EE:40:50:00:00 summit [default]
[bluetooth]# scan on

To connect to a device acting as a peripheral:

[bluetooth]# scan on
Discovery started
[CHG] Controller C0:EE:40:50:00:00 Discovering: yes
[NEW] Device 4C:90:DE:92:00:00 Pixel XL
[CHG] Device 4C:90:DE:92:00:00 RSSI: -68
[CHG] Device 4C:90:DE:92:00:00 RSSI: -58
...
[NEW] Device 4C:90:DE:92:00:00 Pixel XL
[bluetooth]# scan off
Discovery stopped
[CHG] Controller C0:EE:40:50:00:00 Discovering: no
[CHG] Device 4C:90:DE:92:00:00 TxPower is nil
[CHG] Device 4C:90:DE:92:00:00 RSSI is nil
[bluetooth]# pair 4C:90:DE:92:00:00
Attempting to pair with 4C:90:DE:92:00:00
[CHG] Device 4C:90:DE:92:00:00 Connected: yes
[NEW] Primary Service
        /org/bluez/hci0/dev_4C_90_DE_92_00_00/service0001
        00001801-0000-1000-8000-00805f9b34fb
        Generic Attribute Profile
[NEW] Characteristic
        /org/bluez/hci0/dev_4C_90_DE_92_00_00/service0001/char0002
        00002a05-0000-1000-8000-00805f9b34fb
...
[NEW] Characteristic
        /org/bluez/hci0/dev_4C_90_DE_92_00_00/service003a/char003b
        00002a8a-0000-1000-8000-00805f9b34fb
        First Name
[NEW] Characteristic
        /org/bluez/hci0/dev_4C_90_DE_92_00_00/service003a/char003d
        00002a90-0000-1000-8000-00805f9b34fb
        Last Name
[NEW] Characteristic
        /org/bluez/hci0/dev_4C_90_DE_92_00_00/service003a/char003f
        00002a8c-0000-1000-8000-00805f9b34fb
        Gender
...
[CHG] Device 4C:90:DE:92:00:00 UUIDs: 0000181c-0000-1000-8000-00805f9b34fb
[CHG] Device 4C:90:DE:92:00:00 UUIDs: 0000aaa0-0000-1000-8000-aabbccddeeff
[CHG] Device 4C:90:DE:92:00:00 ServicesResolved: yes
Request confirmation
[agent] Confirm passkey 210165 (yes/no): yes
[Pixel XL]# trust 4C:90:DE:92:00:00
[CHG] Device 4C:90:DE:92:00:00 Trusted: yes
Changing 4C:90:DE:92:00:00 trust succeeded

The peripheral device is a Google Pixel XL running Android 10 using Nordic’s nRF app with an advertising profile setup with dummy information. If you pair with a device that does not have some kind of service running, it will disconnect, as BT/BLE has nothing to do.



How does worldwide mode differ from setting a country code?

For international use, we recommend leaving the 60 configured in the default static worldwide mode as this mode will not violate any of our modular certifications.

The 60 series in static WW mode:

  • 2.4GHz band
    • Limited to channels 1-11 for both client and AP mode
  • 5GHz band
    • Flagged for no-IR (no initiating radiation)
      • Initial passive scanning in client mode
      • Standalone AP mode will not be available
    • Restrictions are due to the lack of a radar detection engine used for master devices complying to DFS regulations and different DFS requirements per region
  • Assumes you are going for EN 300 440 which allows the 60 to operate as an SRD on UNII-3 in the ETSI region
  • Is limited to the lowest common denominator of transmit power levels per channel and channel set available of the currently supported modular certifications
    • This mode may only become more restricted; for instance we may add a new modular cert that introduces further restrictions

How do I test running a GATT server in Linux?

Using the test scripts provided with BlueZ to setup a GATT server:

cd /lib/bluez/test/
./example-gatt-server &

Power on Bluetooth, start advertising and set to pairable:

# bluetoothctl
Agent registered
[bluetooth]# power on
Changing power on succeeded
[bluetooth]# advertise on
[bluetooth]# pairable on

Connect with Nordic's nRF smartphone app and read the fake battery level.



What is the difference between the Sterling supplicant and open-source wpa_supplicant?

The Sterling supplicant is based on the open-source wpa_supplicant and is also provided as an open-source package.

We update the source and patch as needed to make sure we are up to date on the latest CVEs.

It also goes through our QA validation process with each production release of backports and firmware. For more information, see the release notes on GitHub:

How do I confirm WiFi connection status in Linux?

The iw tool can be used to read the status of the device:


# iw dev

phy#0
        Unnamed/non-netdev interface
                wdev 0x2
                addr 7e:4a:78:cc:85:77
                type P2P-device
                txpower 31.00 dBm
        Interface wlan0
                ifindex 7
                wdev 0x1
                addr aa:bb:cc:07:0c:b1
                ssid testAP
                type AP
                channel 11 (2462 MHz), width: 20 MHz, center1: 2462 MHz
                txpower 31.00 dBm

Managed/client mode link information:

# iw wlan0 link

Connected to aa:bb:cc:12:34:56 (on wlan0)
        SSID: testAP
        freq: 2462
        RX: 364 bytes (2 packets)
        TX: 3782 bytes (22 packets)
        signal: -31 dBm
        tx bitrate: 2.0 MBit/s
        bss flags:      short-slot-time
        dtim period:    2
        beacon int:     200

AP mode to read connected client information:

# iw wlan0 station dump

Station aa:bb:cc:8b:6c:fe (on wlan0)
        inactive time:  3000 ms
        rx bytes:       6479
        rx packets:     37
        tx bytes:       9706
        tx packets:     66
        tx failed:      0
        signal:         -44 [-44] dBm
        tx bitrate:     1.0 MBit/s
        rx bitrate:     65.0 MBit/s
        authorized:     yes
        authenticated:  yes
        associated:     yes
        WMM/WME:        yes
        TDLS peer:      no
        DTIM period:    2
        beacon interval:100
        short slot time:yes
        connected time: 20 seconds



Is there a way to discover firmware version, country code or other information on a running system?

We provide a sysfs entry for this purpose:

cat /sys/class/net/wlan0/device/lrd/info
Driver name : lrdmwl
Chip type   : 88W8997-PCIE
HW  version : 7
FW  version : 5.4.29.5
DRV version : 8.1.0.11
OTP version : 1
OTP num mac : 2
Radio Type  : ST
MAC address : c0:ee:40:50:00:00
Region code : 0xff (0xff)
Country code: '00' ('00')
TX antenna  : 2
RX antenna  : 2

How do I enable a total of 3 BSSIDs for AP mode?

You must load Summit firmware for multi-BSSID support. After loading the driver and firmware, perform the following: Stop all software that may be managing the Wi-Fi interface including the supplicant, NetworkManager, connman, hostapd, etc.

List out the current virtual interfaces on the physical interface (phy):


# iw dev
phy#0
        Interface wlan0
                ifindex 7
                wdev 0x1
                addr c0:ee:40:50:00:00
                type managed
                txpower 20.00 dBm



Delete the virtual interface:


# iw wlan0 del



Add up to 3 virtual interfaces onto the phy using unique names per dev (note there are two underscores in __ap):


# iw phy0 interface add ap0 type __ap
# iw phy0 interface add ap1 type __ap
# iw phy0 interface add ap2 type __ap



Confirm the virtual interfaces exist:


# iw dev
phy#0
        Interface ap2
                ifindex 10
                wdev 0x4
                addr c0:ee:40:50:00:02
                type AP
                txpower 20.00 dBm
        Interface ap1
                ifindex 9
                wdev 0x3
                addr c0:ee:40:50:00:01
                type AP
                txpower 20.00 dBm
        Interface ap0
                ifindex 8
                wdev 0x2
                addr c0:ee:40:50:00:00
                type AP
                txpower 20.00 dBm

The MAC on the first interface will not change and each subsequent interface added will add 1 to the first MAC.



How many BSSIDs are supported for AP mode?

For Sterling supplicant it is limited to only 1, for the Summit supplicant it is a total of 3.

More information comparing the Summit vs Sterling stack can be found in the Summit stack product brief:

What are some common wpa_supplicant network block profiles?

Open/unsecured Network:


network={
        ssid="myAP"
        key_mgmt=NONE
        scan_ssid=1
}



WPA2-PSK:


network={
        ssid="myAP"
        key_mgmt=WPA-PSK
        psk="password"
        pairwise=CCMP
        group=CCMP
        proto=RSN
        scan_ssid=1
}



WPA2-AES with EAP-TLS


network={
    scan_ssid=1
    ssid="myAP"
    pairwise=CCMP
    group=CCMP
    key_mgmt=WPA-EAP
    proto=RSN
    eap=TLS
    identity="user1"
    private_key="/etc/certs/user1.pem"
    private_key_passwd="user1"
    client_cert="/etc/certs/user1.pem"
}



WPA-TKIP with PEAP MSCHAPv2:


network={
    scan_ssid=1
    ssid="myAP"
    key_mgmt=WPA-EAP
    eap=PEAP
    identity="user1"
    phase1="peaplabel=auto peapver=0 "
    phase2="auth=MSCHAPV2"
    password="user1"
}



For the full documentation provided by the wpa_supplicant maintainers, please visit: https://w1.fi/cgit/hostap/plain/wpa_supplicant/wpa_supplicant.conf

What do I need to consider when desinging in the chip-down/SIPT version so I can leverage your modular certifications?

In order to leverage our modular certifications, you must follow the RF design of the module associated with the chip/SIPT. Design files will be provided upon request so you can reproduce our design on your custom board. We highly suggest you to take advantage of our free design review to prevent any issues when going for certification testing.

Please submit a ticket using our support portal when you are ready to begin the process.

What is the default country code for the 60 and how to do I change it?

The country code is stored in one time programmable memory (OTP) on the 60 Series module. The default is worldwide mode. You can permanently change this in manufacturing using the LMU (Laird Manufacturing Utility). For access to this tool, please submit a ticket using our support portal and we can send you a link to the pre-compiled binaries. More information about using the tool, please download the laird-sterling-60-docs-<ver>.tar.bz2 archive and read the vendor tools application note available here.

Where do I access the tools used for certification testing with the 60 Series?

The LRU (Laird Regulatory Utility) and manufacturing firmware are used to exercise the 60 Series radios during certification testing. We do not publicly provide the LRU, however you can submit a ticket using our support portal and we will provide the pre-compiled binaries via a secure link. For more information regarding the use of the tool, please download the laird-sterling-60-docs-<ver>.tar.bz2 archive and read the vendor tools application note.

Can I use the Marvell firmware that comes with my kernel?

We provide custom "thinmac" firmware that not only includes optimizations and power tables but is designed to run on the 60 Series modules. Using firmware that is not provided by us will violate the modular certifications and may not work with our module.

Can I use the Marvell driver that comes with my kernel?

We provide driver support via our fork of the backports package. Backports replaces the kernel-side Bluetooth stack and Wi-Fi stack including cfg80211, mac80211 and custom "lrdmwl" driver. We regularly perform a kernel rebase to keep up with LTS releases which provides the benefit of running a modern stack on a range of kernels. We perform build verification regression testing including popular silicon vendor kernels such as Xilinx, nVidia, ST Micro, TI and NXP. All releases are QA validated in our automated testing system.

We support our customers integrating backports in different Linux build environments including Yocto, Buildroot and PetaLinux. Please contact support if integration assistance is needed.

How do I know what CVEs/vulnerabilities have been addressed and in which version of code?

CVEs that have been addressed are referenced in our release notes. If there is a new CVE or one that is not listed in our release notes, please submit a ticket using our support portal and we will provide the status.

Radio-specific release notes can be found in the corresponding GitHub repo: https://github.com/LairdCP/Release-Packages

When only using one antenna in my 60-series design, do I need termination for the unused antenna port?

Yes, the unused antenna port needs to be terminated with 50 Ohms.
Please also refer to the application note "app_note_60_siso" that can be found in the documentation archive on Github where you downloaded the Laird software for the module.

Where do I find most relevant technical documents for the 60-series modules?

On Github where all software releases for the 60-series modules can be found 60 Releases amongst every release there is an archive called for example: "laird-sterling-60-docs-8.3.0.16.tar.bz2 In the archive there are technical documents like:

  • app_note_60_antenna_adjust
  • app_note_60_reset
  • app_note_60_siso
  • app_note_60_summit_awm
  • app_note_60_summit_supplicant
  • app_note_60_vendor
  • app_note_60_wow
  • sig_60_series_radio
  • user_guide_60_dvk_su60_sipt
  • user_guide_60_networkmanager

Most of them are very relevant for your development with the 60-series Wifi module.



How do I use your precompiled dynamically linked binaries such as your supplicants or radio testing tools?

If the binary returns "not found" or does not work after confirming the executable bit is set with chmod +x <filename>, then you will need to create a symlink pointing to the system's interpreter. The file tool will show the expected interpreter and architecture of a binary, readelf is a lot more verbose and is used to discover the expected "sonames" of shared libraries. These utilities do not have to be used on the target system and is convenient to use on a common x86 Linux machine. These utilities can be installed on Ubuntu with sudo apt install binutils.

Example output from the file command:
sterling_supplicant-arm-7.0.0.139/usr/sbin$ file wpa_supplicant
wpa_supplicant: ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.3, for GNU/Linux 3.0.0, stripped

Example output from the readelf command:
sterling_supplicant-arm-7.0.0.139/usr/sbin$ readelf -ld wpa_supplicant Elf file type is EXEC (Executable file)
Entry point 0xba28
There are 10 program headers, starting at offset 52 Program Headers:
...
<edited>
...
      [Requesting program interpreter: /lib/ld-linux.so.3]
...
<edited>
...
Dynamic section at offset 0x176ee8 contains 30 entries:
  Tag        Type                         Name/Value
 0x00000001 (NEEDED)                     Shared library: [librt.so.1]
 0x00000001 (NEEDED)                     Shared library: [libnl-3.so.200]
 0x00000001 (NEEDED)                     Shared library: [libnl-genl-3.so.200]
 0x00000001 (NEEDED)                     Shared library: [libdl.so.2]
 0x00000001 (NEEDED)                     Shared library: [libdbus-1.so.3]
 0x00000001 (NEEDED)                     Shared library: [libgcc_s.so.1]
 0x00000001 (NEEDED)                     Shared library: [libc.so.6]
...
<edited>
...

To use this binary, we will have to confirm this symlink exists or create a new symlink pointing to the interpreter on the target filesystem:
cd /lib/
ls -l ld-*
-rwxr-xr-x    1 root     root        158772 Dec  2  2019 /lib/ld-2.26.so
ln -sf ld-2.26.so ld-linux.so.3
ls -l ld-*
-rwxr-xr-x    1 root     root        158772 Dec  2  2019 /lib/ld-2.26.so
lrwxrwxrwx    1 root     root            10 Dec 21 18:55 /lib/ld-linux.so.3 -> ld-2.26.so

If the binary now reports that a library is not found when executed, repeat the steps shown above for creating a library symlink/soname pointing to it's real name. This may require you to use the find command to discover the location of the library. Example for libnl-genl-3:
find / -name 'libnl-genl-3*' -exec ls -l {} 2>/dev/null \;
-rwxr-xr-x    1 root     root         18524 Feb 14 23:42 /usr/lib/libnl-genl-3.so.200.26.0
cd /usr/lib/
ln -sf libnl-genl-3.so.200.26.0 libnl-genl-3.so.200
ls -l libnl-genl-3*
-rwxr-xr-x    1 root     root         18524 Feb 14 23:42 /usr/lib/libnl-genl-3.so.200.26.0
lrwxrwxrwx    1 root     root            24 Feb 14 23:37 /usr/lib/libnl-genl-3.so.200 -> libnl-genl-3.so.200.26.0

If the library does not exist, you will have to include that package in your build. For instance if the above example libnl was missing, include the libnl package when building your filesystem.

What is my best chance to use an antenna that is not pre-certified for my wireless module?

To use an antenna that is not listed on your wireless modules datasheet, it must be of the same topology (e.g. dipole, PIFA, etc.), equal or lesser gain, and have the same in-band and out of band characteristics.

Note: Japan (MIC) lists applicable antennas on its certificates. If your antenna is not on the approved list, regardless of whether it is comparative, it must be added to the certificate before it can be used in Japan.

How do I manually cross-compile the Sterling supplicant from source?

It is best practice to include the source in your build system. If using Yocto, our external layer will do this for you.
Here is an example manually compiling using our SOM60 as a target in a Buildroot environment:



  1. Download and extract the Sterling supplicant source.
  2. Navigate to the "laird" directory.
  3. Edit the config_laird file:
  4. Find the following line, uncomment and change the path to your "openssl/include" directory:
    original line:
    #CFLAGS += -I/usr/local/openssl/include
    modified line:
    CFLAGS += -I/wb/buildroot/output/som60sd/build/host-libopenssl-1.1.1d/include
  5. Run make with the following flags
    set:
    CC="" for your cross-compile binary
    PKG_CONFIG="" for your pkg-config binary
    PKG_CONFIG_PATH="" for your pkgconfig directory
    OBJCOPY="" for your objcopy binary



Note the following example is a single line command:
make CC="/wb/buildroot/output/som60sd/host/bin/arm-buildroot-linux-gnueabihf-gcc" PKG_CONFIG="/wb/buildroot/output/som60sd/host/bin/pkg-config" OBJCOPY="/wb/buildroot/output/som60sd/host/arm-buildroot-linux-gnueabihf/bin/objcopy" PKG_CONFIG_PATH="/wb/buildroot/output/som60sd/host/arm-buildroot-linux-gnueabihf/sysroot/usr/lib/pkgconfig"

Backports fails to compile with 'refcount_t {aka struct refcount_struct}' has no member named 'counter'

There are certain patch ranges within kernels 4.4 and 4.9 that need a modification so backports can build, the reason why we cannot fix it in backports is that we cannot track and differentiate between patch versions of the same 'major.minor' version of kernel. To fix this issue, move the function kobject_has_children from linux/kobject.h to drivers/base/core.c in your kernel source, rebuild the kernel and then rebuild backports.

Does the ST60-2230C support 3.3 VIO?

No, the ST60 SIPT module on the 2230C carrier board is strapped for 1.8 VIO operation only. Design for an embedded SDIO operation and does not allow 3.3 VIO even during card enumeration.

How can I receive notifications of the latest updates to the driver and firmware?

Simply log into GitHub, go to the corresponding release packages page and click the "Watch" button (eye icon) in the top right of the page. Some radios (such as the LWB Series) requires you to download firmware separately from the product page; this firmware is updated on the product page in conjunction with GitHub releases.

Release Packages

What are the requirements to be able to leverage "Modular Approval"?

In order to be able to leverage the Modular Approval of a wireless module the following requirements have to be met:

  • The RF circuitry must be shielded
  • The module must have buffered modulation/data inputs. Module must inherently ensure compliance under host fault (watch dog) conditions
  • The module must have a regulated power supply
  • An antenna needs to be attached permanently or a unique antenna connector must be mounted on the module
  • The module must be compliant with the regulations in a stand-alone configuration
  • The module must be labeled with its permanently affixed FCC ID label or use an electronic display
  • A user manual needs to provide comprehensive instructions to explain compliance requirements.
  • The module must comply with RF exposure requirements
