Catalina95
Catalina i.MX 95 SBC
Overview
The Catalina SBC family is designed for IoT applications in rugged and industrial environments.
The Catalina family of i.MX 95 industrial single board computers are built on the NXP™ i.MX 95 processor. Featuring CE-ready design, 10-Gigabit Ethernet and flexible expansion sockets (Mini-PCIe, M.2, and more), it delivers high-performance connectivity and expandability. Made in the USA for uncompromising quality and reliability, Catalina also integrates NXP’s EdgeLock® security enclave to support FIPS 140-3-aligned security and tamper-resistant key storage. Its on-chip NPU accelerates machine learning workloads at the edge, making Catalina ideal for secure, performance-critical embedded applications such as IoT gateways, machine learning, unmanned aerial vehicle (UAV) systems, and robotics platforms.
Specifications
Processing
Processor On Board
NXP i.MX 95 ARM® Cortex-A55 64-bit 1.8GHz Six Core
Features
Memory
4GB LPDDR5 (16GB Max)
Flash Storage
8GB eMMC (64GB Max)
Security
Optional NXP EdgeLock SE052F Security Chip
Accelerometer
3-Axis
Additional Features
802.3af/at (Requires optional PoE adapter)
Connectivity
Wi-Fi Interfaces
Use Mini-PCIe or M.2 Adapters
BT Interfaces
Use Mini-PCIe or M.2 Adapters
Interface (Serial)
2 RS232 or 1 RS4852 CAN Bus
Interface
Video Features
MIPI
Physical Interface
1xI2C Bus,1xSPI Bus
GPIO
Standard
GPS Ports
Optional u-blox GPS with GLONASS
USB
1xUSB2.0
Power
Input Voltage
8-60VDC
Environment
Temperature Range
-40 to +85C
| Part Number | Price @ 1K | Additional Description | Cellular Ports | Development Kits Available | Flash Storage | GPS Ports | Interfaces - General | Memory | Physical Interface | Processor On Board | Security | Size | Software | Temperature Range | Video Features | Wi-Fi Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

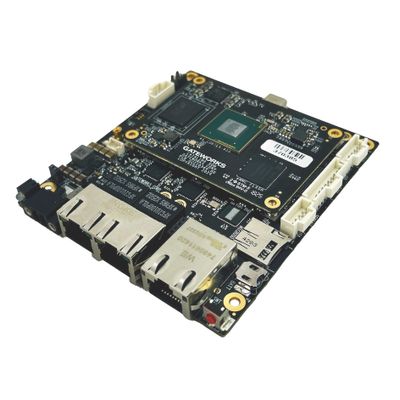

/filters:background_color(white)/2026-08/gw9200-bright.jpg) GW9200-S00 Active | N/A | GW9200 Baseboard and GW9000 SOM | Use Mini-PCIe Modem | GW11059 (includes JTAG programmer, power supply and appropriate accessory cables ) | 8 GB eMMC | None | Two Gigabit Ports, Optional 10 Gigabit Port | 4 GB LPDDR5 | Two Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) | NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55 | 90 x 100mm | Linux Ubuntu Board Support Package | -40°C to +85°C | MIPI-DSI or MIPI-CSI (Shared) | Use Mini-PCIe Cards or M.2 Adapter | |
GW9201-S01 Active | N/A | GW9201 Baseboard and GW9001 SOM | Use Mini-PCIe Modem | GW11059 (includes JTAG programmer, power supply and appropriate accessory cables ) | 64 GB eMMC | u-blox GPS | One 10 Gigabit Port and Two Gigabit Ports | 8 GB LPDDR5 | Two Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) | NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55 | EdgeLock Included | 90 x 100mm | Linux Ubuntu Board Support Package | -40°C to +85°C | MIPI-DSI or MIPI-CSI (Shared) | Use Mini-PCIe Cards or M.2 Adapter |
GW9201-S02 Active | N/A | GW9201 Baseboard and GW9002 SOM | Use Mini-PCIe Modem | GW11059 (includes JTAG programmer, power supply and appropriate accessory cables ) | 64 GB eMMC | u-blox GPS | One 10 Gigabit Port and Two Gigabit Ports | 4 GB LPDDR5 | Two Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) | NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55 | EdgeLock Included | 90 x 100mm | Linux Ubuntu Board Support Package | -40°C to +85°C | MIPI-DSI or MIPI-CSI (Shared) | Use Mini-PCIe Cards or M.2 Adapter |

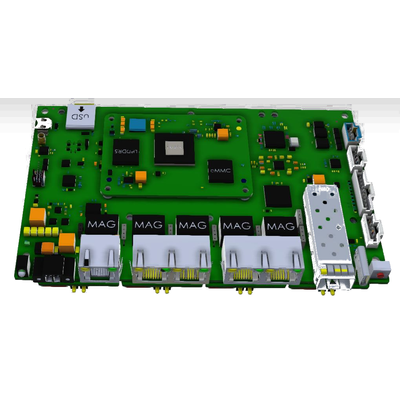

/filters:background_color(white)/2026-08/gw9400-3d-front.png) GW9400-S00 Active | N/A | GW9400 Baseboard and GW9000 SOM | Use Mini-PCIe Modem | GW11061 | 8 GB eMMC | None | Five Gigabit Ports and One 10GbE SFP | 4 GB LPDDR5 | Four Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) | NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55 | 160 x 100mm | Linux Ubuntu Board Support Package | -40°C to +85°C | MIPI DSI or CSI | Use Mini-PCIe Cards or M.2 Adapter | |
GW9401-S01 Active | N/A | GW9401 Baseboard and GW9001 SOM | Use Mini-PCIe Modem | GW11061 | 64 GB eMMC | u-blox GPS | Five Gigabit Ports and One 10GbE SFP | 8 GB LPDDR5 | Four Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) | NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55 | 160 x 100mm | Linux Ubuntu Board Support Package | -40°C to +85°C | MIPI DSI or CSI | Use Mini-PCIe Cards or M.2 Adapter | |
GW9401-S02 Active | N/A | GW9401 Baseboard and GW9002 SOM | Use Mini-PCIe Modem | GW11061 | 64 GB eMMC | u-blox GPS | Five Gigabit Ports and One 10GbE SFP | 4 GB LPDDR5 | Four Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) | NXP™ i.MX 95 Six Core 1.8GHz ARM® Cortex™-A55 | EdgeLock Included | 160 x 100mm | Linux Ubuntu Board Support Package | -40°C to +85°C | MIPI DSI or CSI | Use Mini-PCIe Cards or M.2 Adapter |
