Nitrogen95 EVK - i.MX95 Evaluation Kit
Overview

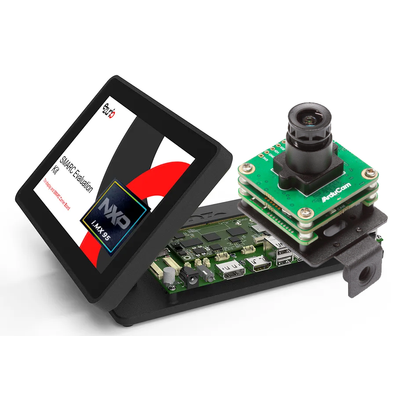

Available in two variants: With or without Arducam x-ISP 3.8MP 4K Camera!

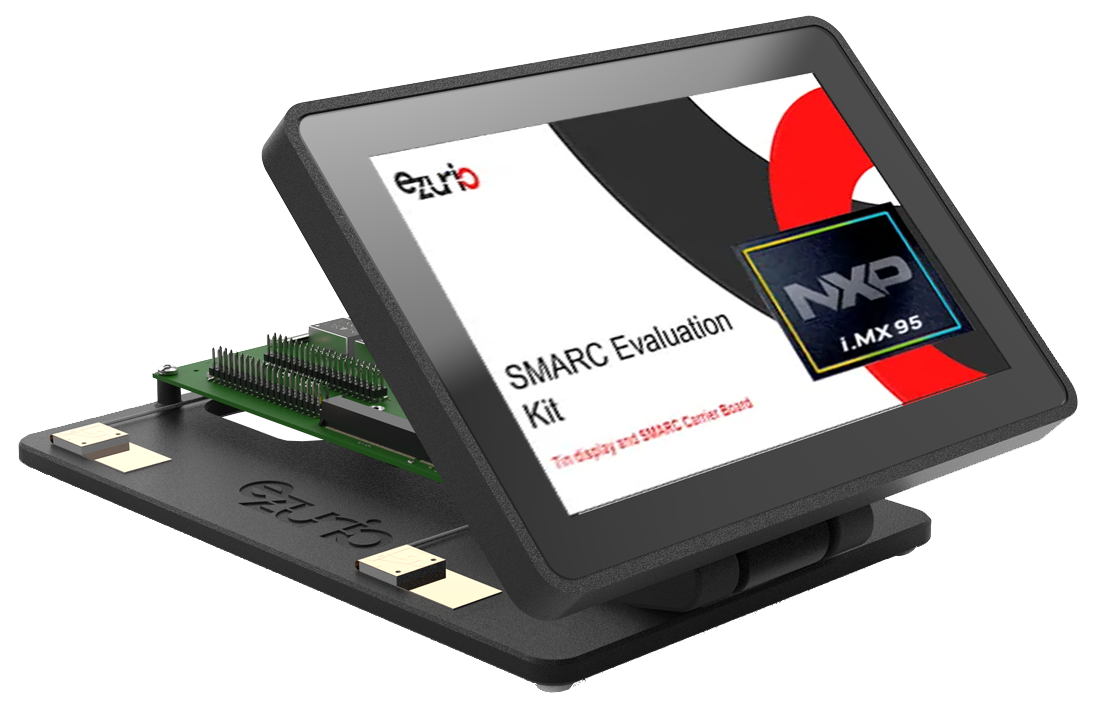

Our new Nitrogen95 SMARC Evaluation Kit includes our NXP i.MX 95-based SMARC SOM which has an onboard NXP IW611-based Sona NX611 Wi-Fi 6 + Bluetooth 5.4 module, 7-inch touchscreen display with stand, SMARC Carrier Board, Wi-Fi and BT antenna, and accessory cables. The Nitrogen95 SMARC Evaluation Kit is designed to allow commercial, industrial, and medical device design teams a platform for easy evaluation of the Nitrogen95 SMARC. After evaluation of the Nitrogen95 SMARC, our in-house USA based assembly allows your team to choose the best RAM, storage, and connectivity options for your product. The Nitrogen95 SMARC Evaluation Kit comes with our industry-leading software and integration support to accelerate your product development team.
A Powerful and Complete Kit
Everything the i.MX95 Has to Offer
Our Nitrogen95 Evaluation Kit has everything you need to bring your embedded designs to live. It includes a touchscreen enclosure to prototype HMI applications, optional Arducam xISP 8.3MP 4K camera to design for machine vision, a dedicated NXP eIQ® Neutron NPU for AI acceleration, and access to the SMARC's many interfaces via our fully-featured SMARC carrier board.
Fast Facts
App Processor
6x Cortex-A55 cores
@ up to 1.8 GHz
Real-Time MCU
1x Cortex-M7 core
@ up to 800 MHz
System Management MCU
1x Cortex-M33 core
@ up
to 333 MHz
GPU
Arm® Mali G310 v2
Up to 64 GFLOPS (fp32)
NPU
NXP eIQ® Neutron N3-1024S
AI Accelerator
Interfaces
LVDS,MIPI-CSI, USB, CAN,
UART, SPI, I2C, GPIO, microSD
Multimedia
Touch display, speakers, headphone, mic, line in
Networking
2x Gb Ethernet, Wi-Fi 6, Bluetooth 5.4
Everything Included in the Box
Nitrogen95
SMARC
NXP i.mx95-based SMARC SOM
Sona
NX611
NXP IW611-based Wi-Fi 6 and Bluetooth 5.4
Touch
Display
7-inch display with stand
SMARC
Carrier
Carrier board for Ezurio SMARC SOMs
FlexPIFA
Antenna
2.4 GHz Wi-Fi and Bluetooth Antenna
Accessory
Cables
Dual DB9 Serial Cable and Power Supply
Camera
(Optional)
Arducam x-ISP 3.8MP 4K Camera
Develop Your Way with Our Software Partners
Ezurio offers prebuilt images for some of the most popular software tools in the embedded space. Our software partnerships give you the quickest route to getting up and running with the most popular embedded software offerings in the world.
Resource Center
-
/filters:background_color(white)/2025-08/Thumbnail%20-%20Kynetics%20EADT.png)
Demo: Kynetics Embedded Android Developer Toolkit (EADT) on the Nitrogen95 SMARC
Kynetics' Embedded Android Developer Toolkit (EADT) supports android development for the best and most reliable hardware/software integration. In combination with sample applications and Kynetics'...
-
/filters:background_color(white)/2025-01/som-sbc-thumbnail.png)
Introducing our SMARC SOMs and SBCs
Ezurio's (formerly Laird Connectivity) System-on-Modules (SOMs) and Single Board Computers (SBCs) give OEMs the fastest route to market for embedded computing with wireless connectivity.
-
/filters:background_color(white)/2025-07/NXP-SMARC-SOM-Post-V2.jpg)
Nitrogen SMARC SOMs: NXP Based Connected SOMs Now Available with NXP Wi-Fi 6
Largest lineup of SMARC SOMs with NXP processor and NXP Wi-Fi 6 - only from Ezurio
-
/filters:background_color(white)/2024-03/8MP_SMARC-RENDER.on%20end.png)
What Is The SMARC Standard and What It Can Do For Your Design
In this first of a series of blog posts, we discuss various aspects of the SMARC standard, a critical component of our SOM portfolio, and what it means for our customers.
Ezurio is an NXP Gold Partner
Ezurio is honored to be approved as an NXP Gold Partner! We look forward to working with the NXP team to deliver the solutions our customers need in an ever changing wireless future. Please follow the link for more information.
| Part Number | Price | Additional Description | Product Type |
|---|---|---|---|

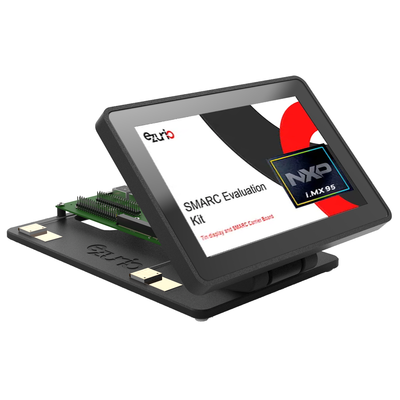

/filters:background_color(white)/2025-09/EZSMI-959-0816-00158-2-K21.png) EZSMI-959-0816-00158-2-K2Buy Options | N/A | Nitrogen95 SMARC Evaluation Kit: BETA / 7 in Display / SMARC Carrier Board / i.MX 95 / 8GB / 16GB eMMC / NX611 1MHF / Accessories | Evaluation Kit |

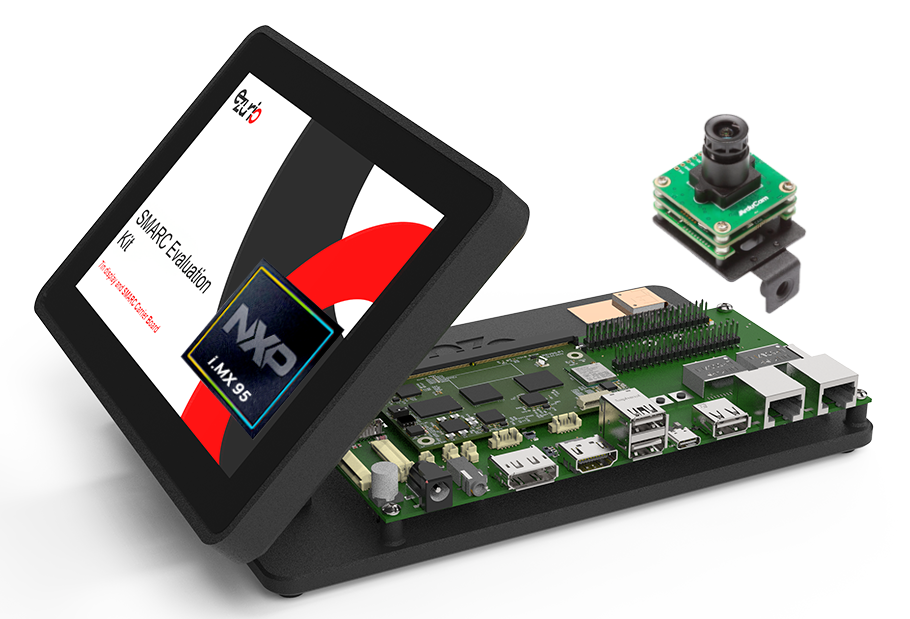

/filters:background_color(white)/2025-09/EZSMI-959-0816-00158-2-KC1.png) EZSMI-959-0816-00158-2-KCBuy Options | N/A | Nitrogen95 SMARC Evaluation Kit: BETA / 7 in Display / 8.3MP CAMERA / SMARC Carrier Board / i.MX 95 / 8GB / 16GB eMMC / NX611 1MHF / Accessories | Evaluation Kit |
