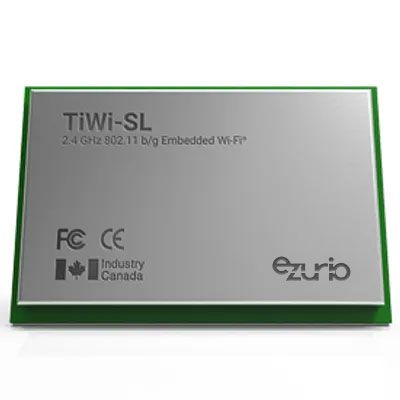

TiWi-SL

End of Life (EOL)

Overview

Self-contained 802.11 b/g WLAN module

TiWi-SL is the industry's first industrial temp-rated 802.11 b/g Wi-Fi™ module. It has been designed for simple connectivity to the industry's most popular microcontroller platforms. It utilizes Texas Instruments' CC3000 SimpleLink™ technology to move nearly all the functions required for Wi-Fi™ off the host processor and onto the module.

Development Kits

  • 450-0089

    450-0089

    End of Life (EOL)
    Additional Description
    TiWi-SL EM Board w/ Chip Antenna
    Antenna Type
    External
    Logical Interfaces
    SPI, Serial, GPIO
    Learn More

Specifications

Certifications
FCC, ISED, EU
Dimension (Height - mm)
2.3 mm
Dimension (Length - mm)
14 mm
Dimension (Width - mm)
21 mm
Interfaces - General
SPI
Line
Professional
Operating Temp (Max) (°C)
+85 °C
Operating Temp (Min) (°C)
-40 °C
Receive Sensitivity
-88 dBm, 8% PER, 11 Mbps
-75 dBm, 10% PER, 54 Mbps
Transmit Current
250 mA, 1 Mbps CCK (b)
177 mA, 54 Mbps OFDM (g)
Transmit Power
18.0 dBm, 1 Mbps, CCK (b)
13.9 dBm, 54 Mbps, OFDM (g)
Voltage
2.9 V - 3.6 V
Wi-Fi Chipset
TI CC3000
Wi-Fi Spec
b/g
Part NumberAdditional DescriptionAntenna TypeChipset (Wireless)Frequency Range (Max)Frequency Range (Min)Logical InterfacesProduct TypeSystem ArchitectureTechnology
TiWi-SL
450-0067
End of Life (EOL)
Buy Now
TiWi-SL Module, Tray External TI CC3000 2495 MHz2400 MHzSPI, Serial, GPIO Embedded Module Hosted 802.11bgn, Bluetooth Classic
TiWi-SL
450-0067R
End of Life (EOL)
Buy Now
TiWi-SL Module, TR External TI CC3000 2495 MHz2400 MHzSPI, Serial, GPIO Embedded Module Hosted 802.11bgn, Bluetooth Classic

Documentation

Name Part Type Last Updated
INI file and Firmware for WLAN Eval Tool All Software 03/29/2019
WLAN and Bluetooth Radio Tools User Guide All Software 05/01/2019
WLAN Eval Tool All Software 03/29/2019
Antenna Design Guide All Documentation 03/29/2019
Datasheet - TiWi5 All Datasheet 09/05/2024
Power Guide Application Note All Documentation 03/29/2019
Product Brief - TiWi5 All Product Brief 09/05/2024
TiWi-SL EOL Notice All Documentation 03/29/2019
3D Models CAD Downloads (2-15-2012)(450-0067) All Technical Drawings 03/29/2019
SCH/PCB Models CAD Downloads (2-15-2012)(450-0067) All Technical Drawings 03/29/2019
EM Board User Guide All Documentation 03/29/2019
Conflict Minerals Statement All Quality and Environmental 08/09/2024
EU RoHS (2011/65/EU) All Quality and Environmental 03/29/2019
WEEE Statement All Quality and Environmental 03/29/2019
Declaration of Conformity (DoC) All Certification 03/29/2019
