MIKROE-6021 Click Board

Lyra 24
    Contact Us

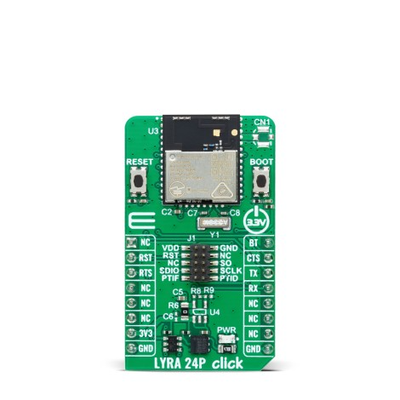

    The Lyra 24P Click is a compact and secure Bluetooth Low Energy add-on board featuring the Ezurio Lyra 24P module, based on the Silicon Labs EFR32BG24 SoC. Supporting BLE 5.3 and built around a Cortex-M33 processor running at 39 MHz, it delivers robust wireless performance with a high transmit power of up to +19.6 dBm. The module includes Silicon Labs’ Secure Vault technology for enhanced security and integrates a PCB antenna for a streamlined, space-efficient design—ideal for applications requiring strong Bluetooth connectivity and advanced security in compact embedded systems.

    Learn More at MIKROE


    Specifications

    Additional Description
    BLE 5.3; +19.6 dBm TX; Cortex-M33 @39MHz; Secure Vault; Built-in antenna; Lyra 24P (EFR32BG24); Integrated PCB antenna
    Antenna Type
    Integrated PCB antenna
    Dimension (Length - mm)
    42.9 mm
    Dimension (Width - mm)
    25.4 mm
    Logical Interfaces
    UART
    Operating Temp (Max) (°C)
    +85 °C
    Operating Temp (Min) (°C)
    -40 °C
    Power Supply
    3.3 V
    Product Type
    Click Board

    Buy Now

    Sorry, no inventory of this part found at this time. Please contact us to purchase.
