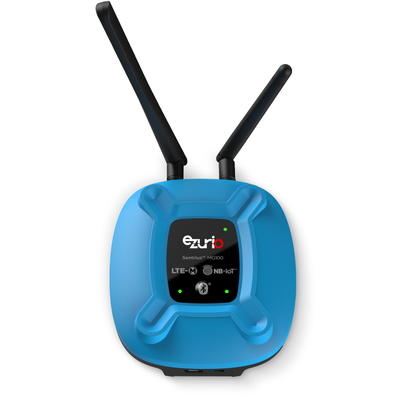

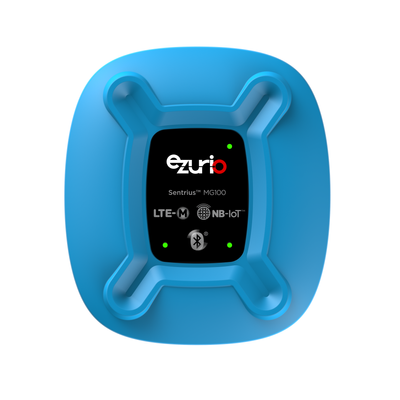

Sentrius™ MG100 Gateway with LTE-M/NB-IoT and Bluetooth 5

Recommended for New Design (RND)

Overview

Powered by Ezurio's (formerly Laird Connectivity) Pinnacle™ 100 Modem, the Sentrius MG100 Gateway captures data from Bluetooth 5 long range sensors and sends it to the cloud via a global low power cellular (LTE-M/NB-IoT) connection.

Develop your BLE-to-Cloud Applications using Python!

Our Canvas™ software suite enables rapid embedded development across our MCU-based wireless products. Build your wireless IoT application in days, not months, with embedded Python scripts. Start with our feature-rich sample apps and customize to create your next big thing.

Learn more at www.lairdconnect.com/canvas

Flexible Power Options

Power the gateway with an external USB power supply with product options for a rechargeable backup battery in the event of a short-term power outage.

Antenna Choice

Use low-cost internal LTE and Bluetooth antennas or choose the external antenna variants to suit your application environment.

Option for Canvas Device Management

  • VS Code development environment to develop Python applications for Canvas hardware
  • Sample Python scripts for BLE, MQTT, HTTP, and LWM2M connectivity
  • Advanced deployment tools including mobile app (Android and iOS) to update device firmware, as well as engineering services support.

Device programming: via Ezurio USB-SWD programming kit (453-00062-K1) and TC2030-CTX 6-pin Dupont TC2030 Plug-of-Nails cable.

LTE-M/NB-IoT radio via Sierra Wireless HL7800 module (Chipset: Altair ALT1250)

LTE bands 1, 2, 3, 4, 5, 8, 12, 13, 20, 28

Nordic nRF52840 – Bluetooth v5, Coded PHY (Long range), 1MPHY & 2MPHY support

Onboard Cortex-M4F Microcontroller – 32-bit @ 64 MHz, 256 KB of RAM, 1 MB internal flash, 8 MB QSPI

NFC Support and integrated antenna

Certifications – FCC, ISED, CE, UKCA, Bluetooth SIG plus PTCRB, GCF and End Product certified – AT&T and Verizon

Antenna options – Unique integrated antenna variant plus external variant with SMA connectors

Battery backup options for mains power outage needs

Multi-purpose button and three configurable LEDs

Compact form factor: 110.28 mm x 99.16 mm x 35.32 mm

Customization – Custom branding, packaging, application development all available.

Build Your Wireless IoT Application with Canvas

Our Canvas™ software suite enables rapid embedded development across our MCU-based wireless products. Cross-chipset middleware, easy-to-use wireless APIs, on-module scripting and intuitive desktop/mobile tools are all available to dramatically ease embedded development.

Explore Canvas Software Suite

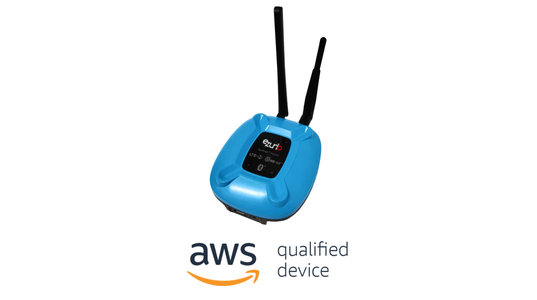

Now an AWS Qualified Device with Amazon!

Amazon AWS is the world’s most popular platform for IoT devices, and our AWS Qualified Device Listing is the latest in our efforts to bring our development efforts directly to the customer. The MG100 is now listed in the AWS Partner Device Catalog, as a validation of the MG100’s compatibility and suitability for use on AWS IoT Core.

In a world of so many choices for wireless hardware, the AWS Qualified Device status is an assurance to customers that the MG100 meets the software and hardware requirements for AWS IoT Core operability.


Development Kits

  • 450-00011-K1

    450-00011-K1

    Recommended for New Design (RND)

    Sentrius MG100 Micro Gateway, LTE-M & NB1 Modem, BLE, MVNO SIM

    Antenna Type
    Internal
    Logical Interfaces
    USB, Micro SD
    Learn More
  • 450-00038-K1

    450-00038-K1

    Recommended for New Design (RND)

    Sentrius MG100 Micro Gateway, LTE-M & NB1 Modem, BLE, Battery Backup, MVNO SIM

    Antenna Type
    Internal
    Logical Interfaces
    USB, Micro SD
    Learn More
  • 450-00039-K1

    450-00039-K1

    Recommended for New Design (RND)

    Sentrius MG100 Micro Gateway, LTE-M & NB1 Modem, BLE, External Antenna, MVNO SIM

    Antenna Type
    External
    Logical Interfaces
    USB, Micro SD
    Learn More
  • 450-00054-K1

    450-00054-K1

    Recommended for New Design (RND)

    Sentrius MG100 Micro Gateway, LTE-M & NB1 Modem, BLE, External Antenna, Battery Backup, MVNO SIM

    Antenna Type
    External
    Logical Interfaces
    USB, Micro SD
    Learn More
  • 453-00062-K1

    453-00062-K1

    Additional Description

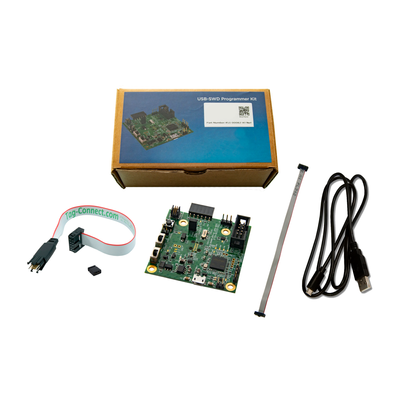

    USB-SWD Programming Kit: Includes mainboard, TC2050-IDC Tag Connect cable, 10-pin flat IDC cable, 1.2 m USB cable, and 2-pin jumper
    Learn More

Specifications

Additional Features
NFC
Accelerometer
Antenna Options
Unique integrated antenna variant plus external variant with SMA connectors
Battery
(optional) 2600 mAh standard capacity Lithium Ion 18650
Bluetooth Version
5
Cellular Carrier
AT&T
Verizon
Certifications
FCC, ISED, EU, UKCA, PTCRB, GCF, AT&T
Input Voltage
2.2 - 5.5 V
Interfaces - General
USB 2.0 Host
MicroSD slot (SDHC, SD Card 2.0)
LTE Category
LTE-M / NB-IoT
Memory
1 MB onboard flash
microSD card support
OS/Software
Software / RTOS Environment: nRF Connect SDK / Zephyr RTOS SDK for customizable applications
Option for Canvas Device Management: Application development environment to develop Canvas device management
Wireless Specification
LTE-M
NB-IoT
Bluetooth 5
NFC

Documentation

Name Part Type Last Updated
Product Brief - MG100 Gateway All Product Brief 02/28/2024
FCC/ISED Certifications - MG100 Gateway All Certification 02/08/2021
Truphone SIM Setup Guide All Legacy Material 02/15/2024
Product Brief - MG100 Micro-Gateway Power Supply - US Plug All Product Brief 07/08/2021
MG100 / Pinnacle Connect for Android (Google Play Store) All Legacy Material 12/16/2022
MG100 / Pinnacle Connect for iOS (Apple App Store) All Legacy Material 12/16/2022
Hardware Guide - MG100 Gateway All Documentation 12/16/2022
Product Brief - MG100 Micro-Gateway Power Supply - UK Plug All Product Brief 07/08/2021
Product Brief - MG100 Micro-Gateway Power Supply - EU Plug All Product Brief 07/08/2021
EU Certifications - MG100 Micro-Gateway All Certification 12/09/2022
User Guide - Programming the MG100 All Documentation 09/25/2020
Regulatory Information - MG100 All Certification 03/17/2023
Pinnacle_MG100 - Out of Box Demo Applications & Guide (GitHub) All Legacy Material 12/16/2022
Zephyr RTOS – Getting Started Guide (external link) All Documentation 12/16/2022
ISED ICES-003 Issue 7 Declaration of Compliance All Certification 05/18/2021
Application Note - MG100 IP6x COTS Housing Recommendation All Application Note 06/24/2021
Remotely debug your fleet of devices with the Memfault Platform (GitHub) All Legacy Material 12/16/2022
Verizon, Pinnacle 100/453-00011 Listing All Certification 08/23/2021
Verizon, Pinnacle 100/453-00010 Listing All Certification 08/23/2021
AT&T, Pinnacle 100/453-00011 Listing All Certification 08/23/2021
AT&T, Pinnacle 100/453-00010 Listing All Certification 08/23/2021
PCN 8O-2021 - MG100 / Pinnacle 100 / MG100-BT510 Starter Kit All Legacy Material 12/16/2022
Release Notes - Pinnacle 100 DVK, MG100, MG100-CT v6.0.0 All Legacy Material 02/15/2024
Getting Started with AWS IoT Core - MG100 All Legacy Material 12/16/2022
MG100-BT610 with Cumulocity IoT - Quick Start Guide All Legacy Material 12/16/2022
Release Notes - MG100 and Pinnacle100 - v6.2.0 All Legacy Material 02/15/2024
Canvas Gateway Firmware - Getting Started Guide All Legacy Material 02/15/2024
LwM2M Objects for Sensors and Gateways All Documentation 12/19/2022
Sensor Telemetry with Canvas Firmware - Thingsboard Example All Legacy Material 02/15/2024
Canvas Device Management - Software and Firmware (External Link) All Legacy Material 02/15/2024
Flashing Canvas Firmware to the MG100 All Documentation 07/10/2023
Canvas Gateway Firmware - Releases (Github.com) All Software 02/15/2024
Software User Guide - MG100 and Pinnacle 100 All Documentation 02/14/2024
BLE-to-MQTT Sample Application - Canvas - MG100, Pinnacle 100, BL5340DVK All Software 02/15/2024
PCN 1A-2024 - MG100 and Pinnacle 100 All Documentation 03/12/2024
Updating HL7800 Firmware on MG100 and Pinnacle 100 All Documentation 07/17/2024
Quick Start Guide - FloLIVE SIM Setup for Pinnacle 100 DVK and MG100 Micro-Gateway All Documentation 08/12/2024
Application Note - Pinnacle 100 OTA Updates With Canvas Software Suite All Application Note 10/10/2024
Product Brief - USB-SWD Programming Kit 453-00062-K1 Product Brief 09/13/2024

FAQ

Is there a way to determine the battery level on MG100 using Canvas?

Yes, battery level can be read on P0.02_AIN0 via the ADC machine class in Python.

https://lairdcp.github.io/canvas_python_docs/machine.html#machine.ADC

 There is also a python sample provided that measures and returns the battery voltage level.

 https://github.com/LairdCP/canvas_python_samples/blob/main/apps/mg100/adc/main.py

I'm having trouble transferring scripts to my Canvas enabled device, what should I do?

To reliably transfer files, your python app cannot be in a loop or printing any messages. Follow the steps provided below to ensure reliable file transfers.

  1. Open the UART and issue Ctrl+C.
  2. You should now have a REPL prompt.
  3. Open the UART with Xbit VS Code.
  4. Rename main.py to something else and reboot.
  5. Now you can transfer files.
  6. Important Note: To have a reliable file transfer experience, reduce the print messages in your python app, the file transfer is over this UART so cross talk must be eliminated.

Can I use mcumgr with WSL or GitBash?

Many functions of mcumgr will not work with WSL or GitBash.  Serial communication isn't fully vetted with these terminal emulators.  When using Windows, it's best to use mcumgr in the "command prompt" app.

I'd like to lower the power usage of the MG100. What codebase should I look at to get started?

The low power sample manifest can be used to evaluate low_power modes of the Pinnacle 100:

Sample Manifest.



Why is my MG100 resetting? Can I disable the watchdog?

The attribute "mqtt_watchdog" should be set to a value appropriate to your use case. If no MQTT activity is detected for that value, then the device will reset. A value of 0 disables the watchdog feature.

What are the licensing requirements/restrictions if we decide to base our product's firmware on Canvas.


The firmware is licensed that it must run on Ezurio hardware.

Follow this link for more details:  License

How to automate MG100 Canvas Gateway Firmware configuration?

There is a way to configure the MG100 Canvas Gateway Firmware in series via an executable script, this process is covered into the following link section “Executable scripts”, please have a look and let me know if it helps :  Gateway Firmware User Guide | Ezurio - GitHub Documentation (lairdcp.github.io)

Can I leverage the Canvas Gateway/Sensor firmware even if I won't use any Device Management features?

Canvas Gateway&Sensor firmware is a mature and fully supported platform by Ezurio. Even if you don't intend to use any Device Management features, we would suggest to use the Canvas Firmware as the starting point of your development as it contains few telemetry capabilities (MQTT and BLE Ads) allowing easy deployment and management of compatible wireless sensor networks with a few simple configuration steps. Products compatible with Canvas Firmware are BT610, Pinnacle 100 and MG100.

If I'm developing my application from the Canvas Gateway Firmware on the Pinnacle/MG100, can I disable Device Management LwM2M connection and features if I'm not using them?

Canvas Firmware natively uses two distinct protocols for operation :


- MQTT for telemetry data

- LwM2M for Device Management services


Since Canvas Gateway Firmware v1.2.0 it is indeed possible to disable all Device Management LwM2M operations if you don't use them as part of your IoT application.

Where are the keys located in the lfs?

Root CA and public device cert keys:

/lfs1/tel/trust/ca.crt

/lfs1/tel/trust/cert.crt

Private/public key:

/lfs1/enc/tel/key/private.key

/lfs1/enc/tel/key/public.key

Is the TLS handshake performed by the Modem or the MCU?

The TLS handshake is handled by the stack in the nrf52820, not the HL7800.

How do I update the modem firmware on the MG100?

To update the modem firmware, follow the steps in this document:

Updating HL7800 Firmware Via UART

Firmware can be downloaded directly from Sierra Wireless.

https://source.sierrawireless.com/resources/airprime/software/hl7800-firmware/hl78xx-firmware/

After you select the updated firmware version, download the XMODEM package. Firmware updates are diff updates. The XMODEM package has the diff files used to load into the MG100 and update the HL7800. You need to know what version you are currently running and then you can select the file that goes from the current firmware to the new one.

How can you clean the Zephyr build?

If you would like to clean your Zephyr build use the "-p" switch for pristine, or when all else fails delete the build directory.

How do I launch menuconfig for Zephyr?

If you would like to launch "menuconfig" for your Zephyr build, add "-t menuconfig" to the end of your build command.

For example:

west build -p -b mg100 -d ble_gateway_dm_firmware/build/mg100 ble_gateway_dm_firmware -- -DAPP_TYPE=mqtt -t menuconfig

For more information:

Interactive Kconfig interfaces — Zephyr Project Documentation

Does MG100 Gateway support LTE Cat 6?

LTE Cat 6 is a high-speed mobile data technology mainly used in consumer devices for fast internet connectivity. Unfortunately, MG100 Gateway does not support LTE Cat 6. Instead, MG100 supports LTE-M and NB-IoT. LTE-M/NB-IoT are low-power, wide-area network technologies optimized for IoT and M2M applications that require long battery life and extended coverage.

What does the AT command AT+CPOF do, relative to the Sierra HL7800 cellular module in Laird’s cellular gateways?

In Hosted AT firmware, "AT+CPOF" will shut down the HL7800 completely. To power it back up, you need to reset it.

What is Error Code: 3, received during Laird’s MG100’s startup, indicative of?

[00:00:04.699,249] modem_hl7800: Error code: 3

[00:00:04.699,340] modem_hl7800: AT+GNSSSTOP result: -5



Those are expected errors. It’s trying to turn off the GPS even though its already off. There is nothing to worry about.

Does Laird's MG100 support SMS?

As of 4Q-2023, we do not have any examples of sending SMS and the HL7800 driver in Zephyr does not have any SMS support. Though, it could be added on your own effort.  To see what it takes to add a new API, refer to https://github.com/zephyrproject-rtos/zephyr/blob/main/include/zephyr/drivers/modem/hl7800.h.

What type of low power mode is the most power efficient for Laird's MG100?

Below are power low power modes listed from least power efficient to most power efficient:

  1. eDRX with sleep mode.
  2. eDRX with lite hibernate.
  3. eDRX with hibernate.
  4. PSM with sleep mode.
  5. PSM with lite hibernate.
  6. PSM with hibernate.
  7. Modem off (completely turn the modem off between sending data).

Is there a way to know if the MG100 is being powered by the battery?

The Canvas Gateway firmware allows the battery on the MG100 to be monitored over LwM2M. The user can know if the battery is charging or is charged, if the device is currently running off the battery or USB power, and the voltage of the battery. This is all available via LwM2M object 3.

This is all done with this zephyr module: https://github.com/CanvasDM/power_module/blob/main/src/lcz_power.c

And is implemented here:

https://github.com/CanvasDM/ble_gateway_device_manager_module/blob/main/src/lcz_ble_gw_dm_task.c#L267





How can I determine the MG100 or Pinnacle100 Modem Signal Strength?

If you would like to see the Modem's signal strength it can be viewed using the "attr get lte_rsrp" command.

Using STTY with the USB-SWD

These instructions are intended for Linux or Macintosh OS. They may work using WSL, Cigwin, or other bash style terminals in Windows although this is untested.

It may be desired to communicate with a device attached to the USB-SWD without terminal emulation, I.E. Picocom, Screen, Putty.  This can be useful for writing bash scripts, or if you're using Zephyr's "west flash" and would like a quick way to check your output.

  1. Verify you have the program "stty" available using the command "which stty", if this does not return a value you will need to install it.  Fortunately "stty" generally comes standard with Linux and MacOS.
  2. Identify your serial device.  This can be done using the command "dmesg -w" then connecting the USB-SWD.  You will see output like this (In Linux).
  3. (Optional) Assign the device name to a variable, for example "DEVICE=/dev/ttyACM0".
  4. Configure "stty" to talk with the device "stty -F $DEVICE 115200 -echo -echoe -echok"
  5. To see output from the device execute "cat $DEVICE &".  This will send serial communication from the device to Linux's standard output.  The "&" is to run this program in the background.
  6. Now press the reset button on the USB-SWD, you should see the output from your device.  In this example the Zephyr "Hello World" example has been flashed to a BT510.
  7. (Optional) if you would like to send commands back to the device you can use "echo" or add an argument to your shell, "foo() { echo -n -e "$1\r" > $DEVICE; }".  Now commands can be issued directly from the command line, for example "foo "my_command"" will send the string "my_command" to the device.

How can I access the Out-Of-Box Pinnacle or MG100 UART command line interface?

Both Pinnacle and MG100 both are programmable using Zephyr RTOS. Zephyr is essentially a kernel but compare to other RTOS it has got other software running on its code, like drivers for sensors, logs output and even a shell subsystem.

Besides providing a quick proof of concept, our out-of-box demo software are a good starting point for your own IoT cloud application.
The out-of-box software comes directly with output UART logs that provides immediate information on what is going on in the background.

Within a UART log window open via e.g a terminal software like Putty, it is possible to access a shell command line interface by simply pushing "Tab" on your keyboard as follows :

This allows to quickly show or set up multiple different parameters and can be useful for development purposes.

What is the Maximum LTE MTU size with the Pinnacle/MG100?

The max MTU is 1500 bytes but the network operator can set a lower value, it also depends on the Internet Protocol Version (IPV4,IPV6), and the protocol itself (UDP/TCP). If max MTU size is 1500 bytes then :

  • IPV4, default value = 1020 bytes
    For UDP: 8 – 1472 bytes max
    For TCP:  8 – 1460 bytes max
  • IPV6, default value = 1020 bytes
    For UDP: 8 – 1452 bytes max
    For TCP: 8 – 1440 bytes max

If user application send more than the MTU limitation, the module will display those data with several URCS (Unsolicited Result Codes).

Is MG100 compatible with Azure IoT Edge or HUB?

The MG100 is indeed suitable for working with Azure IoT Edge or HUB. However, we don't have anything in term of documentation nor example code that customers can leverage for now.

Why "out of the box" Pinnacle or MG100 UART logs sometimes comes up with Error 922 and 923?

Error 922 can happen if you try closing a socket that was already closed by the server.
Error 923 can happen if trying to send data on a socket that is already closed.

These are very common and expected errors than can happened during normal functioning. Our out of the box software are designed to properly clean up and ignore them.

Customers can use following command to increase the log level of the HL7800 driver at runtime to get more info:

attr set 201 3   <- HL7800 info log level
attr set 201 4  <- HL7800 debug log level

What means the different network states when looking at Pinnacle/MG100 "out of the box" UART logs?

Sometimes you can get a series of network state 0 and 2; in that case it means the modem cannot find any network to join:

  • Network state 0 (Not Registered) means the modem is idle.
  • Network state 2 (Searching) means the modem is searching for a network.

When a modem finds and joins a network, it issues network state such as 1(Registered, Home Network) or 5 (Registered, Roaming).

A network state 3 (Registration Denied) means either the network selected is incorrect for the IoT SIM Card, or the SIM is inactive/disabled.

Do I need to enter an APN when using my Pinnacle/MG100?

You are free to leave the APN (Access Point Name) blank, but we advise to set it up when possible as it's always safest to do so. It's also usually recommended by IoT SIM provider.

Entering an APN often helps to quickly reach proper network frequencies bands. To know exactly what APN you need to enter, please contact your SIM provider.

Entering an APN can be done through either the Pinnacle phone application or via UART with command attr set 196 "apn"

Is MG100 IP rated?

The MG100 has no IP rating.

Some customers may have a need for the MG100 main board to be mounted in an IP6x rated enclosure. In this case, Ezurio has compiled two commercial off-the-shelf (COTS) design recommendations that meet IP6x requirements using readily available components here : Application Note - MG100 IP6x COTS Housing Recommendation

How is MQTT implemented with the Pinnacle 100?

On the Pinnacle 100 MQTT is implemented in the Zephyr IP stack. The MQTT protocol managed by IP stack in Zephyr running on the nRF52840. The MQTT layer uses sockets in order to send and receive data. The HL7800 driver in Zephyr does all the work to expose socket APIs to be used by a user app or other software layers.

This approach provides a lot of flexibility. The Pinnacle 100 supports anything that the Zephyr IP stack supports.

How do I get started with Memfault?

Laird customers get instant access to Memfault's device observability platform for up to 100 devices free forever. To get started with Memfault for remote debugging, continuous monitoring, and OTA firmware updates, sign up here.

How can I diagnose and debug crashes and other issues with devices remotely without an FAE on-site?

You can use Memfault to remotely monitor the health of their devices and debug issues in both the Pinnacle 100 and MG100 Gateway designs. Laird customers get instant access to Memfault for up to 100 devices free forever.

How can I measure the performance and health of my Pinnacle 100 / MG100 devices once they're in production?

For analyzing overall performance patterns in your fleet, metrics can easily be collected using our Memfault integration with the Pinnacle 100 and Sentrius MG100. Laird customers get instant access to Memfault for up to 100 devices free forever.

Where are the instructions for the Out-Of-Box Demo for the Pinnacle 100/MG100 cellular gateways?

Everything needed to get started with our Out of the Box Demos for the Pinnacle 100 cellular modem and the MG100 cellular gateway can be found on GitHub

These links is also made available on the Pinnacle 100 Product Page in the Documentation section under Software.

A demo video for the Pinnacle 100 is also linked on the Product page for additional reference.

Do I need to build the OOB Demo to evaluate the Pinnacle100?

You do not need to build the OOB Demo on your own, if you have need to upgrade your OOB Demo version on your Pinnacle 100 modem or MG100 gateway, please use our official releases found here: https://github.com/LairdCP/Pinnacle-100-Firmware/releases.

Found at this link are several firmware file types depending on how you plan to upgrade, *.hex is for SWD while *.bin is used for BLE, UART, and HTTP over LTE. Additionally, 480-00052 is for the Pinnacle 100 and 480-00070 is for the MG100.

See the Firmware Updates section for how to upgrade over the different interfaces, BLE/UART/HTTP over LTE

To upgrade over SWD, use the JLINK USB port on the Pinnacle 100 DVK board, for the MG100 see the MG100 Hardware Guide section 5.4.4 to learn how to connect a J-Link debugger to the board for the upgrade using nRF Connect or Nordic Command Line Tools.



On Windows 10 when building firmware such as oob_demo firmware I am getting the following error: ninja: error: FindFirstFileExA(c/:/oob_demo/oob_demo/src): The filename, directory name, or volume label syntax is incorrect can you help me to correct this?

On Windows 10 when building firmware such as oob_demo firmware I am getting the following error: ninja: error: FindFirstFileExA(c/:/oob_demo/oob_demo/src): The filename, directory name, or volume label syntax is incorrect can you help me to correct this?

The ninja: error: FindFirstFileExA(c/:/oob_demo/oob_demo/src): The filename, directory name, or volume label syntax is incorrect, may be thrown if you have previously set up a Zephyr environment. This indicates ninja needs to be upgraded. If west update did not update ninja to the latest version enter choco upgrade ninja --force in cmd.exe as administrator to force the upgrade:

C:\Windows\system32>choco upgrade ninja --force

Can I use the SIM card from my phone in the Pinnacle 100 or MG100?

No, the Pinnacle 100 and the MG100 are LTE Cat-M1 or NB-IoT modems which require their own SIM card and are not compatible with the network your mobile phone uses. Customers need to source IoT SIMs specifically for LTE Cat-M1 or NB-IoT networks through the carriers directly or through an MVNO.

What IDE can I use with Zephyr for development and debug on the Pinnacle 100 or other Nordic-based modules?

We suggest using Visual Studio Code, please see the following for more information: https://github.com/LairdCP/Pinnacle_100_oob_demo/blob/master/docs/development.md

  • We suggest using Memfault for an out-of-the-box fault debugging and device observability solution. Memfault integrates seamlessly with Zephyr on the Pinnacle 100 and Sentrius MG100. Laird customers get instant access to Memfault for up to 100 devices free forever.

Which J-Links work with the Nordic-based Bluetooth modules? For example, BL65x, BL5340?

All Ezurio Nordic-based Bluetooth modules, which include the BL65x series and BL5340 modules, can be flashed with any SEGGER J-Link device which supports working with Cortex-M based devices. Here is a sample list of J-Links which will work with the Nordic based modules as of the time this FAQ was written:

SEGGER J-Link Probes and Flashers for Nordic based products:

J-Link PRO
J-Link ULTRA+
J-Link PLUS
J-Link BASE
J-Link EDU (Student Only Use)
J-Link for Cortex-M
Flasher PRO
Flasher ARM
Flasher Portable

*Note: All Ezurio Bluetooth IoT products based on Nordic's nRF52 series can also be programed with these J-Link devices, such as the BT510, BT610 and the MG100.

Is it possible to implement an HTTP server on the Pinnacle 100?

The Pinnacle 100 doesn’t support Server mode. You need a static IP address. Most cell networks will not give a public static IP address to the device, so you have no way to access it from the internet.

Resource Center

Become an Ezurio Customer to Gain Exclusive Access to Our Design Experts

  • Antenna Scans
  • Antenna selection and placement
  • Custom antenna design
  • Worldwide EMC testing / certifications
  • Embedded RF hardware / firmware design
  • Cloud architecture and integration
  • Mobile application development
  • Product & Industrial Design

Talk to an Expert

Buy Now

Distributor Part In Stock Region Buy
DigiKey 450-00011-K1 92 North America Buy Now
DigiKey 450-00011-K1 92 North America Buy Now
Mouser 450-00011-K1 9 North America Buy Now
Mouser 450-00011-K1 9 North America Buy Now
Avnet 450-00011-K1 0 North America Buy Now
Future Electronics 450-00011-K1 0 North America Buy Now
Future Electronics 450-00011-K1 0 North America Buy Now
Mouser 450-00038-K1 10 North America Buy Now
Mouser 450-00038-K1 10 North America Buy Now
DigiKey 450-00038-K1 6 North America Buy Now
DigiKey 450-00038-K1 6 North America Buy Now
Avnet 450-00038-K1 0 North America Buy Now
Future Electronics 450-00038-K1 0 North America Buy Now
Future Electronics 450-00038-K1 0 North America Buy Now
Arrow Electronics 450-00039-K1 19 North America Buy Now
DigiKey 450-00039-K1 5 North America Buy Now
DigiKey 450-00039-K1 5 North America Buy Now
Avnet 450-00039-K1 0 North America Buy Now
Future Electronics 450-00039-K1 0 North America Buy Now
Future Electronics 450-00039-K1 0 North America Buy Now
Mouser 450-00039-K1 0 North America Buy Now
DigiKey 450-00054-K1 151 North America Buy Now
DigiKey 450-00054-K1 151 North America Buy Now
Mouser 450-00054-K1 35 North America Buy Now
Mouser 450-00054-K1 35 North America Buy Now
Arrow Electronics 450-00054-K1 10 North America Buy Now
Avnet 450-00054-K1 0 North America Buy Now
Future Electronics 450-00054-K1 0 North America Buy Now
Mouser 453-00062-K1 13 North America Buy Now
DigiKey 453-00062-K1 10 North America Buy Now
Mouser 453-00062-K1 9 North America Buy Now
DigiKey 453-00062-K1 6 North America Buy Now
Avnet 453-00062-K1 0 North America Buy Now
Future Electronics 453-00062-K1 0 North America Buy Now

Distributors

Distributor Phone Number Region Website
Arrow Electronics 1-855-326-4757
+44 2039 365486
APAC, North America, South America, EMEA Website
Avnet 1-480-643-2000
+44 1628 512900
APAC, North America, South America, EMEA Website
Braemac Australia, New Zealand, South East Asia +61 2 9550 6600
+64 9 477 2148
APAC Website
Cal-Chip Connect 1-215-942-8900
North America Website
DigiKey 1-800-344-4539
North America, South America, APAC, EMEA Website
EBV Elektronik EMEA Website
Farlink Technology China, Hong Kong +86 13266922199
APAC Website
Farnell 1-800-936-198
+44 3447 11 11 22
EMEA Website
Future Electronics 1-800-675-1619
1-514-428-8470
North America, South America, APAC, EMEA Website
Glyn +49-6126-590-0
EMEA Website
Hy-Line Germany Only +49 89 614 503 0
EMEA Website
Jetronic China, Hong Kong and Taiwan 852-27636806
APAC Website
Laird Connectivity 1-847-839-6925
+44 1628 858941
North America, South America, APAC, EMEA Website
M2M Germany +49-6081-587386-0
EMEA Website
Martinsson +46 8 7440300
EMEA Website
McCoy South East Asia +65 6515 2988
APAC Website
Mouser 1-800-346-6873
+44 1494 427500
North America, South America, APAC, EMEA Website
RS Components +852-2421-9898
+44 3457-201201
North America, South America, APAC, EMEA Website
Ryoyo Japan +81-3-3543-7711
APAC Website
Solsta UK Only +44 (0) 1527 830800
EMEA Website
Supreme Components International India, South East Asia +65 6848-1178
APAC Website
Symmetry Electronics 1-866-506-8829
North America Website
Tekdis Australia and New Zealand +61 3 8669 1210
APAC Website
Telsys +972 3 7657666
EMEA Website
WPG +44 1628 958460
EMEA Website
