PRM240-R2

No. The PRM240-R2 operates on our Server-Client FlexRF™ FHSS protocol (up to 230 kbps) rather than the legacy AC4x90 protocol. Legacy networks cannot communicate directly over-the-air with PRM nodes, and host software/framing must be updated to match the PRM protocol. The Peer-to-Peer protocol supported on the AC4790 is not supported.

For additional information please reference the User Guide - PRM240-R2.

No. The PRM240-R2 uses a different physical footprint and interface pinout than the AC4490 series. While it is a direct drop-in replacement for legacy LT1110/PRM240 pluggable U.FL designs, AC4490 customer layouts will require board-level hardware redesign or interface adaptation. Please reference the PRM240-R2 Datasheet for additional information.

Ezurio has released the PRM240-R2  proprietary 900 MHz FHSS module publicly to provide an available 900 MHz option for customers affected by the AC4x90 EOL who need to maintain supply for their applications.

The PRM240-R2 features an onboard U.FL connector for external antenna integration. Modular certifications cover a specific list of approved antennas. Using high-gain directional antennas (such as Yagi antennas) or custom antenna setups outside the approved list will require end-system regulatory testing. Certification documentation and antenna lists are available in section 8 of the PRM240-R2 Datasheet.

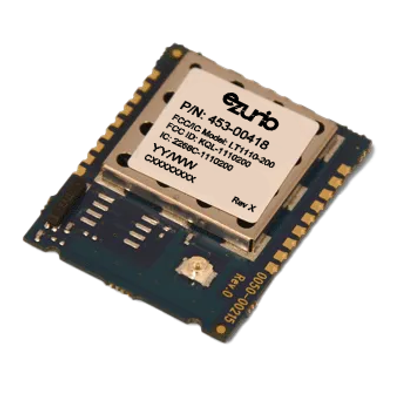

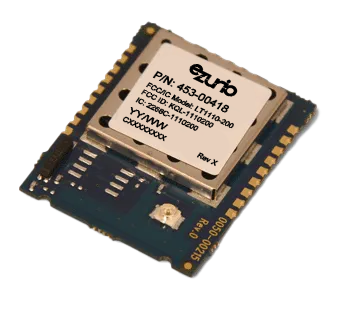

No. The PRM240-R2 is available exclusively as a pluggable module with an onboard U.FL connector (Part Number: 453-00418). While it is a direct drop-in replacement for pluggable U.FL LT1110/PRM240 designs, legacy variants with integrated chip/trace antennas or surface-mount (SMD) packaging are not directly replaced by this part number.

For a full list of antennas certified with the PRM240-R2 please reference section 8.2 of the PRM240-R2 Datasheet.

To ensure seamless design support, Development Kits and sample hardware are allocated directly through our sales team. Please reach out to your Ezurio Sales Representative or submit a request through our Sales & Product Information Portal on the Contact Us page of our Website, to request a DVK and sample units for your qualification process.

No. The PRM240-R2 utilizes the same robust Server-Client FHSS wireless protocol (up to 230 kbps RF data rate). It supports the standard UART interface and configures seamlessly via Ezurio’s Configuration and Test Utility Software, as explained in the Configuration and Test Utility Software  User Guide- RAMP Modules

The PRM240-R2 carries updated regulatory certifications, including FCC modular approval. Depending on your end-system integration, you may be able to leverage our modular grant filings to simplify your compliance updates. Complete certification details and test reports are available. Contact support@ezurio.com for details.

Yes, for pluggable U.FL configurations. The PRM240-R2 (Part Number: 453-00418) features the exact same pluggable form factor (4 mm x 39 mm x 25 mm) and pinout as the legacy pluggable LT1110/PRM240 U.FL variants. If your design utilizes an surface-mount (SMD) or integrated trace/chip antenna variant, please contact our engineering team to review pinout and mechanical adaptation options for the pluggable U.FL unit.

The PRM240-R2 is an updated, hardware-compatible redesign of our legacy LT1110 and PRM240 proprietary 915 MHz FHSS modules. It provides extended supply availability and updated regulatory certifications for customers with existing 915 MHz FlexRF™ designs.
